The Node style sensor is a small form factor sensor designed for environment monitoring and control in commercial and institutional buildings. The product supports both Modbus and Bacnet on the RS485port for direct digital readings over the network on all models. Also has transducer outputs configurable as either 0-10V or 4-20ma signals.
The “Air Lab” all-in-one sensor is a total solution for measuring the indoor air quality and environment. The sensor is used widely in schools, hospitals and office buildings for demand ventilation and general air quality measurement.
There are many sensor elements in the “Air Lab” but the main attraction is the air particle sensor which can measure both the number of air particles and their density in several bin sizes. Supporting sensors include a C02 sensor, temperature, humidity, occupancy sensor, and TVOC sensor…. pretty much all the parameters you could ask for. The AirLab gives you confidence your building occupants are comfortable and breathing clean air.
The sensor integrates well with existing building automation systems or can operate stand alone as a general air quality monitor. Wireless communications over Wifi is supported using Bacnet IP or Modbus TCP protocols. The sensor also supports wired communications over RS485 twisted pair using BACnet MSTP or Modbus RTU protocols.
Outdoor weather station with humidity,tempeature and light level sensors helps with free cooling strategies and other energy saving routines.The sensor communicates over both Ethrnet and RS485,usingBoth Bacnet and Modbus protocols so there are many ways to integrate into system.
The PM2.5/10 Particle Counter is designed for environmental monitoring in industrial, commercial and institutional buildings,which provides accurate readings of particle counts in five important sizes, 0.5μm,1.0μm,2.5μm,4μm and 10μm.
Duct temperature and humidity sensor / transmitter well suited to all types of building automation and environmental monitoring applications. The transducer can inteface to the automation system either with an analog signals or digitally over the RS485 network using either …

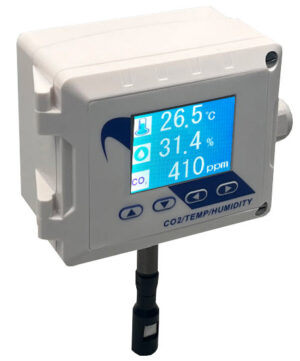

The CO2 sensor with Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor C02, temperature and humidity monitoring. The modbus interface provides easy setup and integration into large systems.Supports Modbus RTU over both the Ethernet port and the RS485 port,supports Bacnet over both the Ethernet port (IP) and the RS485 port (MSTP).
