Bacnet和modbus I / O模块

T3通用模块为楼宇自动化系统增加了输入/输出扩展空间。集成商经常告诉我们他们正在赢得更多项目，因为这些设备具有优异的价格和功能。

产品亮点：

Surge-protected Universal Inputs with 12-bit resolution

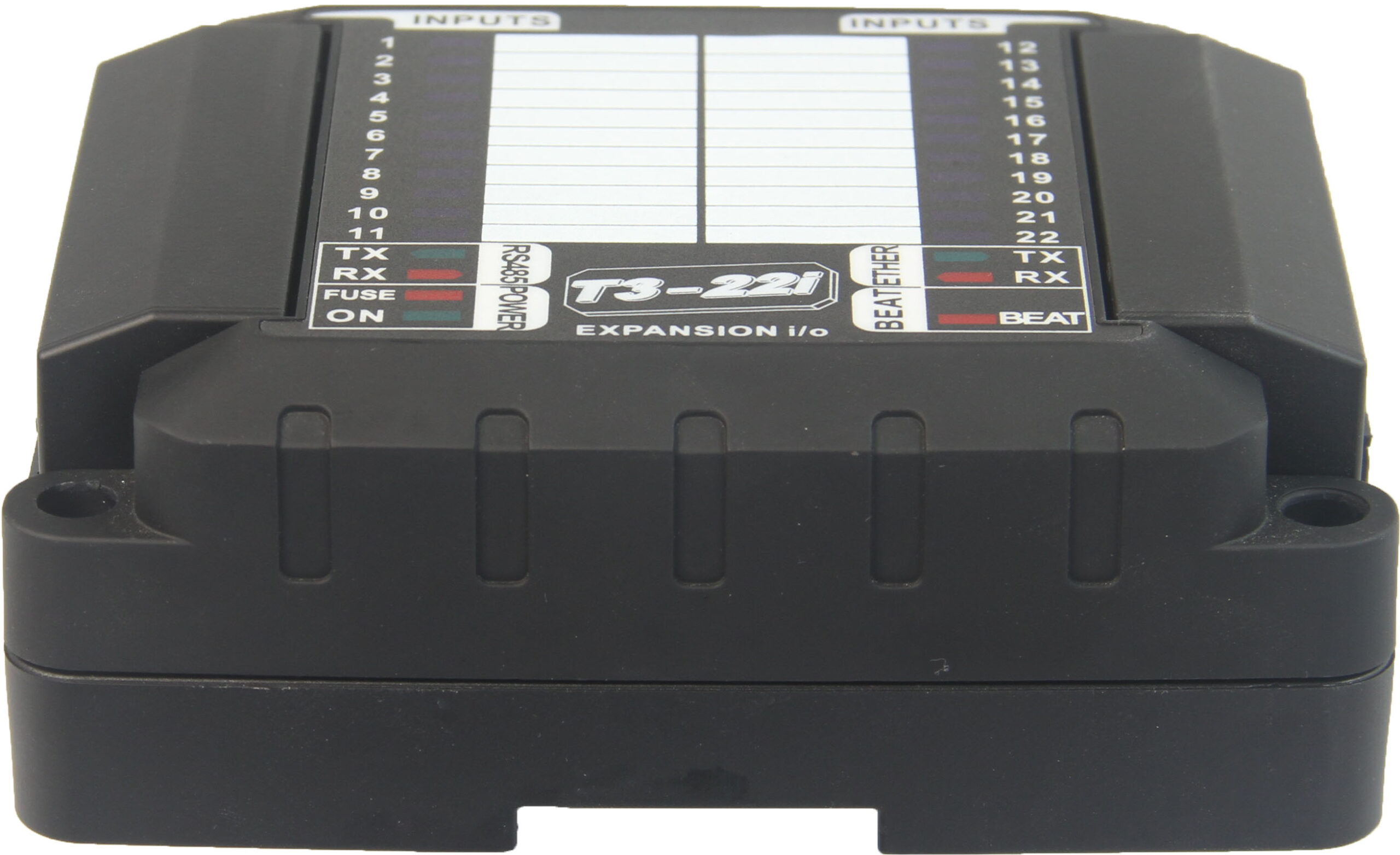

UL listed ABS enclosure with rubberized texture creates a high end feel

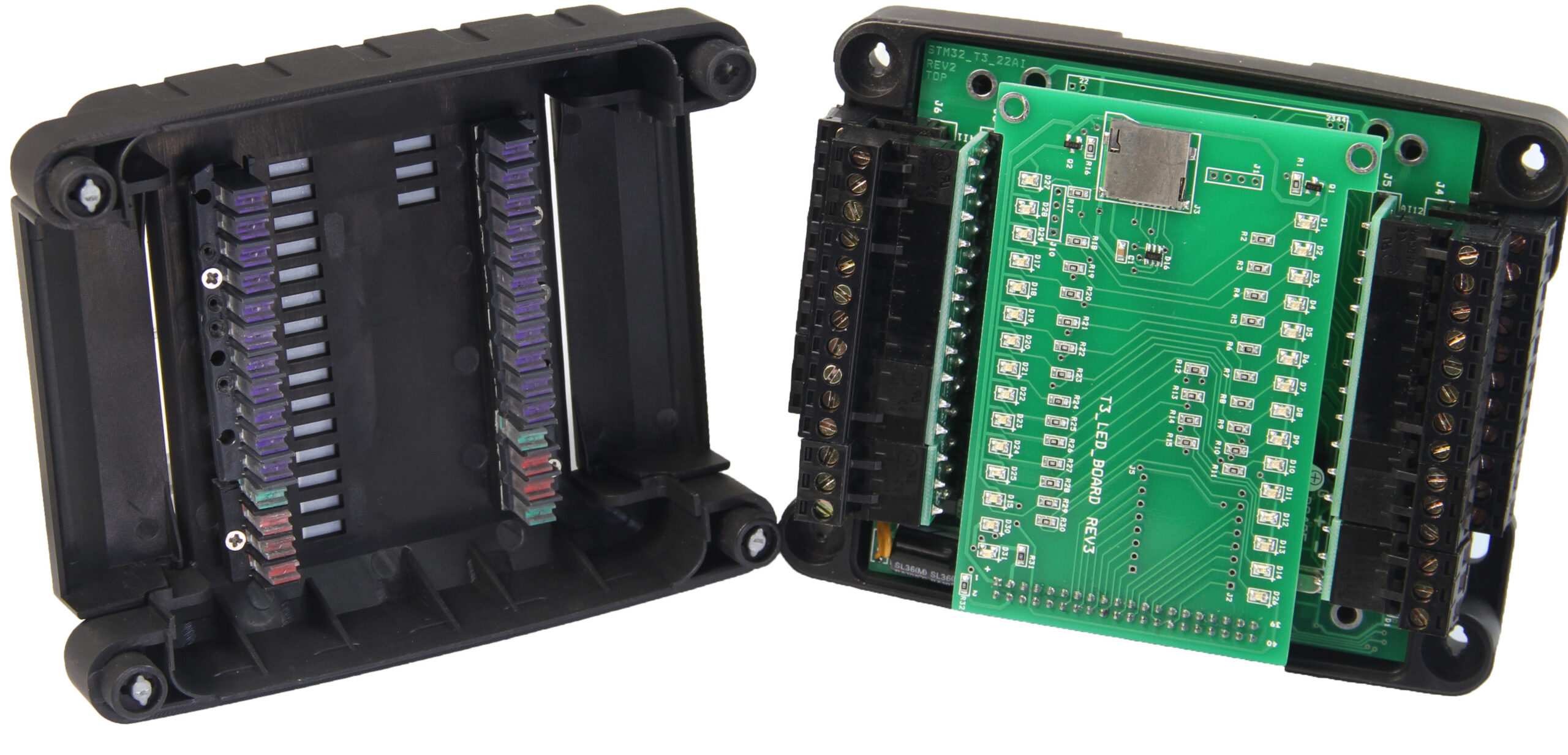

UL listed relays, terminal blocks and PCBs
Ethernet Protocols: Bacnet IP and Modbut IP
RS485 protocols: Bacnet over MSTP and Modbus RTU
Software configure the I/O ranges with the free T3000 software or by writing to the registers with your own software
Each output has a hand-off-auto switch for easy overrides

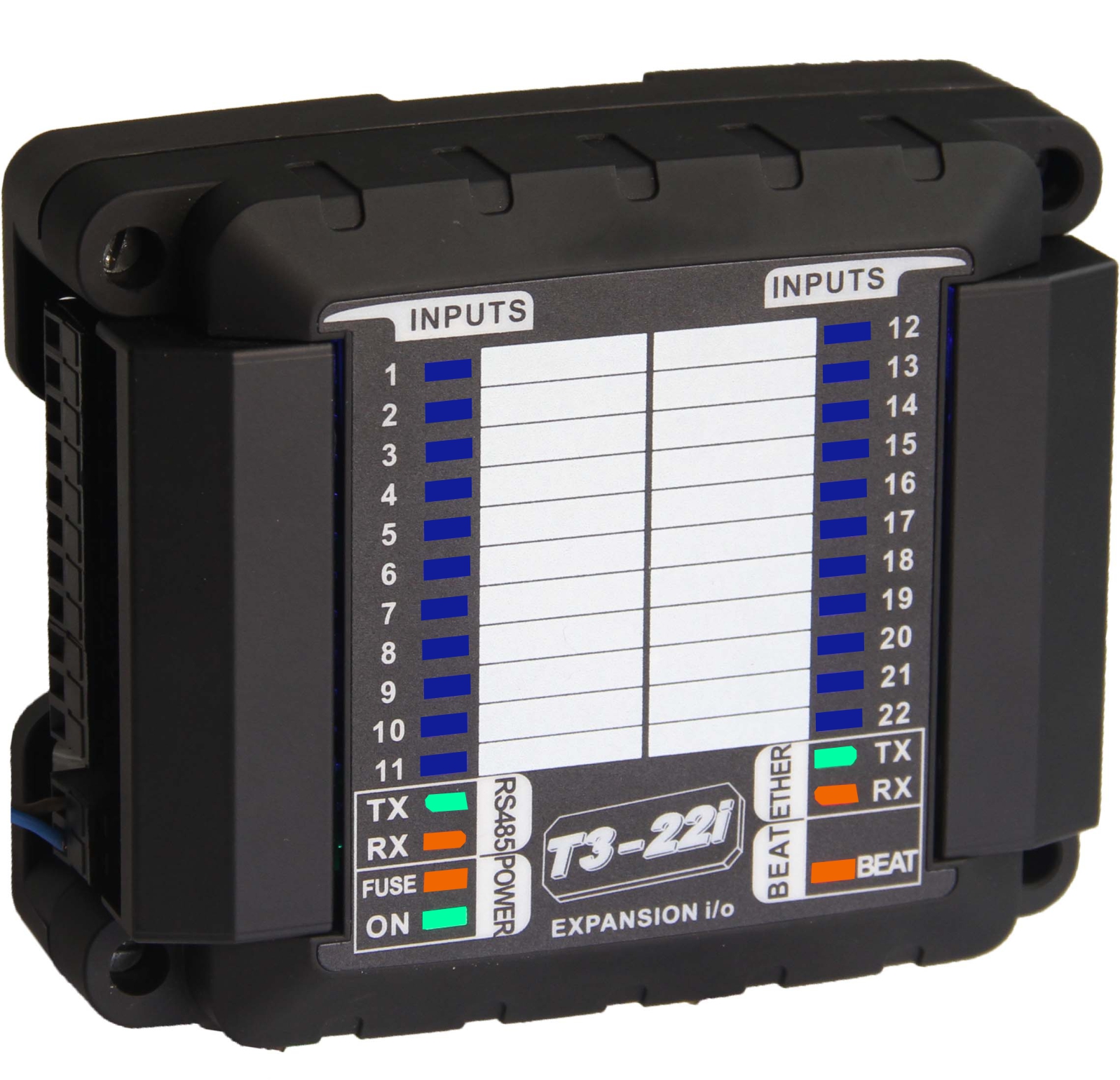

Plenty of LEDs show the status of each i/o and all communications ports

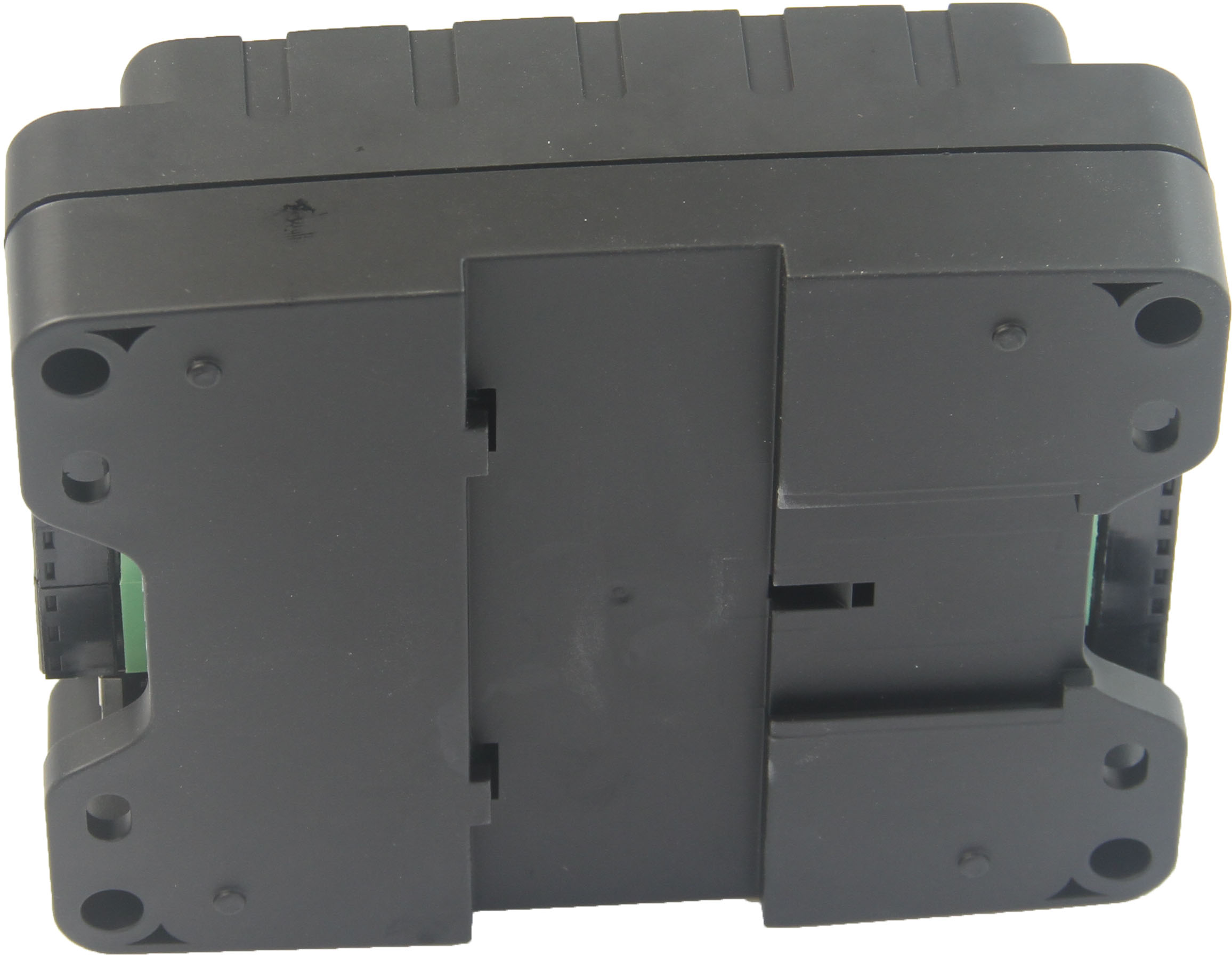

DIN rail mount or use the screw tabs for direct mounting onto a back panel

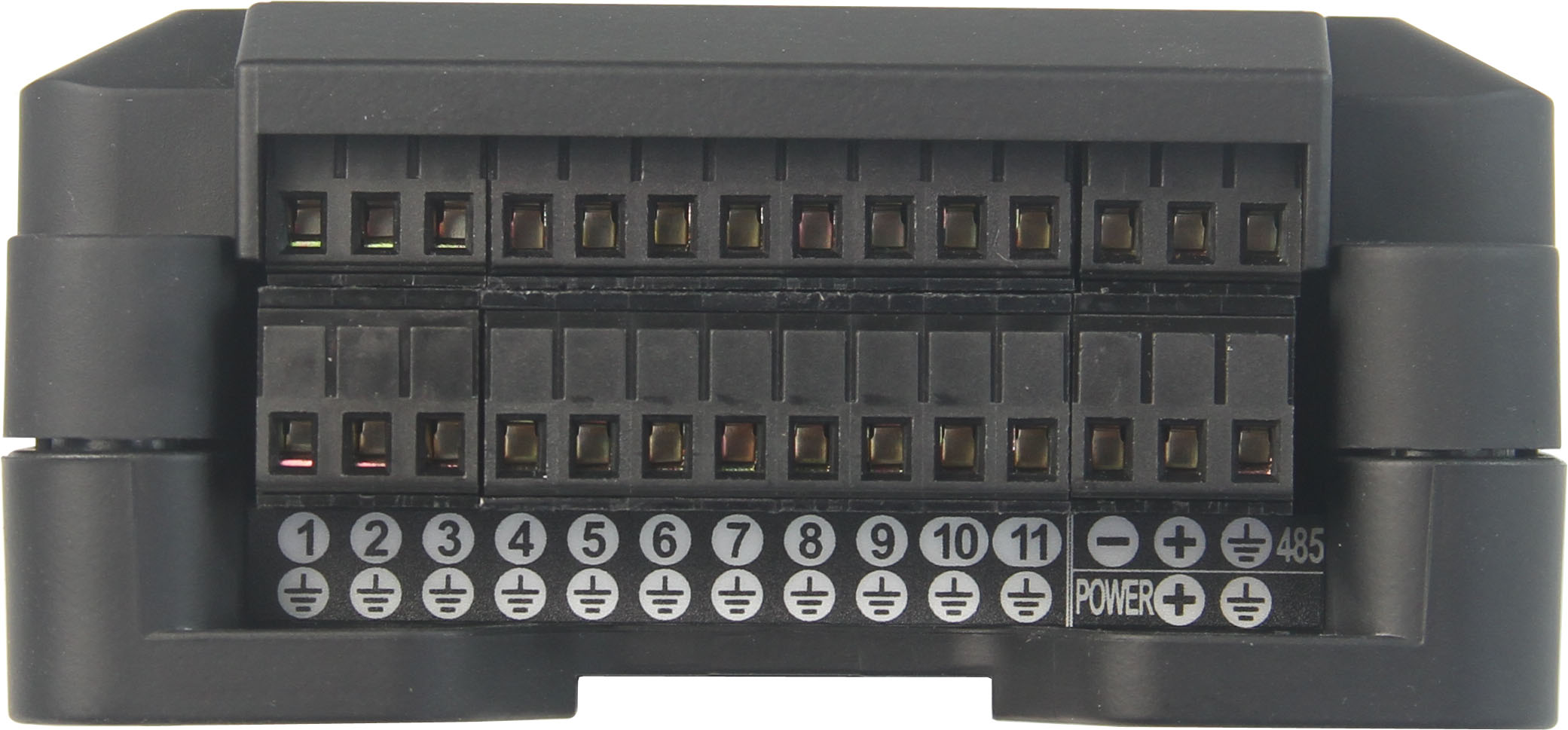

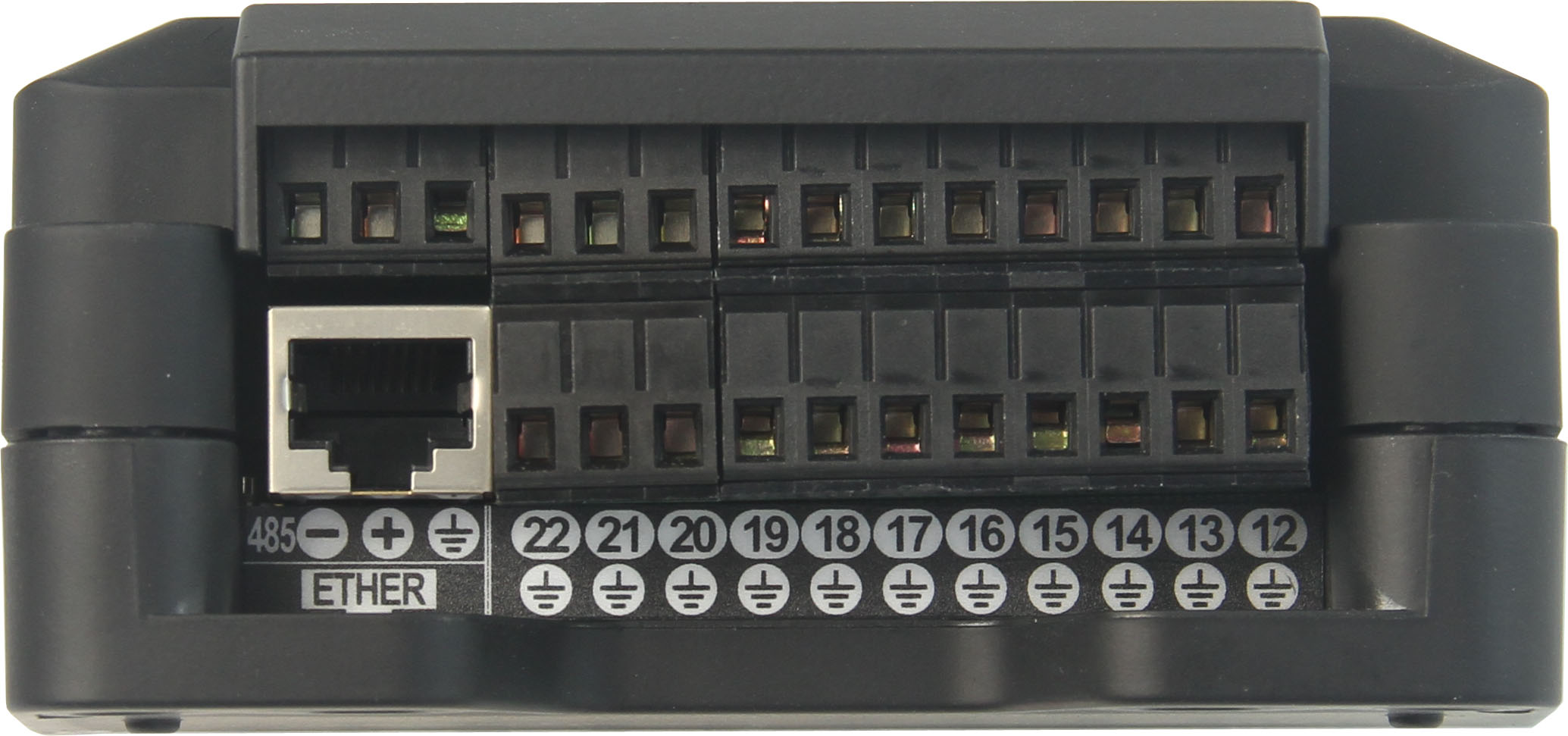

Each I/O as well as the RS485 connections a separate screw terminal
Source code for the modules is available
The RS485 port has separate upstream and a downstream connectors to make troubleshooting easier
T3000 front end is license free and open source
Connect over Ethernet, Wifi, RS485.

小册子PDF Software 源代码 PicStatement UL T3-22iArtwork

$149.00 - $161.00

添加到心愿单

零件号： N / A 类别：扩展I / O

描述

The Bacnet and modbus I/O modules work well with Seimens, Reliable, Delta, KMD, Tridium, etc.T3E-22i and T3E-886 support both Bacnet and Modbus over both RS485 and the ethernet ports.All settings are available as Bacnet objects and Modbus registers.

零件编号方案：

注意：These are not routers, for general routing applications see the T3-BB controllers

Work with: Terminal shorting bar

其他信息

重量	N / A

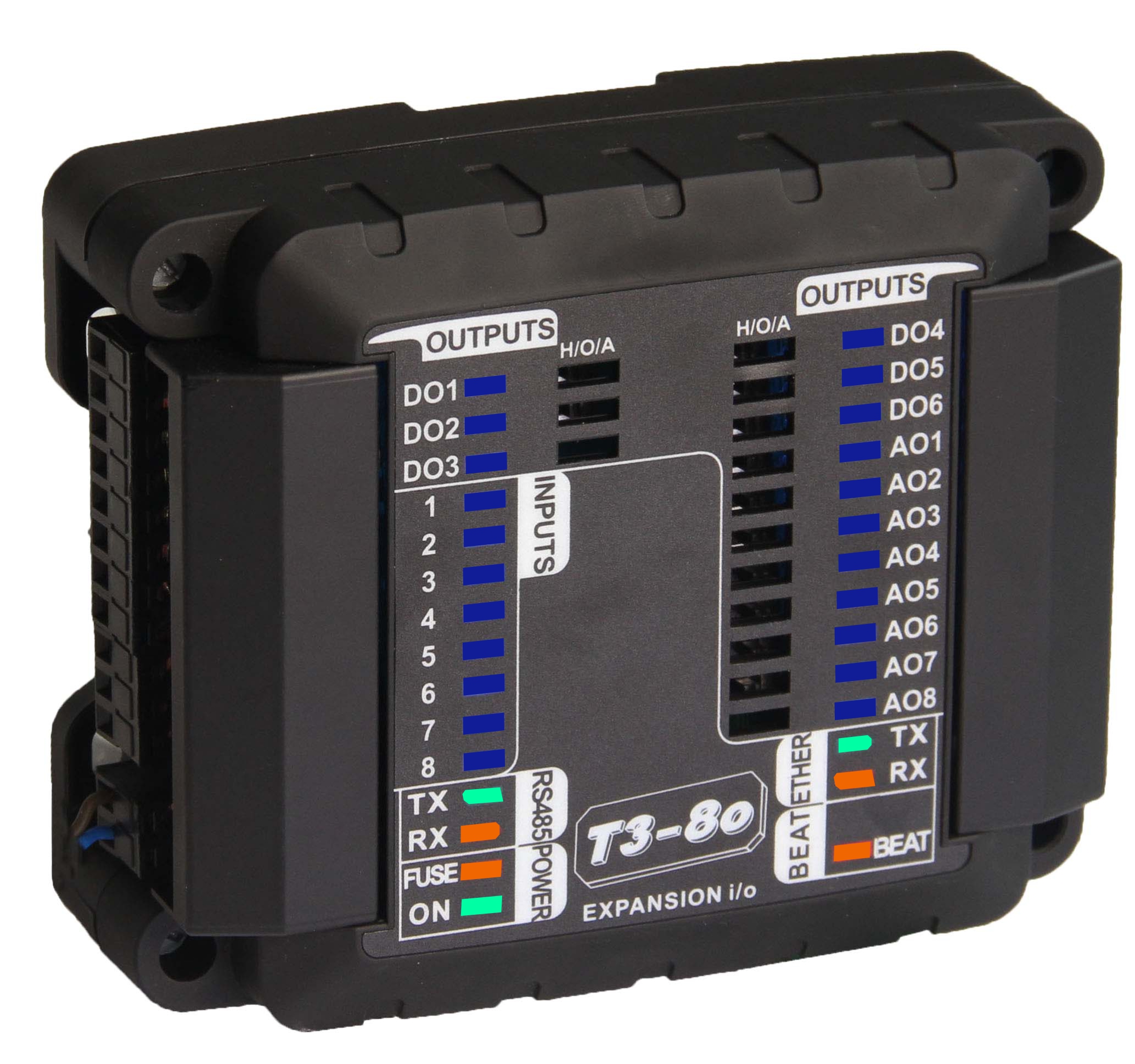

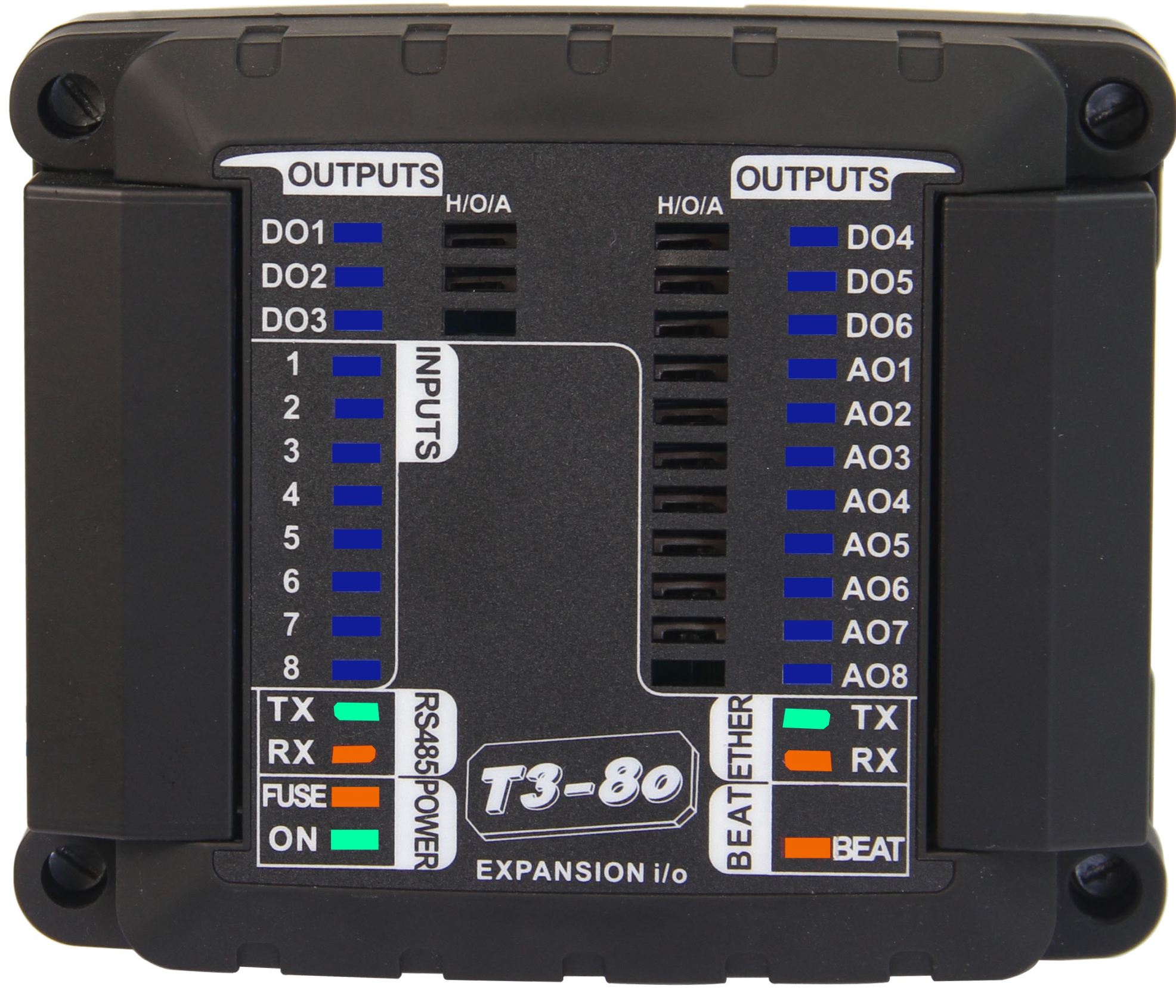

I/O module type	22 universal inputs, 8UI, 8AO, 6Relays
Wireless	WIFI
