继电器板和变压器

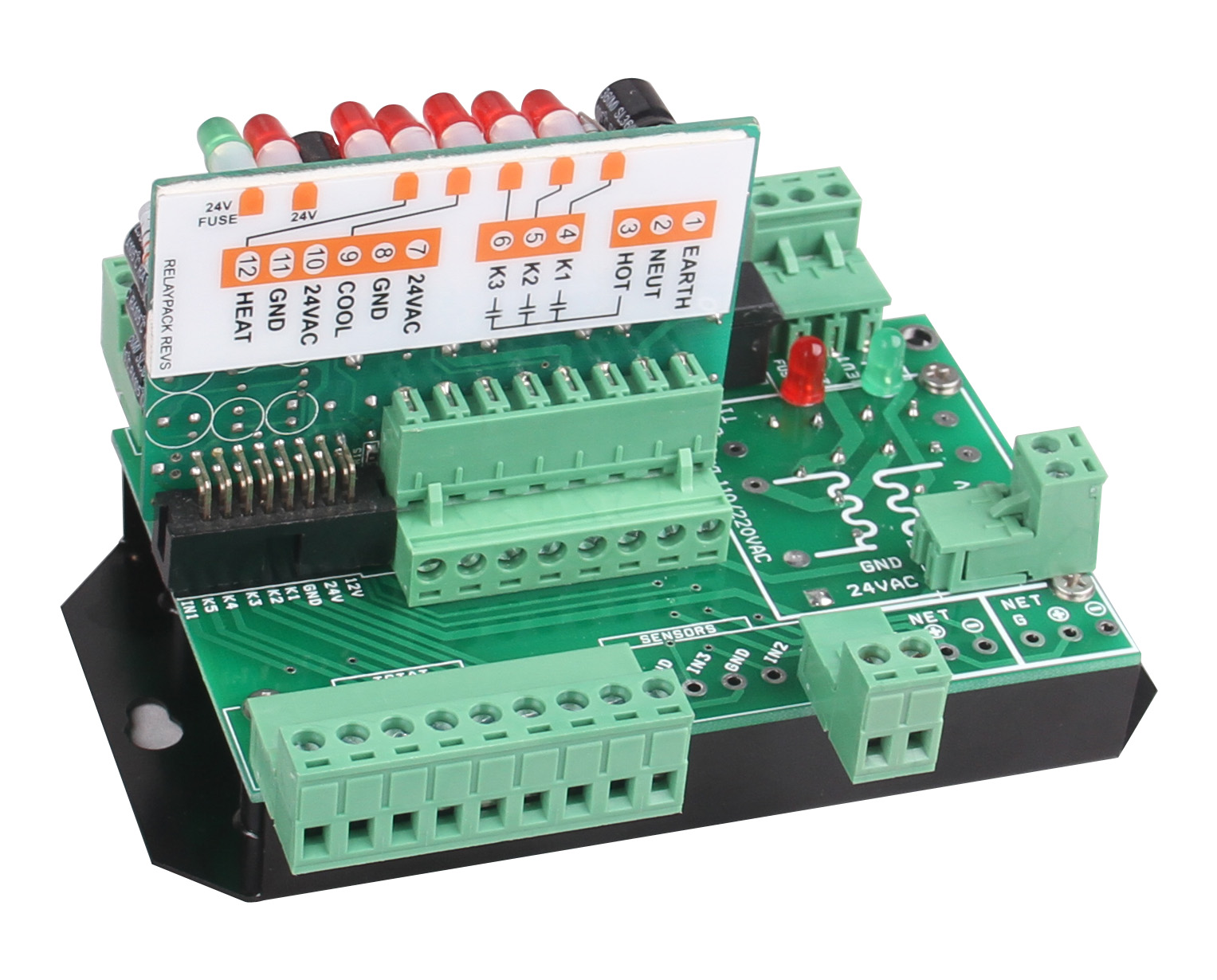

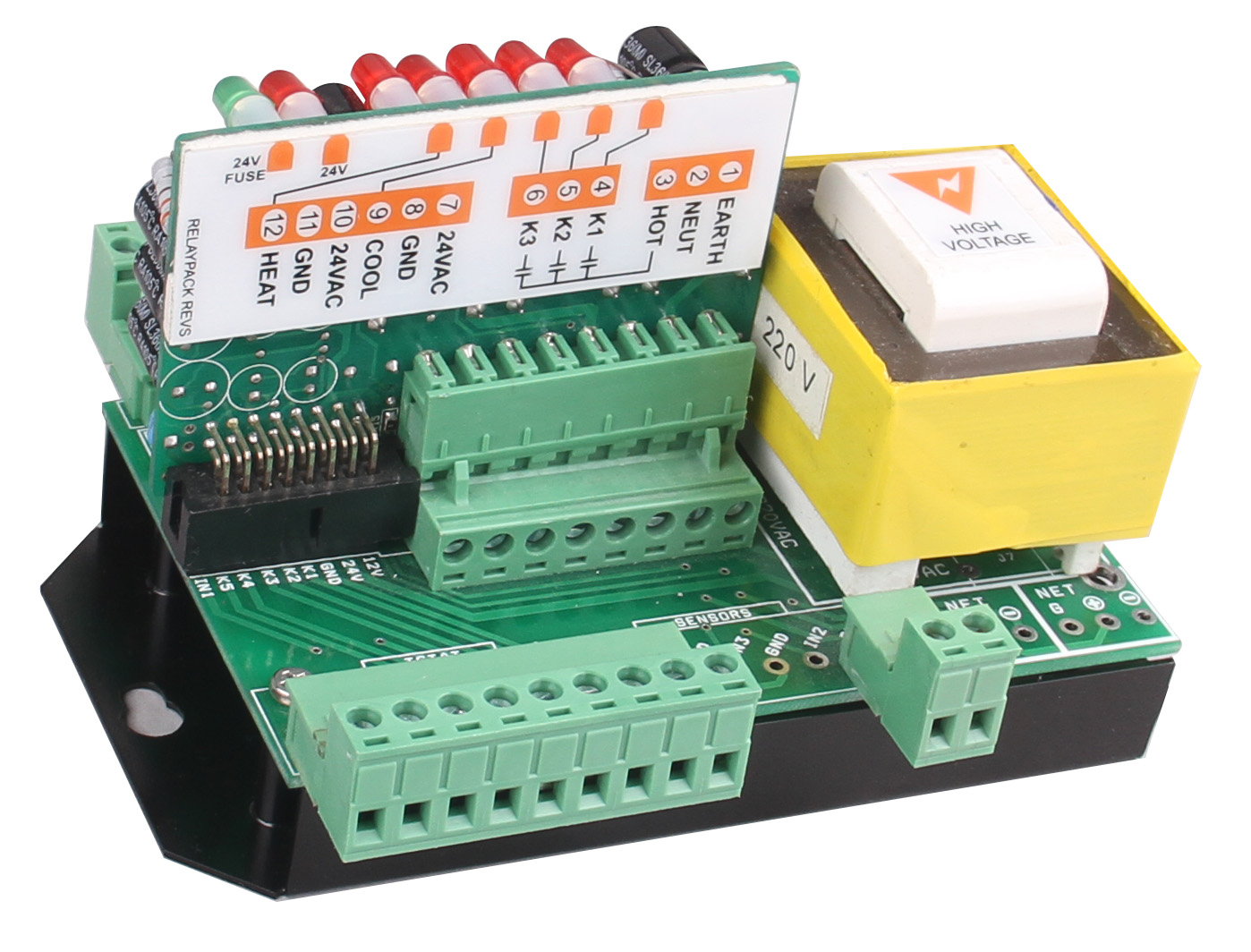

The Relay Board comes in two versions, one with transformer and one without. It features an area to add your own label. The coils are very low power, requiring less than 30ma at 24VAC. The SPST relay handles 12A at 125VAC and 6A at 250VAC. Each relay has a status LED.

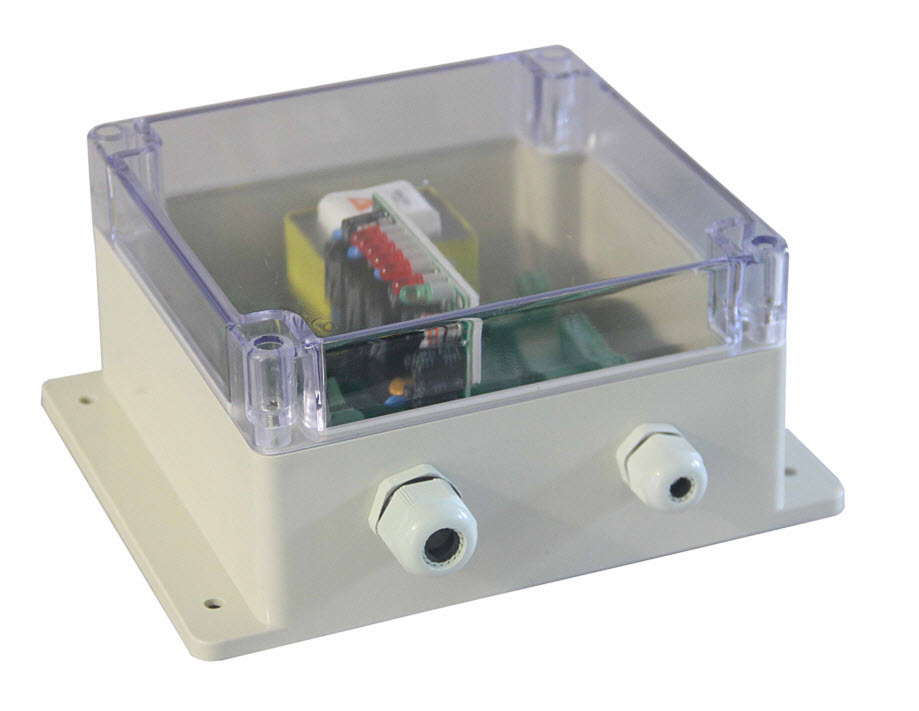

Relay board and 24V/18VA former for stat & valve, 3 relays @ 12A/125VAC, 6A/250VAC, 2 relays @ 1A/110VAC, it includes a plastic box, 24VAC 30ma coil.



This versatile Relay Board and Transformer setup delivers reliable performance with low-power coils. It features high-rated relays and convenient labeling options for easy customization. With transformer and non-transformer versions available, it offers flexibility for different control needs. Status LEDs and a durable plastic enclosure ensure reliable, efficient performance in various applications
