High-accuracy Split Core Current Transformer for power monitoring”

分体式电流互感器，330mV 输出

这款330mV交流分体式电流互感器可轻松卡入现有线路，无需重新布线。它已通过UL认证，输出0-330mV交流电，兼容T3-6CT和Watt Node电表。</p>

产品亮点：

      • Primary Current: models from 1A up to 1000A available
      • Full scale output: 330mVac, compatible with industry standard power meters

    <

li>Current

    • Ratio: 3

000:1<

    li>Insulation Voltage: 600Vac

  • Maximum Primary Voltage: 5000VAC (Insulated Conductor)
  • Operating Temperature: -15C to 60C
  • Frequency Range: 50-400Hz
  • Leads: 1m / ~ 3 feet, UL 1015, 2 conductor 0.34 mm2(22AWG)
  • UL and CE recognized, Rohs compliant
  • Output and leads can be customized
  • Secure locking hinge provides repeatable readings
  • 体积小，成本低
  • Public information contained in UL Solutions file number E341727 can be viewed using the following link.https://ig.ulprospector.comen/profile?e=3561583
小册子PDF 证书

分享这个产品

$2.80 - $12.70

添加到心愿单
零件号： N / A 类别：

可用选项：

描述

Split Core Current Transformer

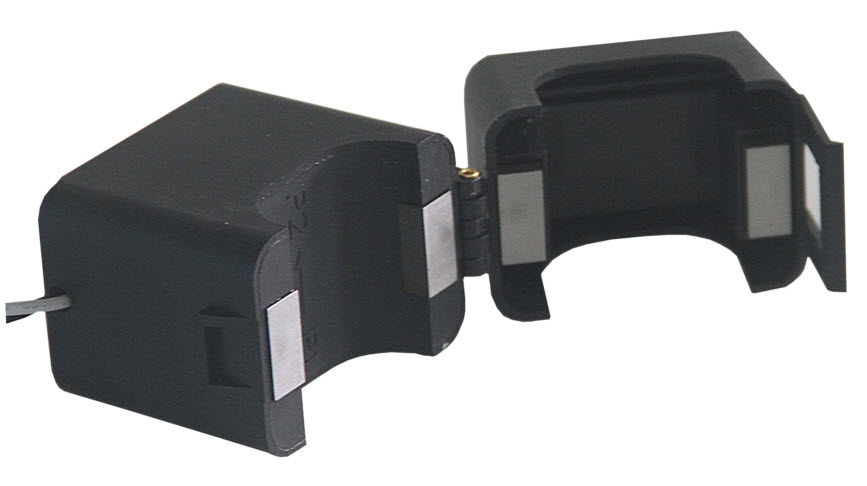

这 Split Core Current Transformer (CT) 330mV AC series is the perfect solution for easy installation on existing electrical wiring. Its snap-on design allows you to install the sensor around conductors without rewiring or interrupting your current power cabling. UL listed and CE recognized, this CT ensures safety and reliability in diverse electrical applications.

主要特点

  • Primary Current Range: Models available from 1A up to 1000A to suit various applications.

  • Full-Scale Output: 330mV AC, compatible with industry-standard power meters such as T3-6CT and Watt Node.

  • Current Ratio: 3000:1 for accurate measurement and monitoring.

  • Insulation & Voltage: 600VAC insulation voltage with a maximum primary voltage of 5000VAC (insulated conductor).

  • Operating Temperature: -15°C to 60°C, suitable for most industrial and commercial environments.

  • Frequency Range: 50–400Hz for versatile use across systems.

  • Leads: 1m (~3 feet), UL 1015, 2-conductor 0.34 mm² (22AWG), with options for customization.

  • Compliance: UL and CE recognized, RoHS compliant.

Why Choose Our Split Core Current Transformer?

This is designed for convenience, accuracy, and safety. Its low-voltage 330mV AC output provides a proportional signal to the current flow, ideal for use with power meters and controllers. The flexible design, wide current range, and industry-standard compliance make it a reliable choice for engineers, contractors, and system integrators.

  • Snap-on design for easy retrofitting

  • Compatible with T3-6CT, Watt Node, and other power meters

  • Customizable leads and output for specific project requirements

  • UL and CE recognized, RoHS compliant

Upgrade your monitoring and measurement systems with a Split Core Current Transformer that combines precision, flexibility, and safety.

尺寸：

"</a

零件编号方案：

"</a

 适用于：
单相功率计

其他信息

重量 0.55 公斤
初级电流

1A, 5A, 1000A, 100A, 10A, 150A, 200A, 20A, 250A, 300A, 400A, 500A, 50A, 600A, 75A, 800A
