USB转RS485转换器

USB转RS485转换器适用于长距离传输较小的数据块，许多节点共享两条线路总线。

产品亮点：

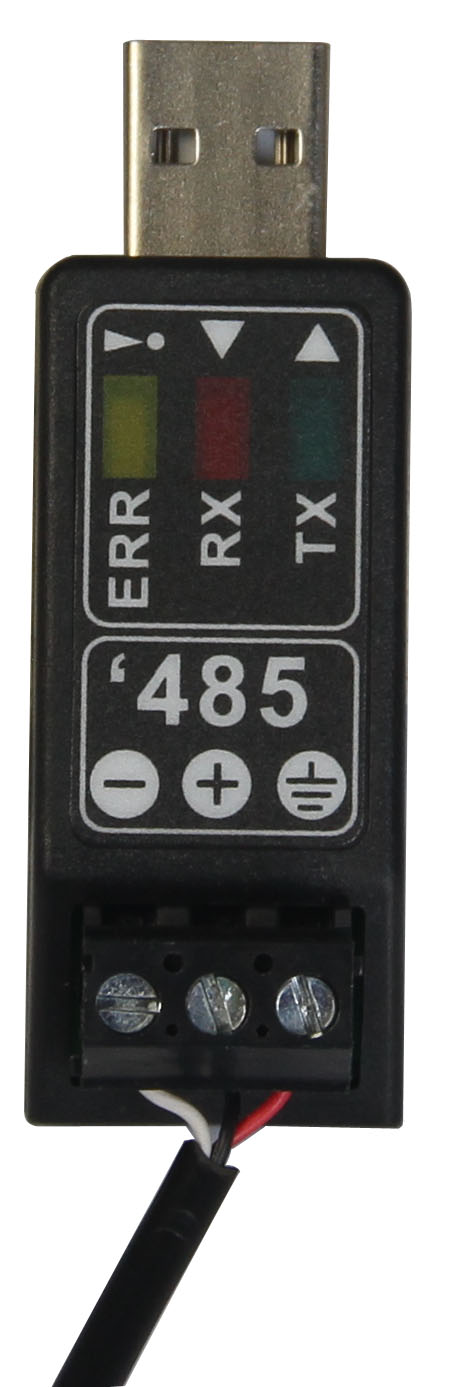

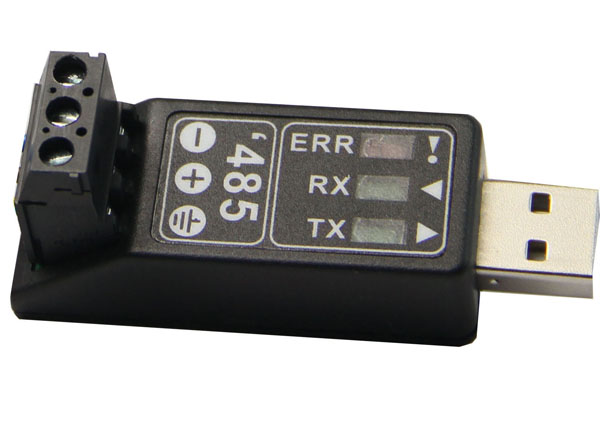

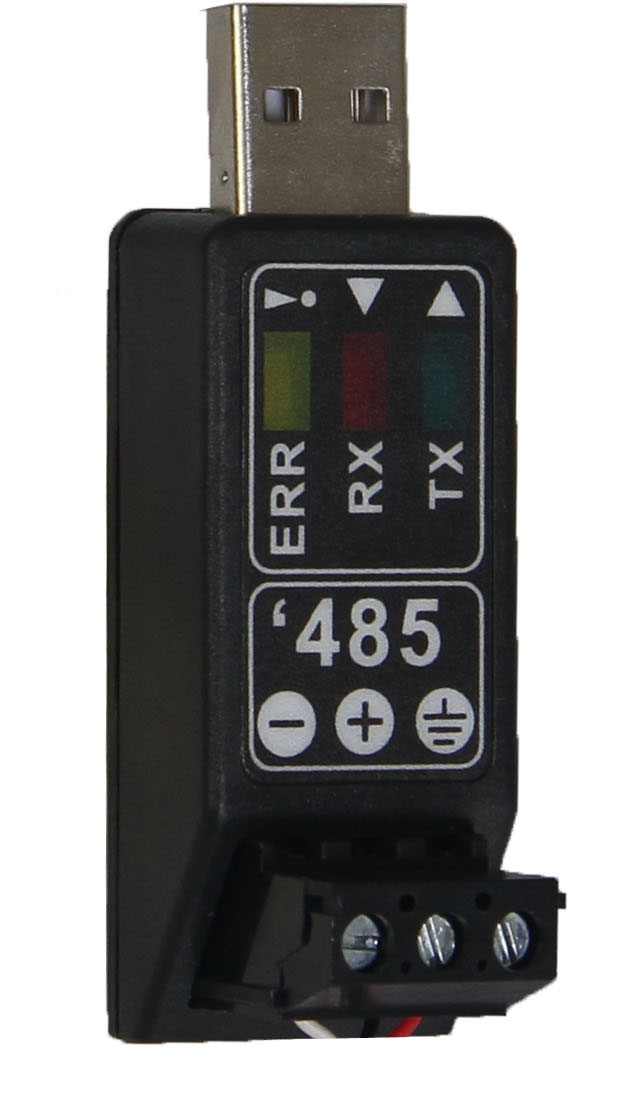

  • RX and TX LEDs speeds up debugging, shows all communications activity.
  • Ground Loop LED lights up when any of the nodes has 24VAC and GND crossed over.
  • Self resetting fuses protect the PC from wiring mistakes in the field.
  • Uses standard FTDI chip(FT232RL) and windows drivers for any protocol and any baud rate.
  • Low cost converters, cheap enough to install & leave everywhere you might need them.
  • USB powered, no separate power supply required.

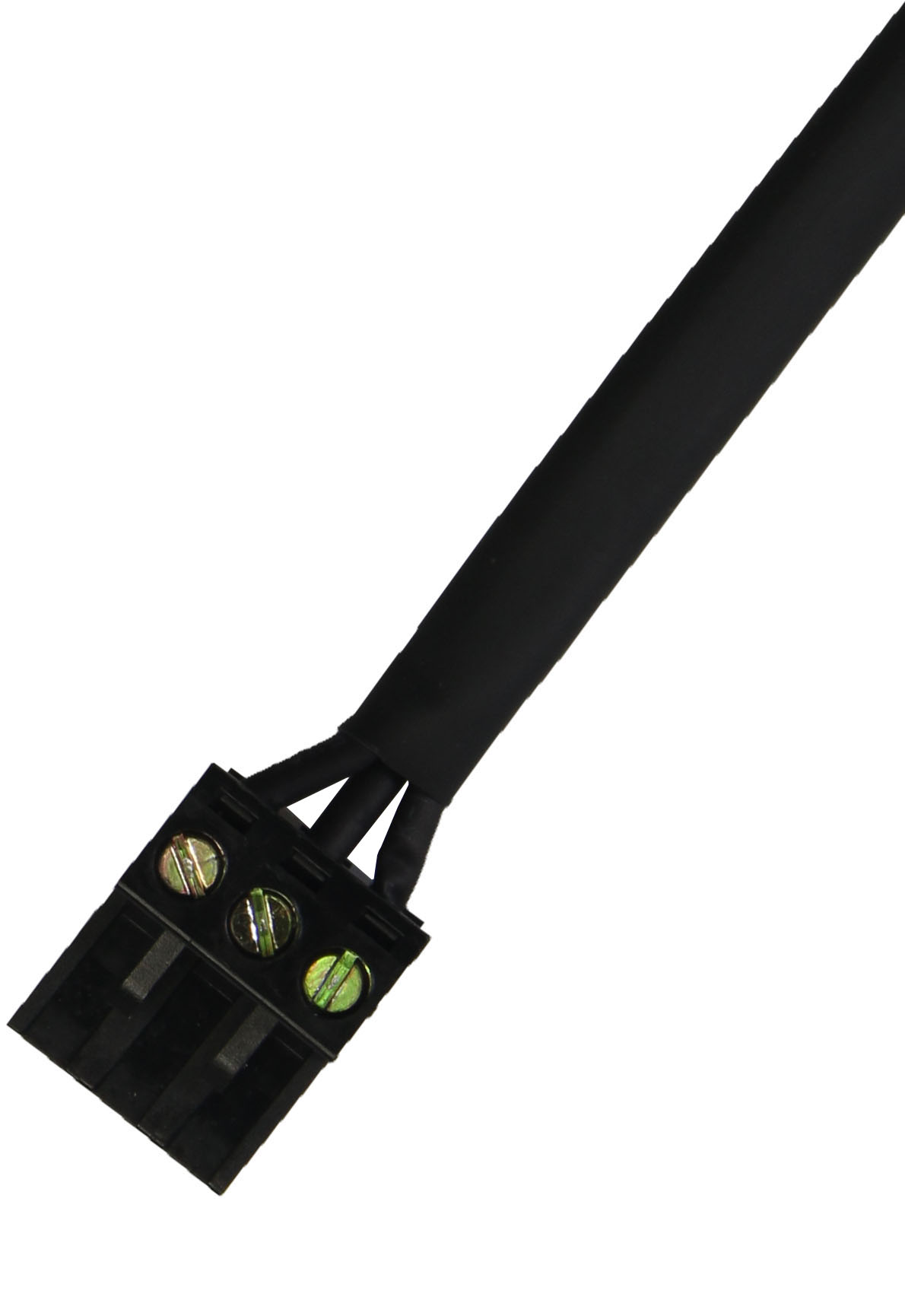

  • Three pin terminal for connecting to network cables

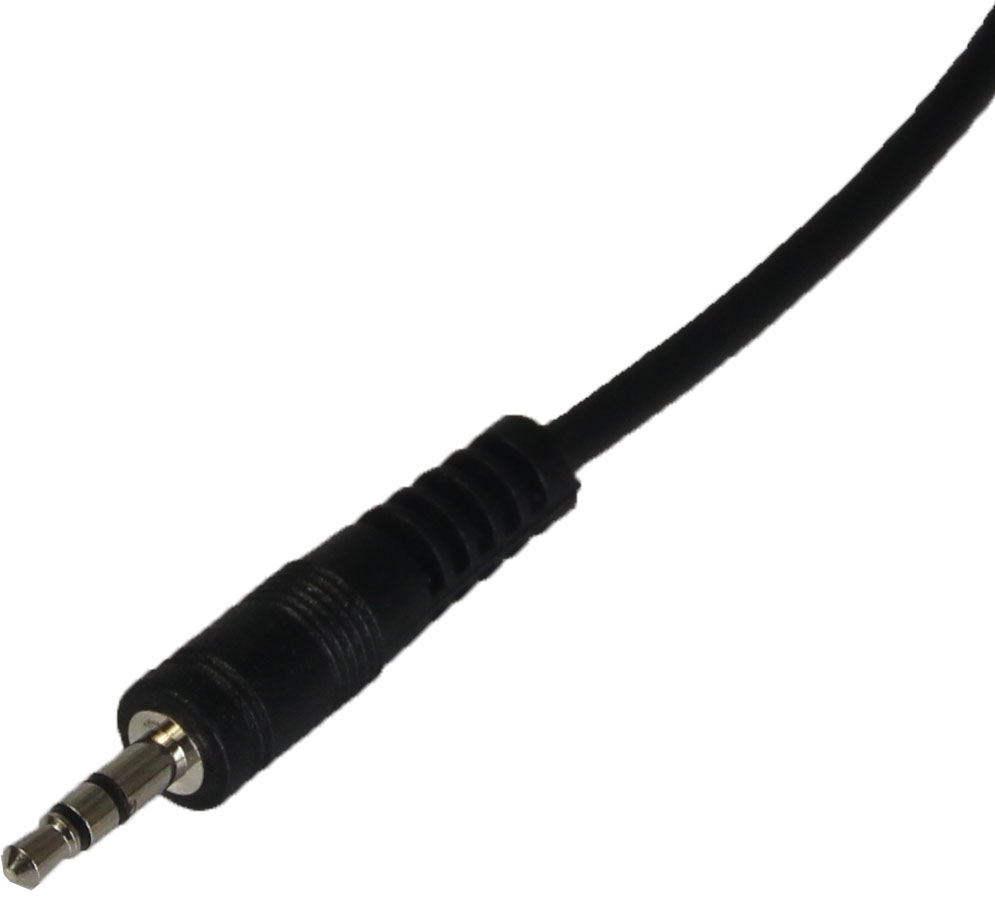

  • Auxiliary jack for connecting to RJ style jacks on the bottom of many items on this site: Tstat8, HUM-R and AQ-1.
USB Com port driver 小册子PDF

分享这个产品

$12.00

股票 ：

库存 57 件

添加到心愿单
零件号： USB-RS485 类别：

描述

This device is one of the lowest cost units on the market yet has some features that make it stand out, specifically the three status LEDs which show incoming and outgoing data activity.There’s also a yellow ‘Error’ led which lights up when any of the nodes on the network has 24vac reversed compared to the other nodes. Sharing a transformer among many devices is the norm in the building automation business and keeping 24vac consistent from node to node can be troublesome, this LED makes debugging easier.

Connection:

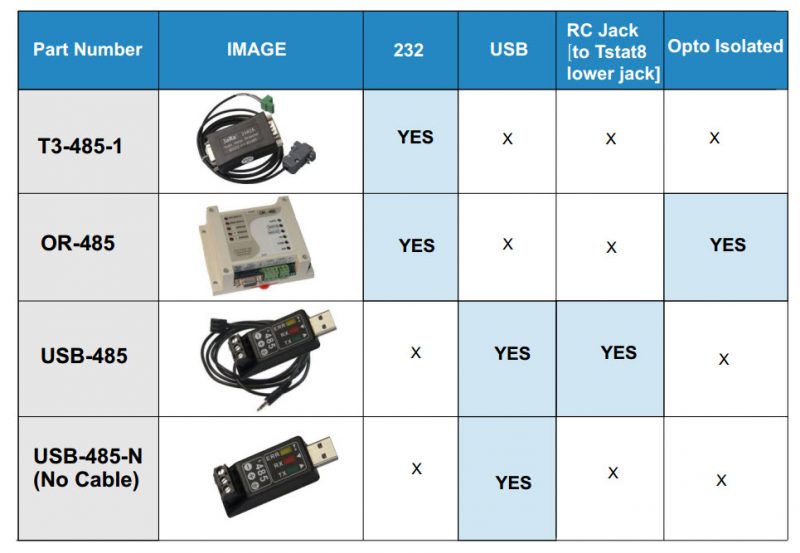

RS485 Comparison Chart:

外形尺寸：

usb_rs485_dimension

其他信息

重量 0.08 公斤
USB-RS485-N

10.9
