High temperature probe for Floor Heating & Solar applications

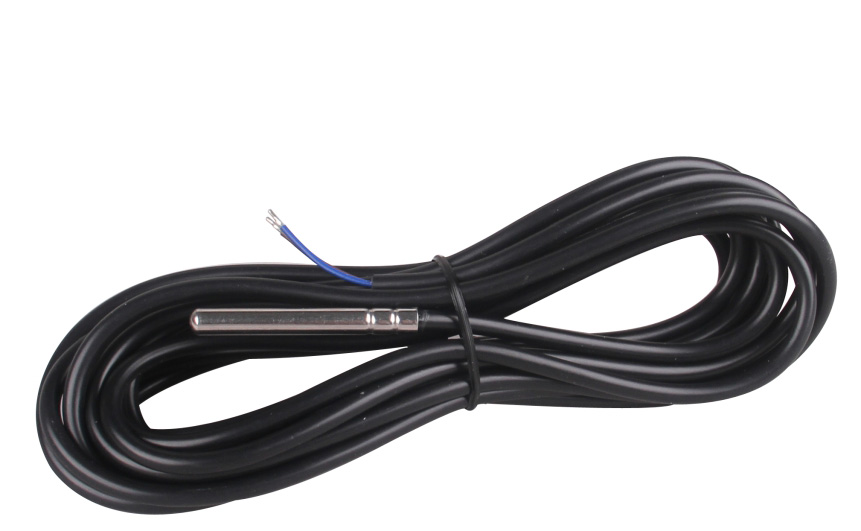

This temperature probe is suitable for a variety or high temperature applications such as floor heating, solar heating systems and domestic hot water heaters to name a few. The sensor element is housed in a stainless steel probe which is 6mm diameter x 50mm [2in] long. The cable is 4.5 meter long and is a high temperature material that is tough and highly durable.The probe is available with custom thermistors  and Pt elements, nearly all the popular ranges are available with very small minimum order quantity.

产品亮点:

  • 10K type 2 Accuracy: +-0.2C
  • Many curves available, same price
  • Operating Temperature Range: -40~125℃
  • Highly durable cable, 4.5 meters long
  • UL listed cable, UL file NO.2464
  • 2 Conductors,20 gauge
  • Rated to 105°C /221°F continuous 120°C/248°F intermittent
  • Stranded copper conductor clad with PVC

分享这个产品

$4.50 - $5.50

零件号: N / A 类别:

可用选项:

描述

Dimension:

Part Number Scheme:

其他信息

重量 0.16 kg
