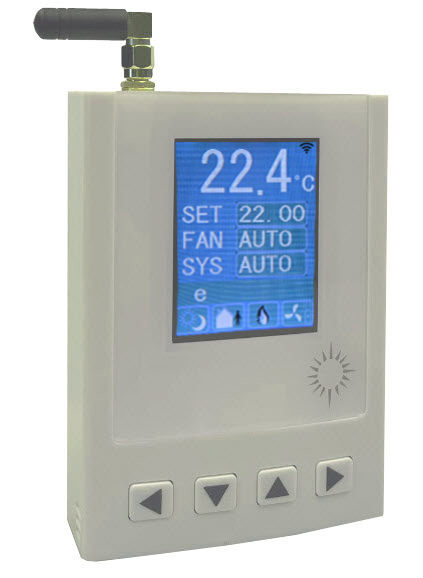

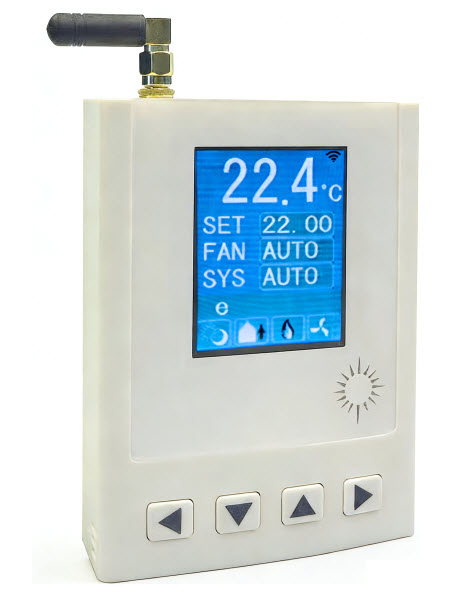

Tstat10E Fully Programmable Thermostat

Product Highlights:

• Software configure the I/O ranges with the free T3000 software or by writing to the registers with your own software
• Universal I/O can be configured for nearly any sensor, no jumper settings required
• Well documented register list for easy integration with other systems.
• 8 universal inputs for external temperature sensors, contacts, etc.
• 5 relay outputs, each rated at 12~24vac, 2 amps
• 2 analog outputs, 0-10V @ 100ma.
• Color LCD display

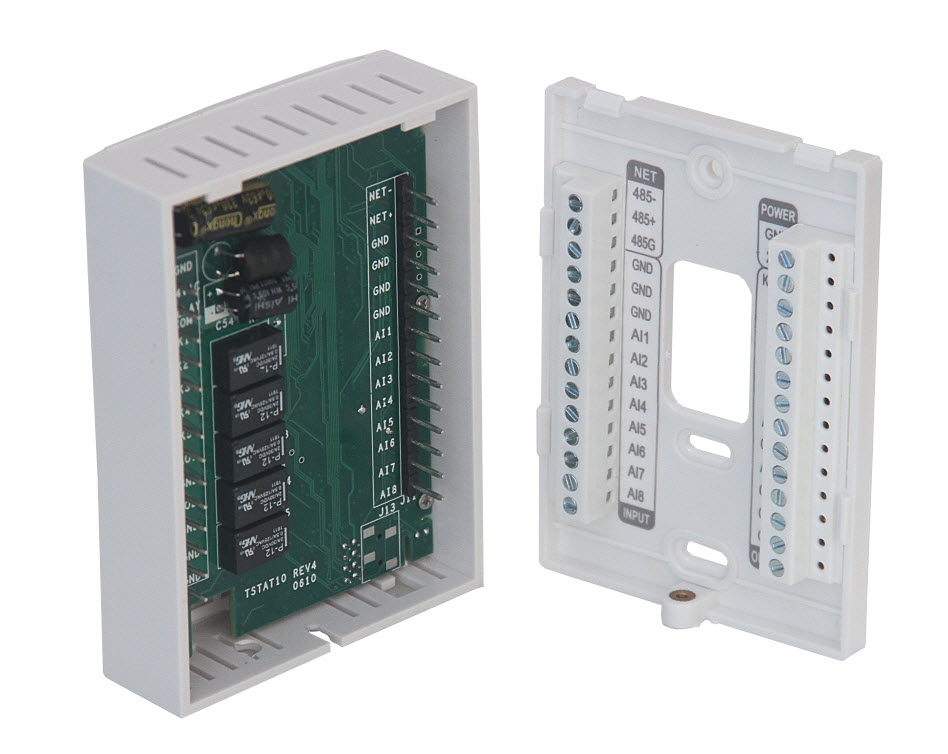

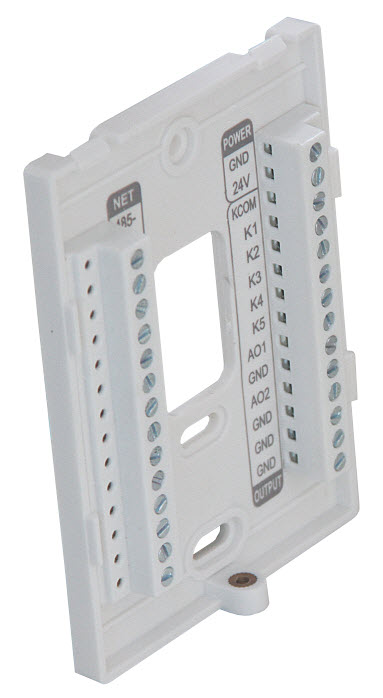

• Each I/O as well as the RS485 connections have a separate screw terminal
• Clock with infinite life supercap battery backup.

• Optional sensors for humidity, C02 and TVOC.

• Supports Modbus RTU and Bacnet protocols simultaneously.

Share this product

$60.00 - $128.00

Part number: N/A Category:

Available Options:

Description

This Tstat10E Fully Programmable Thermostat is designed for cooling and heating systems in residential and commercial buildings. You can program the thermostat to control air handlers, fan coils, VAV, modulating valves, and nearly any HVAC application.

All models support bacnet and modbus protocols which allows easy integration with the big name control systems like Niagara, Siemens, Honeywell, Johnson Controls, Delta, Reliable and Kreuter to name a few. There are five relays and two analog outputs as well as 8 universal inputs.

Use the free T3000 software to program Tstat10 controllers, then save and load the file to other units.

The device will perform its job as part of a networked system or can act as a standalone controller. There is no need for a master controller or connection to any cloud services to function hands free for the  life of the building.

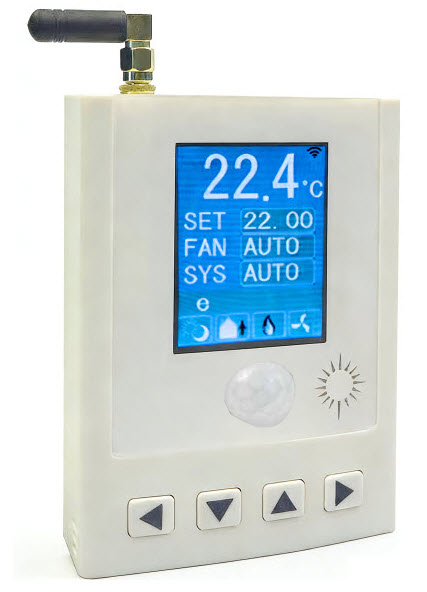

Additionally, it offers occupancy, WiFi, and humidity options, while supporting Bacnet MSTP, Modbus RTU, and Bacnet IP.

The source code for this product is open source so you can customize it with your own features. Here’s the repository on github: https://github.com/temcocontrols/T3-programmable-controller-on-ESP32

WiringDiagram

Tstat10E Fully Programmable Thermostat for Smart HVAC Control with BACnet, Modbus, WiFi & T3000 Software

Part Num SchemeTstat10E Fully Programmable Thermostat with BACnet, Modbus, WiFi, and T3000 software for advanced HVAC control in homes and commercial buildings

The Tstat10E Fully Programmable Thermostat stands out as a reliable and versatile solution for modern HVAC control. Moreover, with its open-source flexibility, seamless integration with major control systems, and advanced features like WiFi, occupancy sensing, and humidity monitoring, it therefore offers unmatched adaptability for residential, commercial, and industrial applications.

Whether used standalone or within a larger network, the Tstat10E Fully Programmable Thermostat provides reliable, efficient, and customizable HVAC control.

Additional information

Weight N/A
C02

C02, No CO2

OCC

NO OCC, OCC

TVOC

No TVOC, TVOC

Humidity

Humidity, No Humidity
