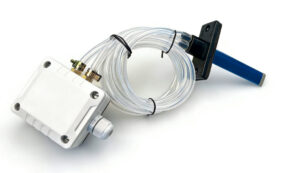

Air flow sensor is applicable to all kinds of building automation, environment monitoring, HVAC systems. It has current,voltage, 485 output signal to select, using 485 serial port out put and Modbus communication protocol. Wiring Diagram Part Number Scheme
The Node style sensor is a small form factor sensor designed for environment monitoring and control in commercial and institutional buildings. The product supports both Modbus and Bacnet on the RS485port for direct digital readings over the network on all models. Also has transducer outputs configurable as either 0-10V or 4-20ma signals.
The “Air Lab” all-in-one sensor is a total solution for measuring the indoor air quality and environment. The sensor is used widely in schools, hospitals and office buildings for demand ventilation and general air quality measurement.
There are many sensor elements in the “Air Lab” but the main attraction is the air particle sensor which can measure both the number of air particles and their density in several bin sizes. Supporting sensors include a C02 sensor, temperature, humidity, occupancy sensor, and TVOC sensor…. pretty much all the parameters you could ask for. The AirLab gives you confidence your building occupants are comfortable and breathing clean air.
The sensor integrates well with existing building automation systems or can operate stand alone as a general air quality monitor. Wireless communications over Wifi is supported using Bacnet IP or Modbus TCP protocols. The sensor also supports wired communications over RS485 twisted pair using BACnet MSTP or Modbus RTU protocols.
The Boiler stack temperature sensor and thermowell are designed to monitor the temperature of boiler stacks, steam lines and other applications where the temperature is above the operating range of typical HVAC thermistor type sensors. Maximum operating temperature of 300 Deg C (570 DegF).
The sensor is housed in a copper tube with a slightly curved surface to make intimate thermal contact with the pipe. Temperature changes in the pipe fluid are conducted very quickly through the sensor housing to the element inside. The copper pipe strap fits makes for quick installation on either 1/2 inch or 3/4 inch pipes.
The 3 meter long cable is 24 AWG stranded copper wire with a UL2651 rating and is registered under UL file number UL42323. The thermistor is a 10K type 2 temperature curve compatible with most DDC systems on the market
The EFM Series is the most economical flanged electromagnetic flowmeter on the market. It is used in 3 to 12” pipe in HVAC, municipal or industrial water, wastewater, pump stations and packaged plant applications. The EFM has no moving parts …
The PM2.5/10 Particle Counter is designed for environmental monitoring in industrial, commercial and institutional buildings,which provides accurate readings of particle counts in five important sizes, 0.5μm,1.0μm,2.5μm,4μm and 10μm.
Duct temperature and humidity sensor / transmitter well suited to all types of building automation and environmental monitoring applications. The transducer can inteface to the automation system either with an analog signals or digitally over the RS485 network using either …
Duct mount temperature only transducer, Bacnet/Modbus over RS485, 0-10v 4-20ma output signal
