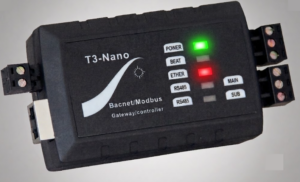

The T3 series Bacnet programmable controller is a low cost performer with big system features. There are three versions with various I/O configurations and can be expanded with external i/o modules to form a complete building automation solution.
The Wireless Modbus USB Converter is a lowcost, low consumption, and wireless mesh network targeted at wide development of long life devices in wireless control and monitoring applications.It provides a simple method of integrating 802.15.4 or ZigBee into computers, gateways and/or bridge devices.
The converter is available with a choice of two driver options: The 802.15.4 drivers provide direct access to the 802.15.4 MAC interface. The Zigbee drivers allow the dongle to operate within a Zigbee network.
The T3 general purpose modules add input/output expansion space for building automation systems. Integrators regularly tell us they are winning more projects because of the excellent price point and features of these devices. Works well with Seimens, Reliable, Delta, KMD, Tridium, etc.T3-22i and T3-8o support both Bacnet and Modbus over both RS485 and the ethernet ports. All settings are available as Bacnet objects and Modbus registers.
The T3-PT12 is a precision temperature measurement module which can accept up to twelve instrument grade sensors. The unit accepts platinum Pt elements, either 100 ohm or 1k ohm variety. It also can accept 10k thermistors, Type II and Type III. Cabling can be accomplished using two, three or four wire connections. Communications is supported over Bacnet and Modbus over both RS485 and the Ethernet ports. All readings and the various settings are available as Bacnet objects and Modbus registers.
Bacnet boiler Controller is a full featured heating system solution for radiant heating and more. The unit can manage up to eight zones in a simple stand alone application or can be networked into much larger systems.It sets a new benchmark in the price/performance,bringing full-fledged building automation features to a whole new class of smaller buildings. Access homes & buildings from a PC or over the net to monitor performance, increase comfort all while saving energy.
GK-7000 is a high performance embedded industrial computer with a capacitive touch screen user interface. The CPU is the Samsung S3C2440 which is based on an Arm9 core. It’s Linux 2.6.32 operating system. This computer offers a full list of technical specs at low power consumption and high reliability.

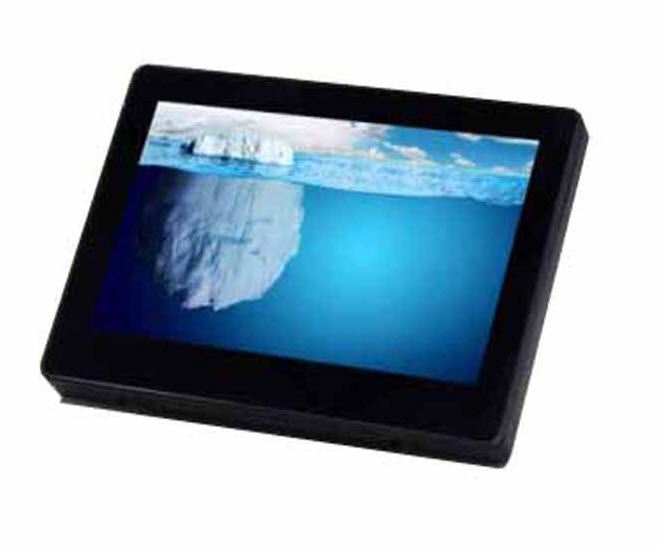

PC android 5.1.1 features customized A material accompanying 4-corner rubber mat and IP64 rating, which offers all-round protection to prevent from shock, dust and water.All interfaces are equipped with protective components to cope with complex industrial environment.
The USB to RS485 is suited for transmitting smaller blocks of data over long distances with many nodes sharing the two wire bus. Building automation systems are often wired with RS485 networks for this reason, PCs, controllers, sensors and many small embedded devices can all share the same bus which can stretch up to 254 nodes and many hundreds of meters in length.
Zigbee repeater is a kind of low cost, low consumption, and wireless mesh network targeted at wide development of long life devices in wireless control and monitoring applications. It applies wireless controlling and wireless data transmission. One zigbee repeater can work with another or others as one network. As one solution to replace wire connection, it can connect with computer.
The Zigbee repeater can implement the wireless transmission based on RS485.
USB485 Converter is a USB to RS-485 converter which provides a simple low cost means of connecting a PC to an RS485 network in a very compact form factor, this is our smallest most compact model available. The unit is overmolded in a tough rubberized plastic which gives a professional appearance which will stand up to the toughest of environments.
The OR-485 is an externally powered isolated converter/repeater with diagnostic LEDs.It is an externally powered, isolated converter/repeater with diagnostic LEDs. There are two input ports which can be designated, via jumper, as either RS232( for connection to a PC as a converter), or RS485 (for bus repeater mode). The isolated, half-duplex RS485 output port has two separate connectors to make dividing the network simple for troubleshooting. The diagnostic LEDs show common wiring mistakes such as short or open circuits. All protocols (Bacnet, Modbus, generic RS485 protocols, etc.) are supported. Some of the diagnostics, such as “bad CRC” and “Modbus” error reporting, however, are available only with Modbus at 19.2k or 9600 baud.
Module T3-485-1 can change TXD and RXS signal data of RS232 serial interface to twisted pair RS485. The unti-scavenges power is from the RS232 lines so there is no need for an external power source. Pin3 (TXD) , Pin7 (RTS) and Pin4 (DTR) provide enough power. Auto flow control means you don’t have to install special drivers. The cable provided connects to most Temco controls equipment directly. It can be easily cut and customized in the field or write to us and we’ll make a custom version for you at no extra charge.
Digital Storage Oscilloscope, 4 channels, 2 analog channels, 2 digital channels.
This unit is a 5-trace 4-channel digital oscilloscope for common electronic engineering tasks. Its CPU is based on ARM Cortex M3, adopting FPGA to manage the control & data buffering of ADC. A built-in 2MB USB disk enables users to store waveforms & upgrade firmware. It also provides 4 application areas, convenient for users to load & upgrade at most 4 kinds of application firmware.
The PWM-1 is a signal converter which takes a pulsed binary input signal and outputs a voltage signal proportional to the duration of the pulse. The device allows controllers with only relay outputs to connect to field devices such as modulating dampers, valves and variable speed drives. The output signal can be modulated with precision of one-tenth of a volt. The device has an RS485 port for integrating over Modbus RTU and Bacnet MSTP, all settings and the current state of the inputs and outputs are visible as Modbus registers or Bacnet objects. Each output has a manual hand-off-auto switch which allows the installer and building operator to override the software settings for field testing and overrides. The voltage which is output in manual mode can be adjusted when in manual mode so you can effectively command the output to any state from fully open to fully closed using the hand-off-auto switch and potentiometer.
The T3 Series Modules are general purpose input/output modules for building integrators. Available in several input/output configurations, the T3 Series Module provides convenient termination for field devices and interfacing to HVAC, lighting, temperature sensors, and other typical building automation applications. Each of the Universal inputs can be configured, via jumper, for either 0-5V or 0-20mA signals. The outputs are available in dry contacts 1amp/output, 0-10V analog, and PNP sinking. The modules are slave devices that can be easily controlled via the RS485 serial interface using the industry standard Modbus RTU Protocol.
