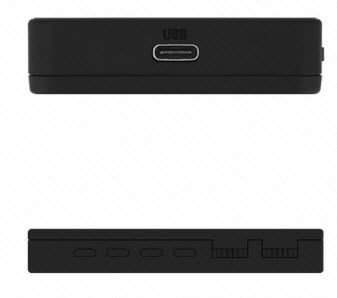

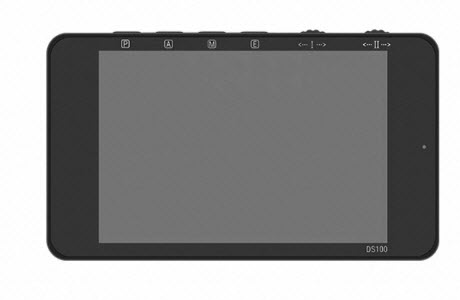

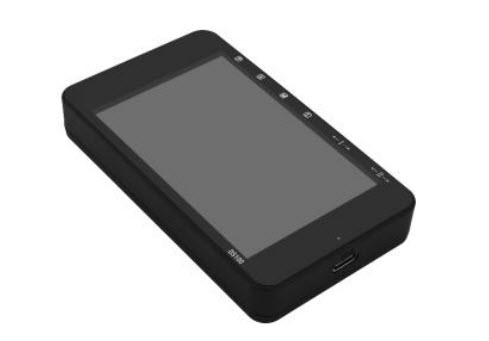

Digital Storage Oscilloscope

Digital Storage Oscilloscope, 4 channels, 2 analog channels, 2 digital channels

Product Highlights:

  • RS485 Diagnostic LEDs

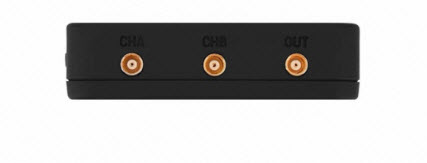

  • 2 analog channels: (CH_A, CH_B), 2 digital channels (CH_C, CH_D)
  • Sampling rate of any analog channel can reach 72 MS/s
  • Record length of any channel can reach 4096 bits

Share this product

$234.00

Stock :
Part number: DSO-4CH Category:

Description

The CPU inside is based on ARM Cortex M3, adopting FPGA to manage the control & data buffering of ADC. A built-in 2MB USB disk enables users to store waveforms & upgrade firmware. It also provides 4 application areas, convenient for users to load & upgrade at most 4 kinds of application firmware.

Fuction Draphic:

Use Digital Storage Oscilloscope to test RS485 signal, following the figure:



Additional information

Weight 1.00 kg
