Description

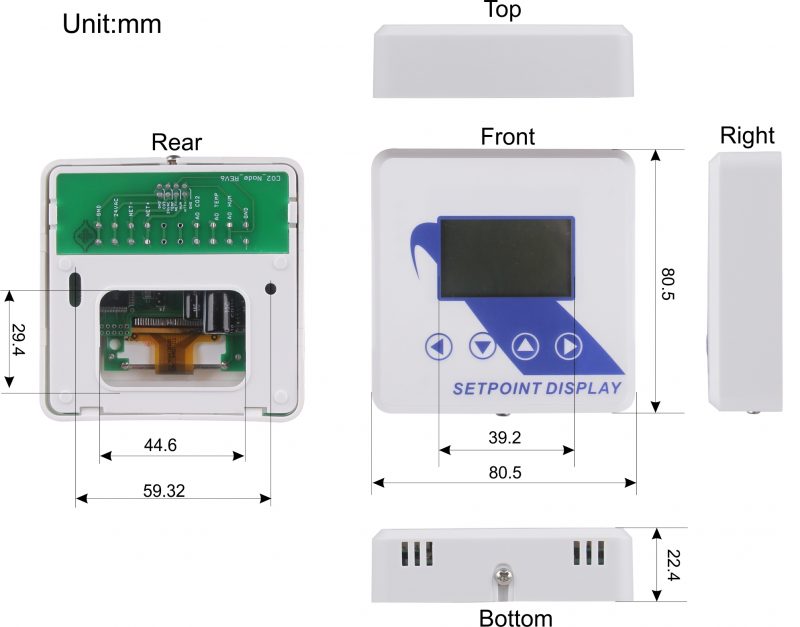

Dimension:

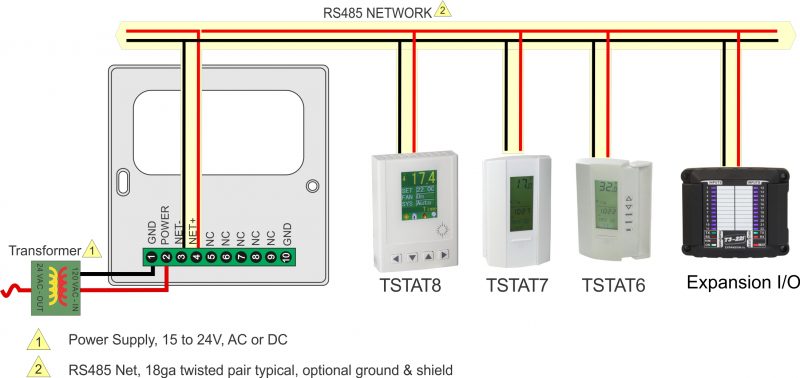

Wiring Diagram:
The register list can be downloaded as an excel spreadsheet (ModbusBacnetRegistersListRev9.xls)at the following link:
https://www.temcocontrols.com/ftp/software
Bacnet Room Setpoint & Temp Display
Bacnet Room Setpoint & Temp Display can be used in environment monitoring and controlling in industrial,commercial and other buildings,Modbus RS485/Bacnet MS/TP for direct digital reading on all models.
Product Highlights:
- The output signals and RS485 are hardened up for overvoltage and power supply crossed over.
- Display in degrees Fahrenheit or Celsius(connection to Bacnet).
- The LCD is a bitmap so we can show network connectivity.
- The user can confiure what they want to show on the display: network activiy, baud rate, protocol,etc.
- You can show a user setpoint so you can use it as a room /setpoint display.
- Modbus RS485/Bacnet MS/TP for direct digital reading on all models.
