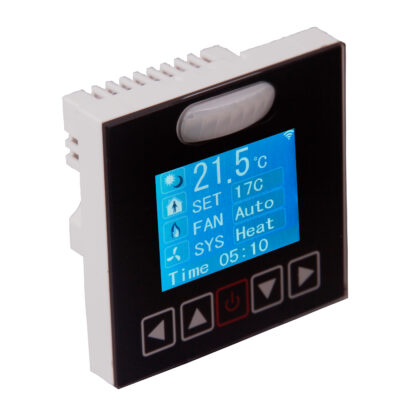

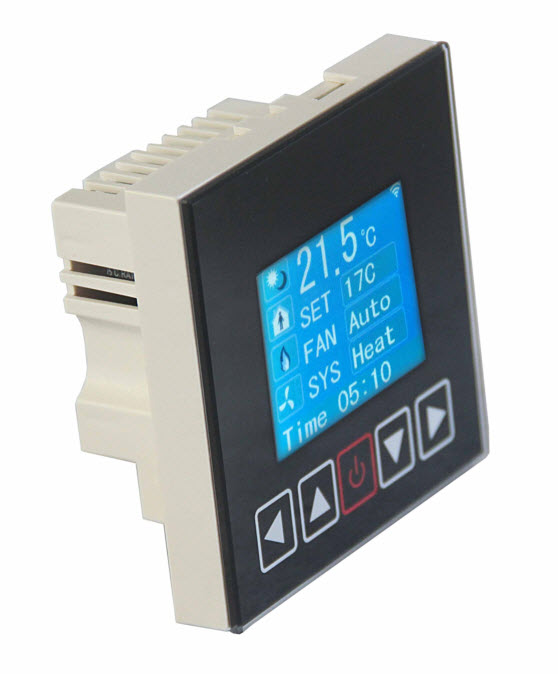

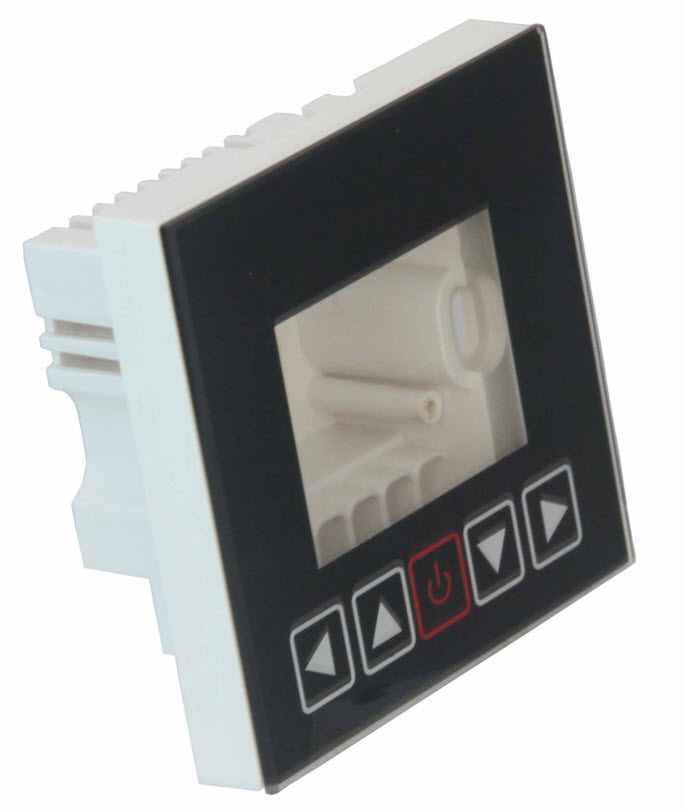

Tstat9 Bacnet Thermostat

Product Highlights:

  • Modbus TCP/lP protocols over WlFl.
  • Well documented register list for easy integration with other systems
  • 5 relay outputs, each rated at 100~220V, 5 amps.
  • Color LCD display
  • Easily configure the thermostat for practically any application
  • Clock with infinite life supercap battery backup.
  • Uses 32 bit Arm CPU with 12 bit analog readings

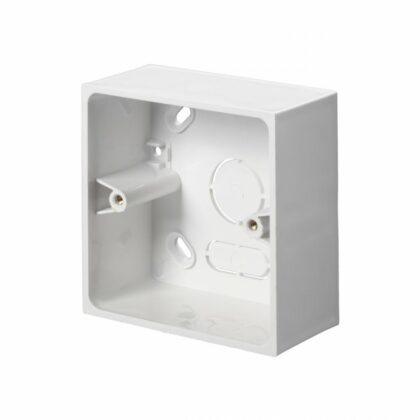

  • Fits in regular 3in*3in*1.4in(88mm*88mm*35mm) electrical box

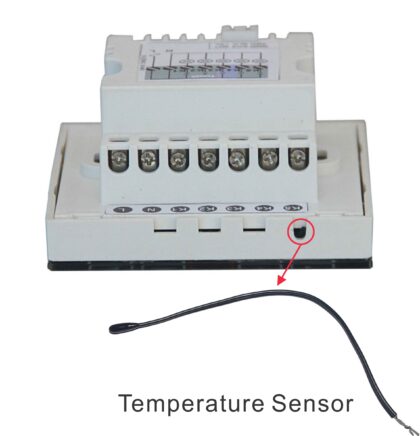

  • Al:10K thermistor.AO: 0-10VDC

Share this product

$56.00 - $65.00

Part number: N/A Category:

Available Options:

Description

This fullfeatured thermostat is designed for line voltage cooling and heating systems in residential and commercial buidings.The thermostat can beconfigured for or use with air handlers,fan cols,VAv,modulating valves and practically any HVAC application.All models suppor Bacnet and Modbusprotocol over the Wif iP connection which aows easy integration with the big name control systems like Niagara, Siemens,Honeywel.lohnsonControls ,Delta,Reliable and Kreuter to name a few. We also provide our free and easy to use T3000 front end which can provide a fiullsvstem levelsolution for large buildings, hotels and commercial buildings.There are five 220v, 5A rated relays outputs.These outputs can be conigured using thefree software.There are more than 300 setings with many options for each ofthe setings so its possilble to contgure these devices for most anvapplication. Once the unit is configured, save the config file for copying to other controlers and backing up project seltings. Options are available foroccupancy sensor, wifi, CO2 and humidity/enthalpy.

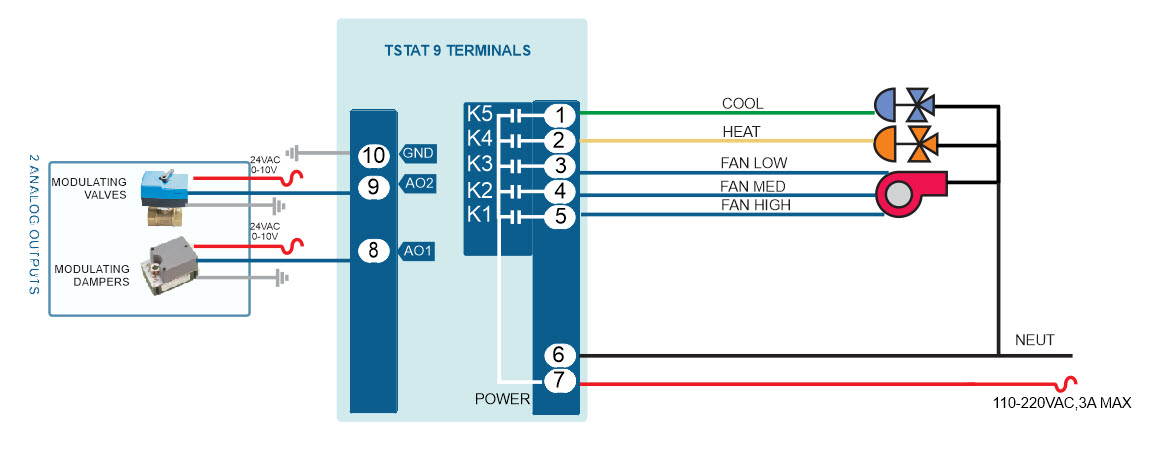

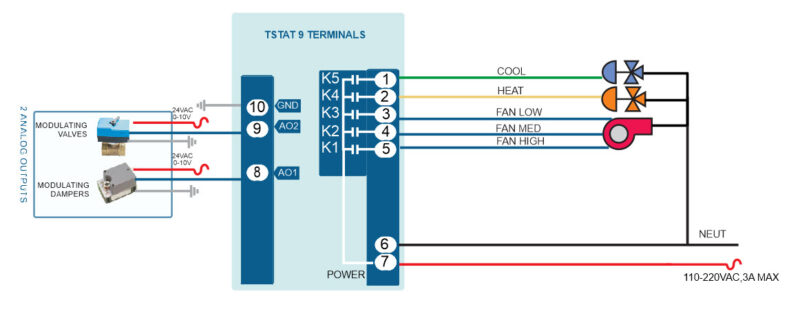

Wiring Diagram 1

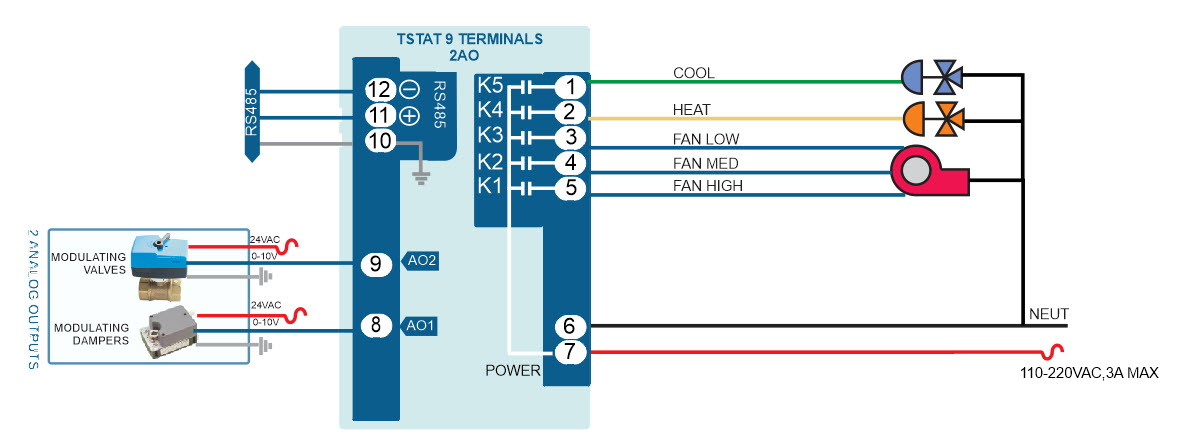

Wiring Diagram 2

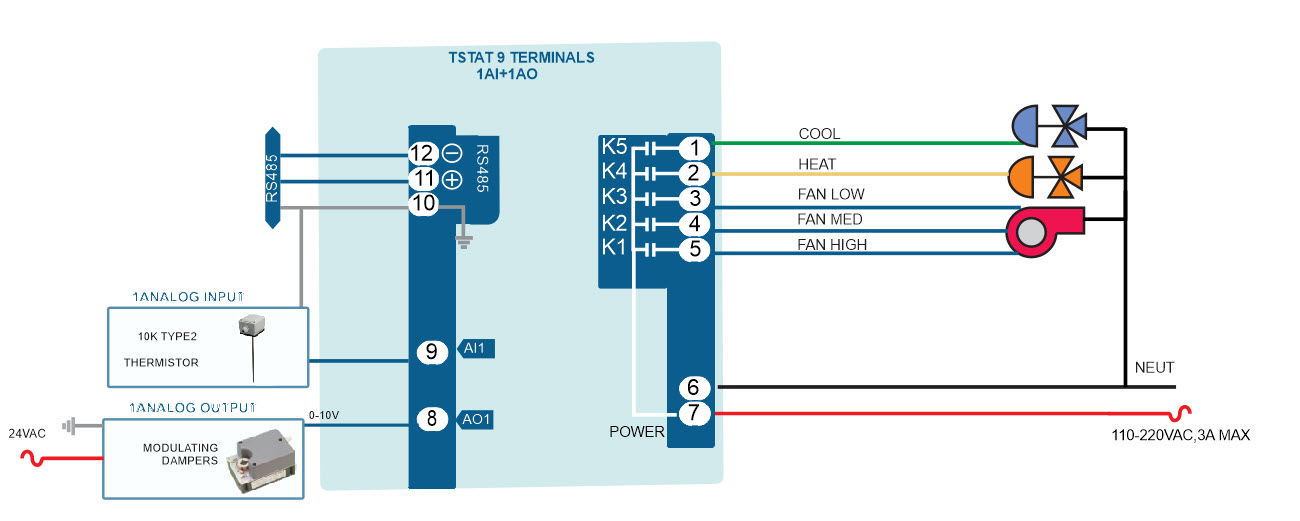

Wiring Diagram 3

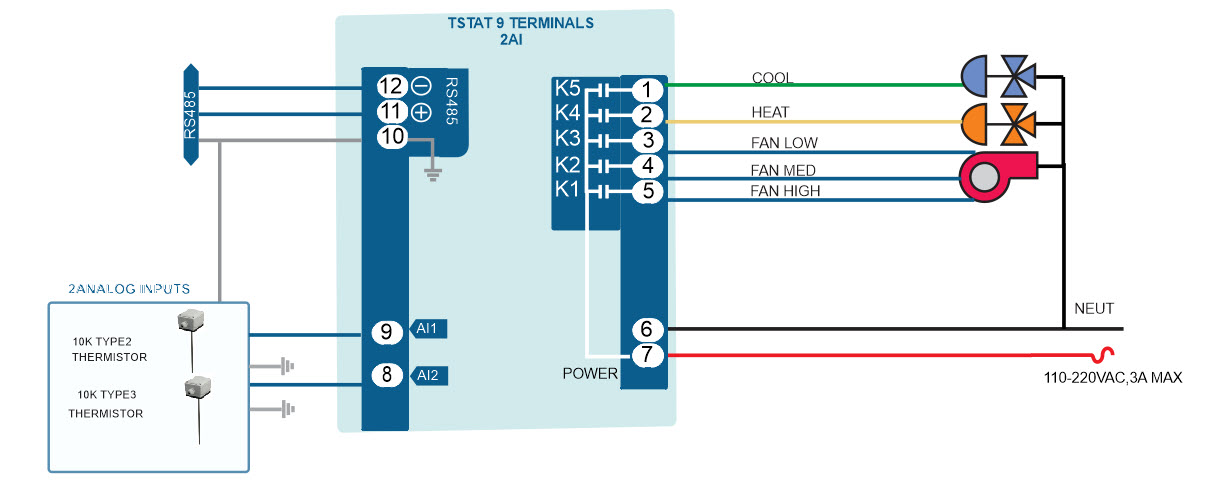

Wiring Diagram 4



Additional information

Weight N/A
Humidity

Humidity, No Humidity, With Humidity, Without Humidity

OCC

NO OCC, OCC

Communications

RS485, Wifi+RS485
