CO2 Sensor

The CO2 sensor with Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor C02, temperature and humidity monitoring. The modbus interface provides easy setup and integration into large systems.Supports Modbus RTU over both the Ethernet port and the RS485 port,supports Bacnet over both the Ethernet port (IP) and the RS485 port (MSTP).

Product Highlights:

High performance digital sensors and circuits, ensure accurate measurement and temperature compensation
Good long-term stability and reliability
100% field changeable sensors, no re-calibration needed
Fast response
Multiple output signals selectable: 4~20mA, 0~5V, or 0-10V
Supports Modbus RTU over both the Ethernet port and the RS485 port,supports Bacnet over both the Ethernet port (IP) and the RS485 port (MSTP).
Modbus communications port: RTU, 9.6k/19.2k/38.4k/57.6k/115.2kBaud
Display in degrees F or C

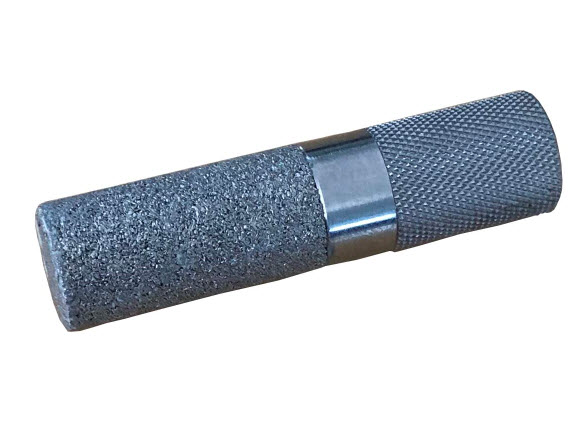

CO2 D/W probe: Pluggable sensor module with stainless steel sintered filter which can easily swap the sensor in the field.

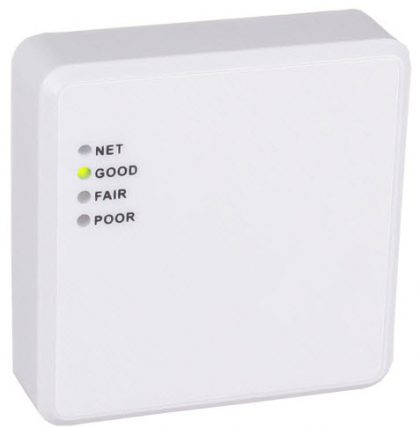

CO2 Node : Bacnet MS/TP
Automatic background calibration, default CO2 value: 40000ppm

Brochure PDF Software Source Code Certifications Technical doc

$72.00 - $156.50

Add to Wishlist

Part number: CO2 Category: C02, Hum, AQ

Description

CO2 Sensor

Wiring Diagram:

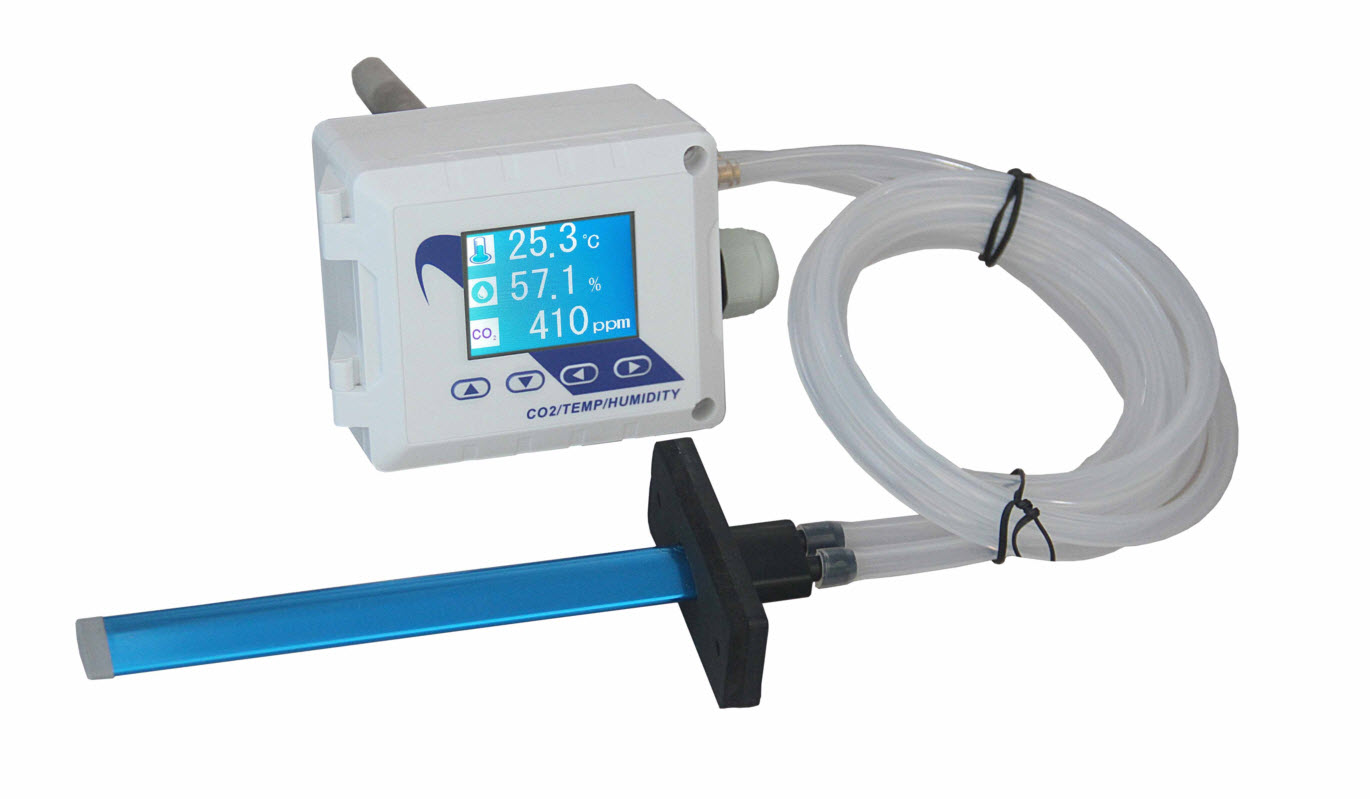

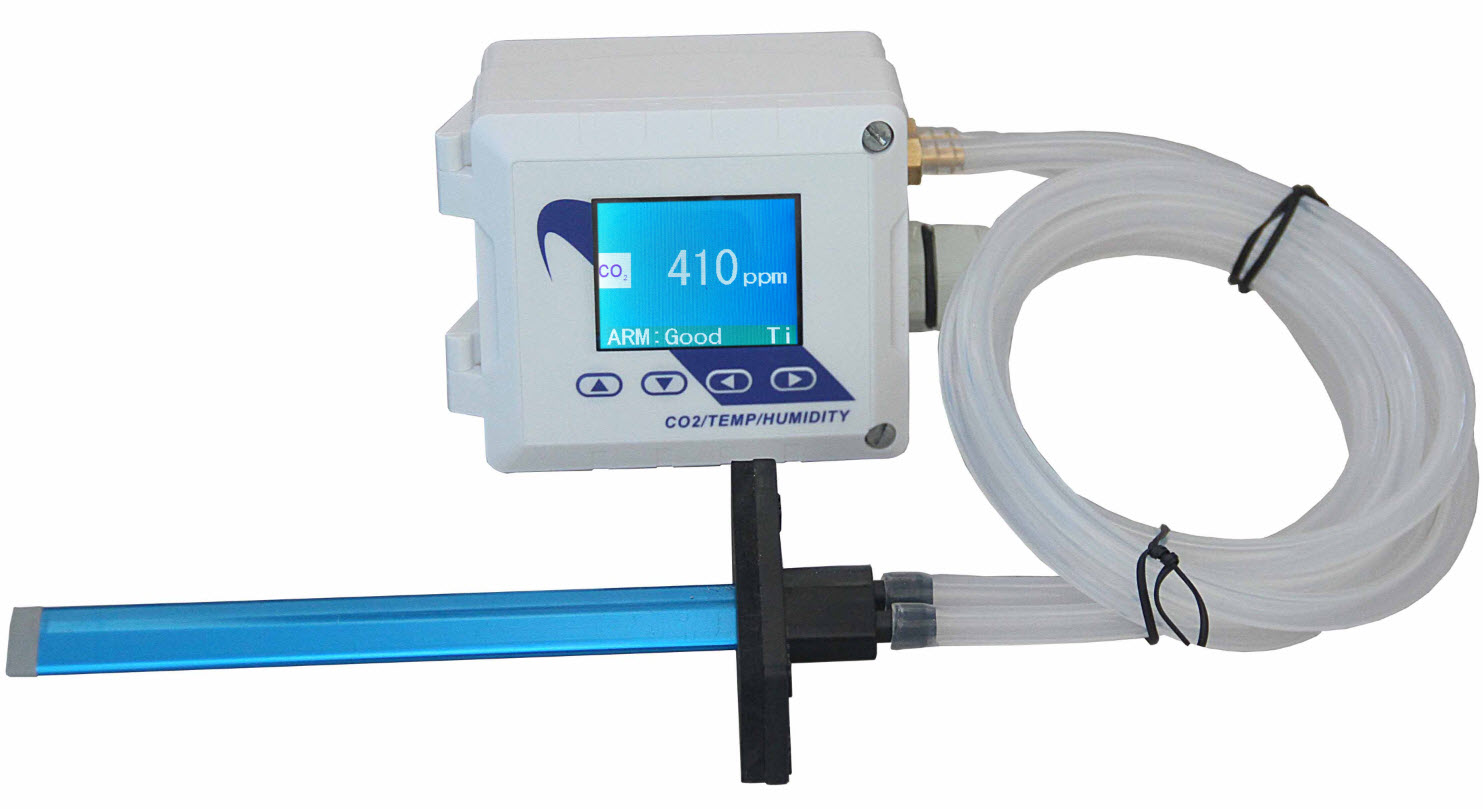

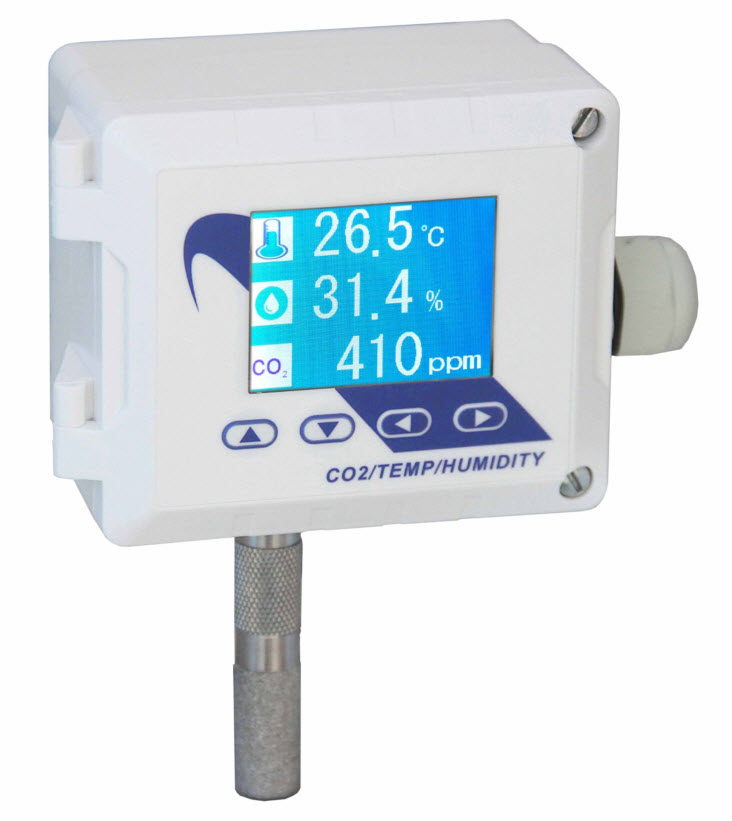

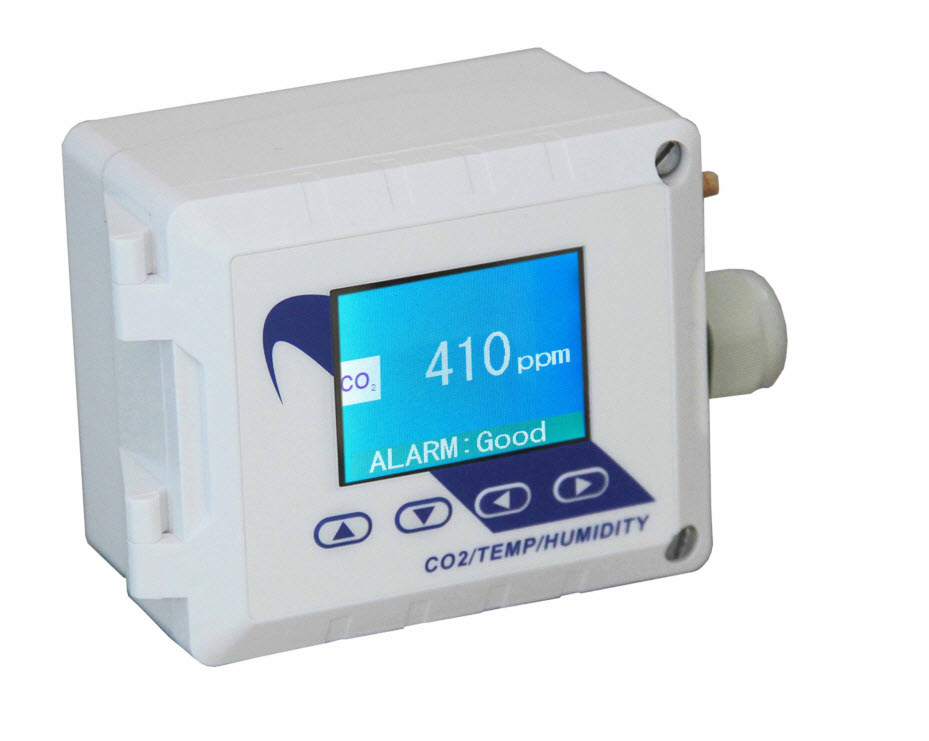

CO2-D/CO2-W

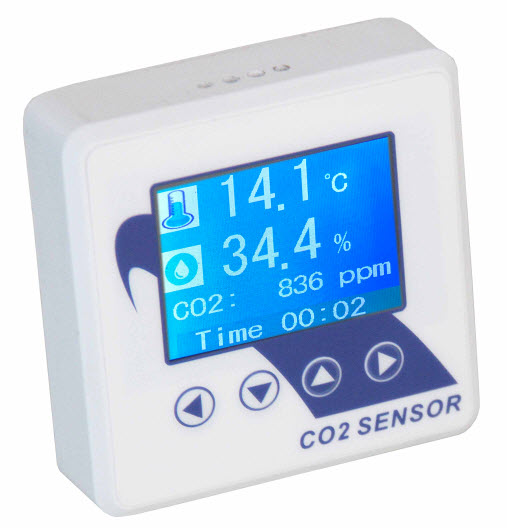

CO2-N-TH

Internal View:

Part Number Scheme:

Additional information

Weight	N/A
Enclosure	Duct, Node, Wall
Humidity	With Humidity, Without Humidity
Wifi	RS485 only, Wifi
POE	No POE, POE
