Current Sensor with 0-5VDC output signal

The CS series Current Sensors are solid state transducers for measuring the current in fans, pumps and other HVAC equipments.

Product Highlights:

  • Self-powered, no external power supply required.
  • 0~5VDC output, connects directly to automation systems.
  • One sensor for three ranges, jumper selected.
  • Low cost, replaces digital status relays.
  • Panel mounting
  • UL file number:E341727,Vol 1

Share this product


Part number: N/A Category:

Available Options:


These current sensors are a low cost solution for monitoring single phase AC loads, they contain an AC rectifier circuit to directly output a 0 to 5VDC signal and require no power supply. There are three full scale ranges which can be selected by simply moving the jumper on the device to switch between 10A, 20A and 50A sull scale. The output signal is proportional to the average current which will vary slightly from the results shown on an RMS measuring ammeter, depending on the load.

The new clamping / split core current transformer allows installation without interrupting the high voltage wiring. Add a second wrap of the high voltage cable to double the output signal for a given current.



Part Number Scheme:

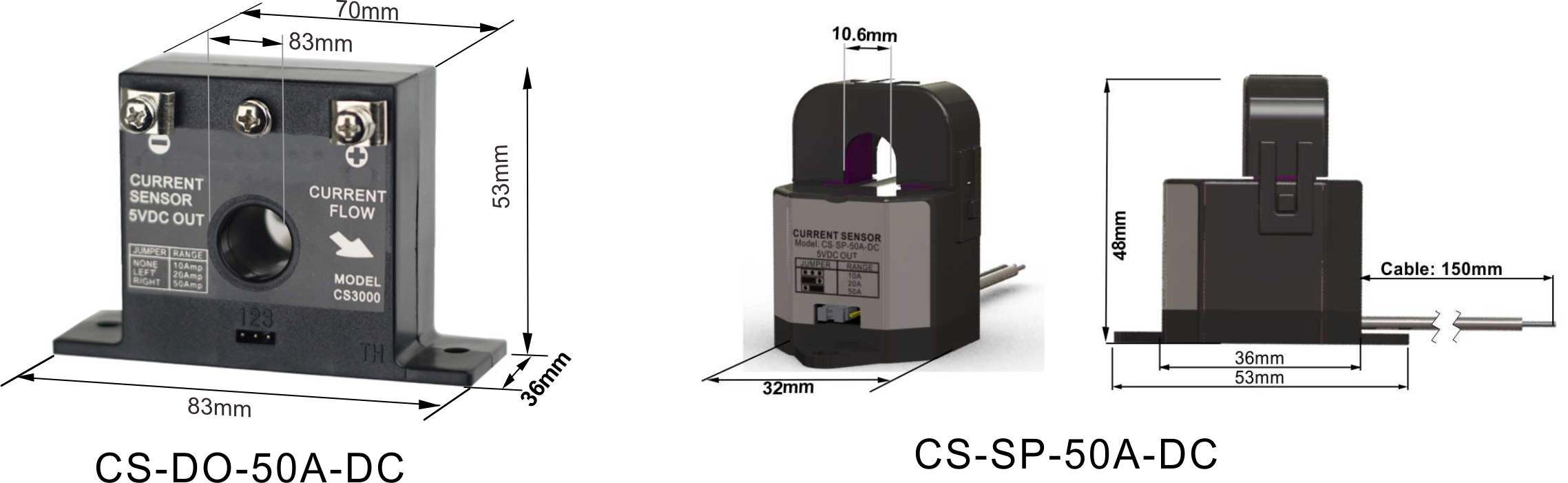

Additional information

Weight 0.11 kg
Current sensor type

Clamping current sensor, Non clamping current sensor
