Humidity and Temp Transmitters

Humidity & Temp transmitters are designed for environmental monitoring and controlling in industrial, commercial and other buildings.

Product Highlights:

  • High performance digital sensors and circuits, ensure accurate measurement and temperature compensation
  • Good long-term stability and reliability
  • 100% field changeable sensors, no re-calibration needed
  • Fast response
  • Multiple output signals selectable: 4~20mA, 0~5V, or 0-10V
  • Supports Both Modbus and Bacnet over RS485 and Wifi, with an etrernet port.
  • Modbus communications port: RTU, 9.6k/19.2k/38.4k/57.6k/115.2kBaud
  • Display Highly configurable to show user assigned parameters and units,Degc or De gf
  • Filter: Sintered Stainless steel, 60um pore size

Share this product

$24.00$54.00

Part number: N/A Category:

Available Options:

Description

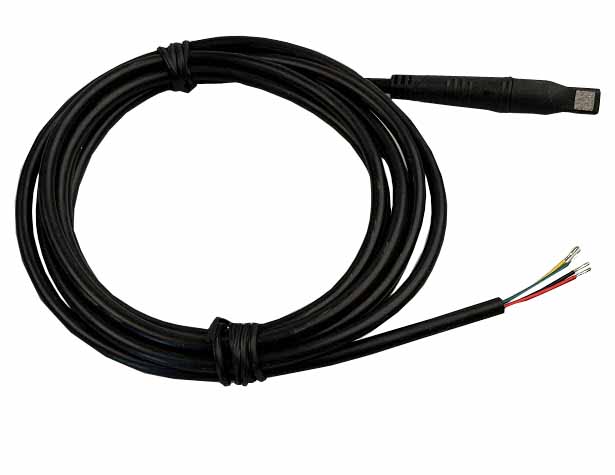

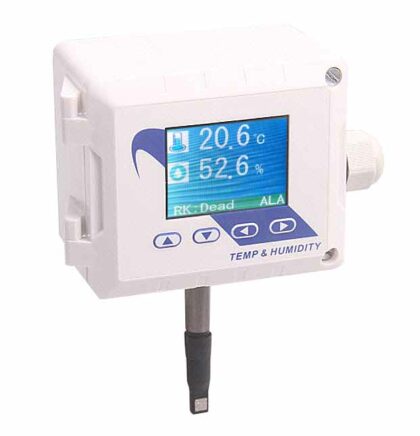

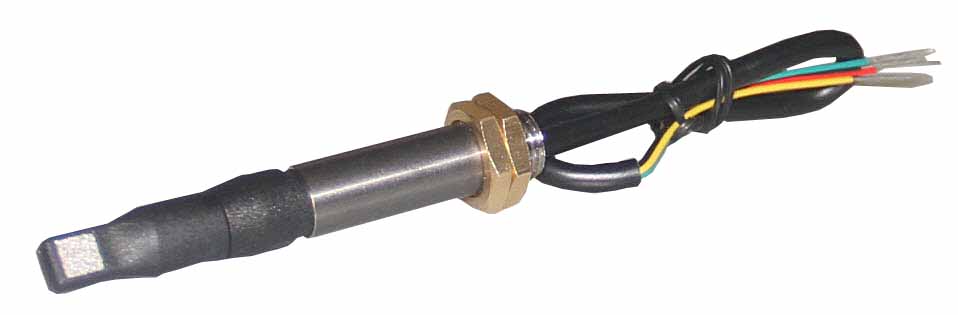

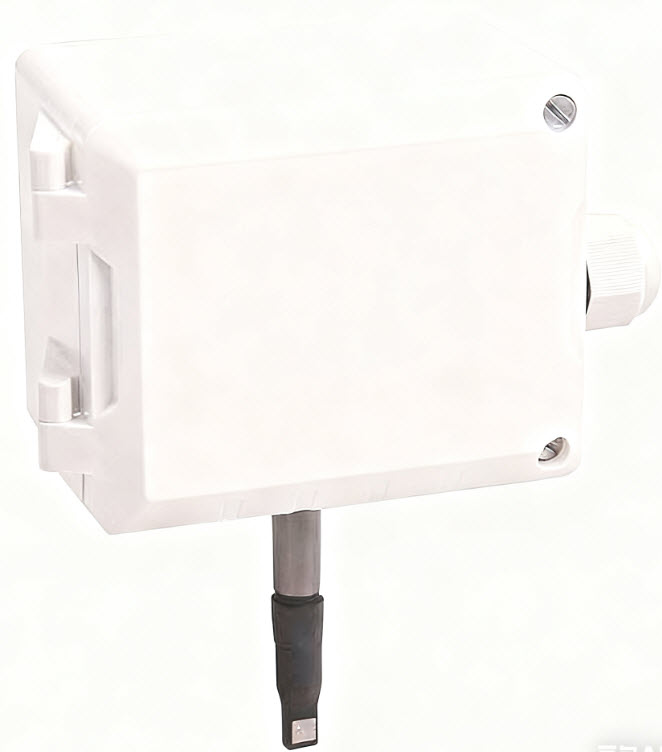

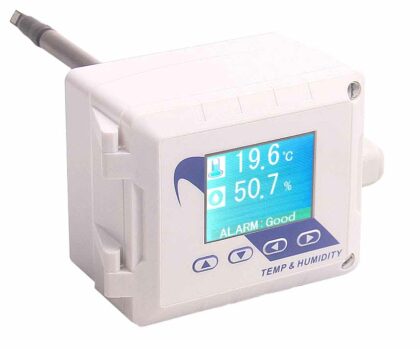

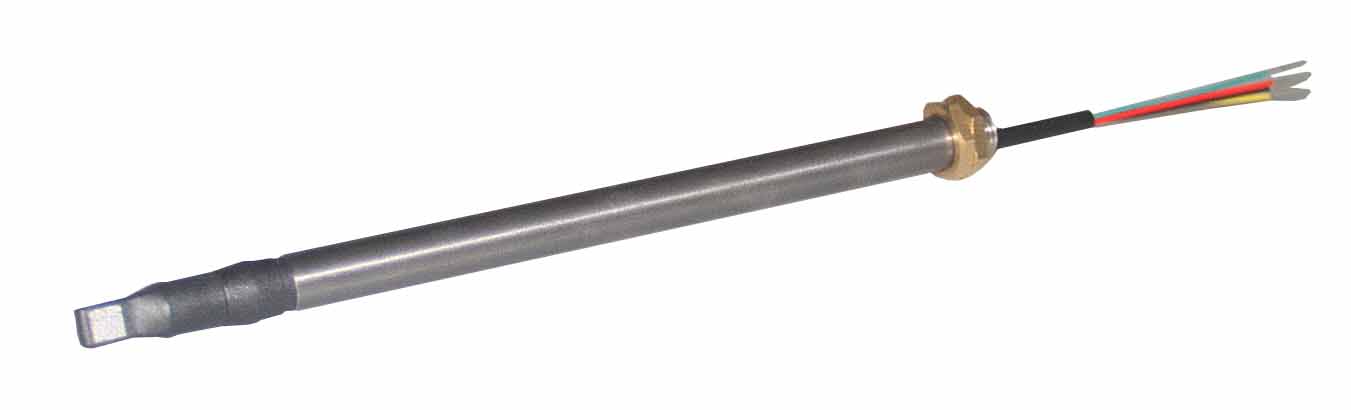

These transmitters can be used for indoor air temperature and humidity monitoring in various industrial plant, clean room, lab, machine room, commercial buildings, airport, and schools. The modbus interface is documented and integrator friendly. They also have transducer outputs for connecting as analog inputs to all popular control systems. Various models are available:Duct Mount,Wall Mount,Room Mount and 2 meter cable.BACnet MS/TP and Modbus RTU protocols over RS485,with an ethernet port.

Wiring Diagram:

Internal View:Dimension:

Part Number Scheme:

Additional information

Weight N/A
