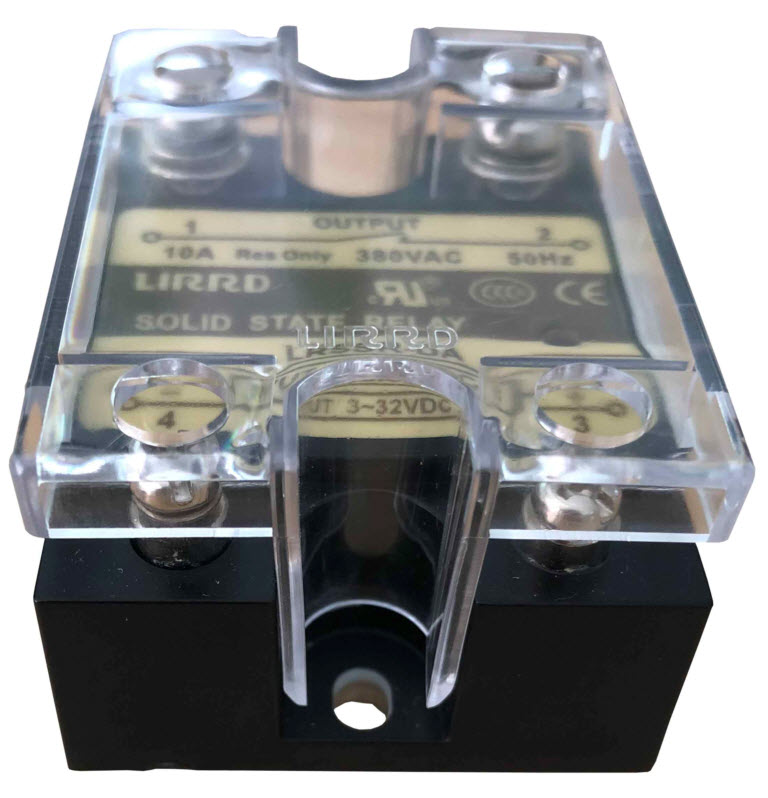

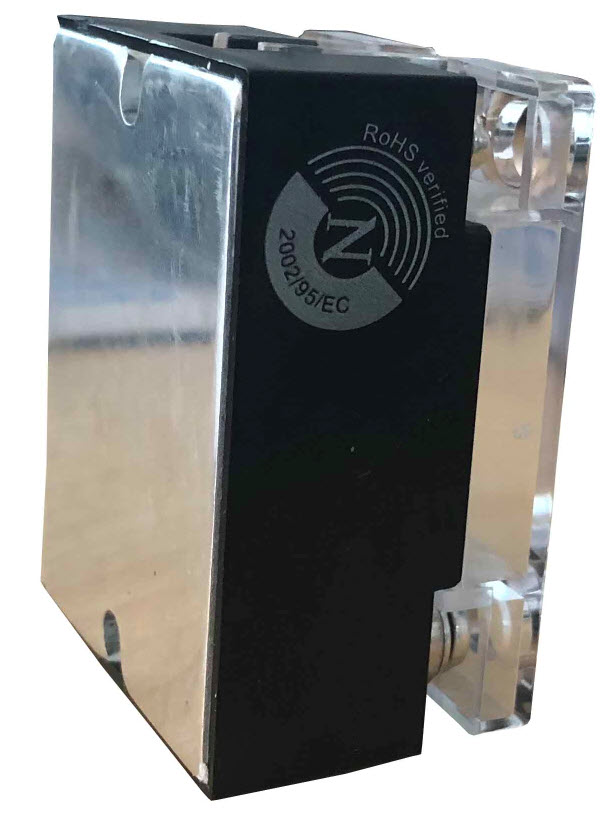

Solid State Relay

The LRSSR Solid State Relay brings solid state reliability to control systems in HVAC and light industrial duty applications.

Product Highlights:

  • Wide range for the energizing signal, 3V to 32VDC.
  • Status LED shows the relay state at a glance.
  • 2500 V Dielectric Strength
  • Output Voltage: 28VAC  up to 285VAC, at 50 or 60 Hz
  • We stock the standard ratings from 10 to 40A.
  • Higher amp ratings up to 100Amp are available on request.
  • Use a heat sink for sizes over 10A.
  • Plastic cover improves safety and isolation of circuits.
  • UL file number:E256962

Share this product

$3.00 - $13.00

Part number: N/A Category:

Available Options:

Description

The solid state relay has long service life and noise free operation even at high switching speeds. Zero turn on circuitry, status LED and compact size make this an excellent choice for switching of compressors, fans pumps. The high speed electrically quiet operation means they’re also suitable for PWM modulating of electric heaters.

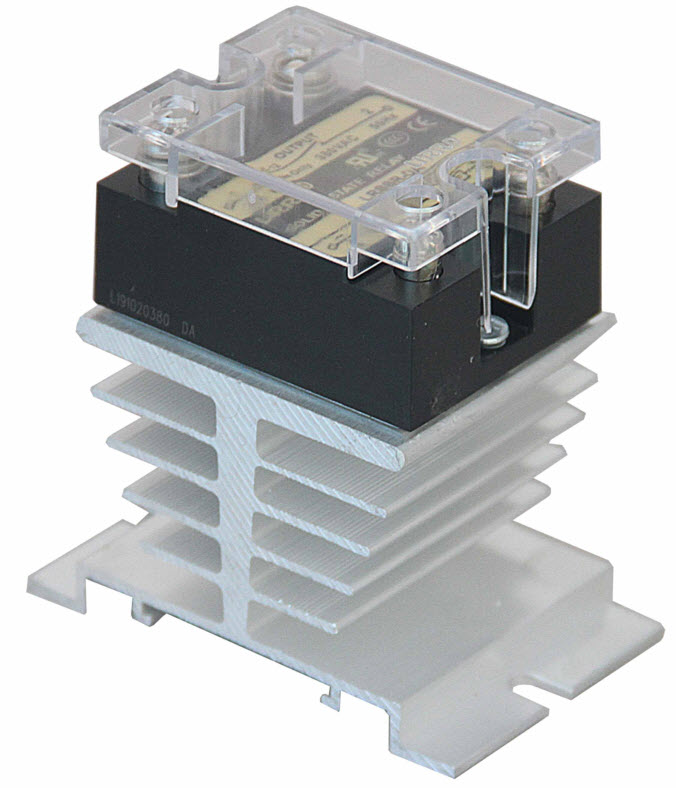

                    heat-sink

Dimension:



demensions-660x800

Wiring Connection:

0

Part Number Scheme:

ssrpt

Power Rating With & Without Heat Sink

Additional information

Weight 0.15 kg
Contact rating

15A, 10 Amps, 20 Amps, 25Amps, 30 Amps, 40 Amps, 5 Amps

Output type

AC output, DC output
