Mechanical Relay Board

The MRB Mechanical Relay Board is a handy way to mount multiple relays in a tidy package with either 4 or 8 relay models and field selectable coil voltage of 12VDC and 24VAC. There’s a status LED for each relay and a label with writable surface where you can mark the name of each output.

Product Highlights:

  • UL listed relays
  • Works with positive and negative ground systems
  • Jumpers allow selecting 12VDC coil or 24VAC coil in the field.
  • Panel mount base, writeable label
  • Status LED for each relay
  • Industrial duty, pluggable terminals with floating cage wire clamp.
  • Current Rating,  250VAC/6A   125VAC/12A

Share this product

$8.80 - $14.00

Part number: N/A Category:

Available Options:

Description

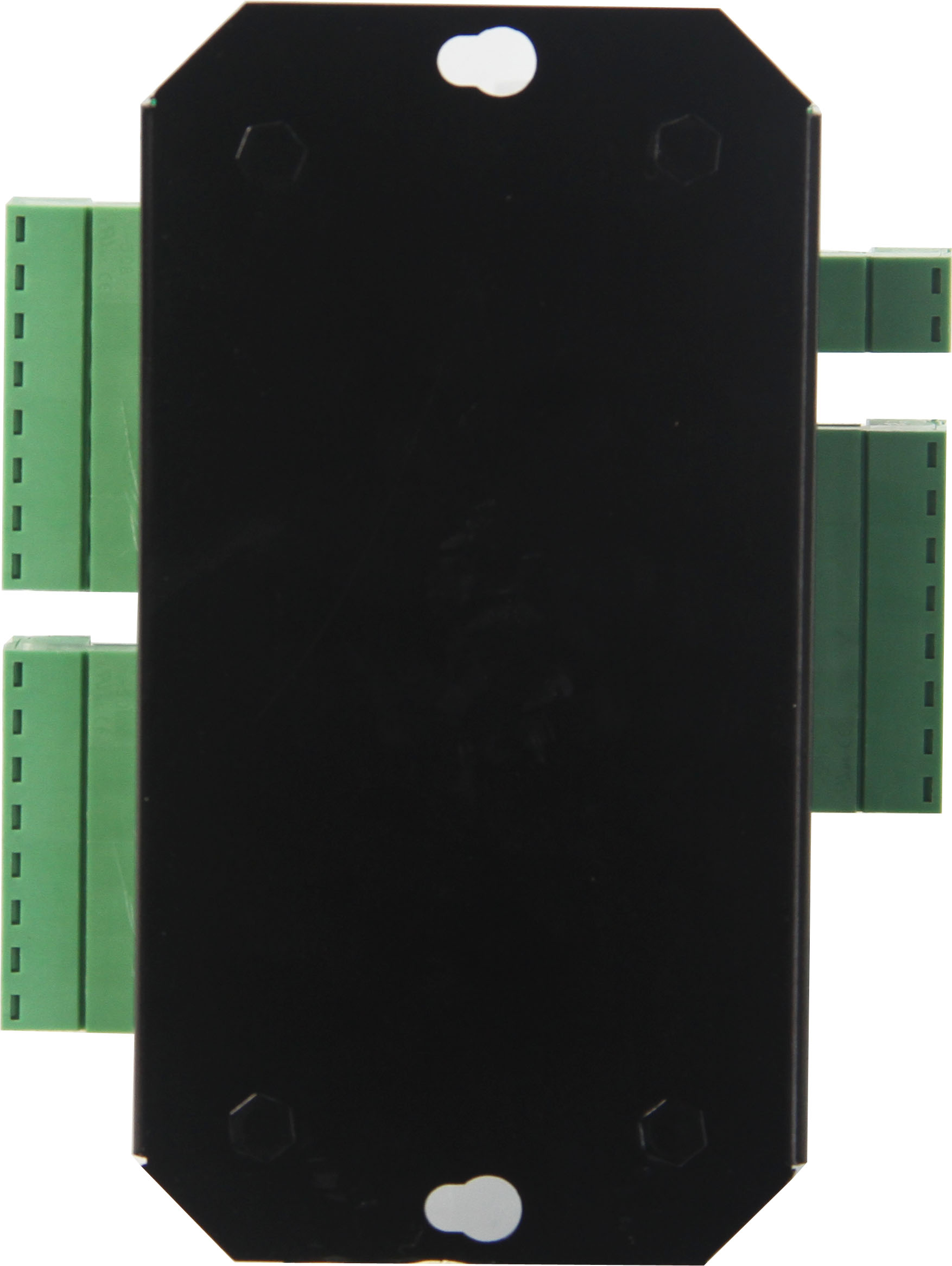

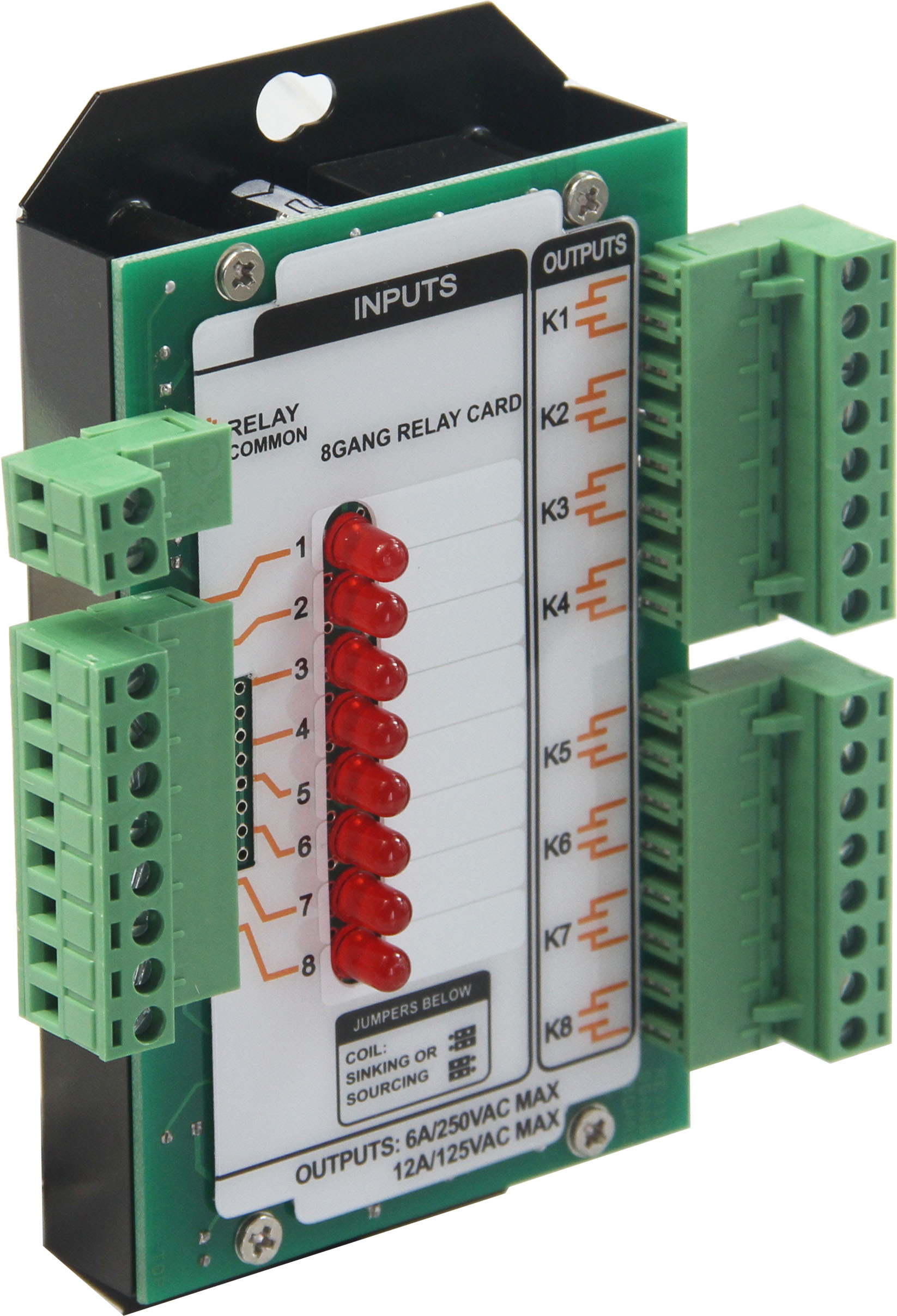

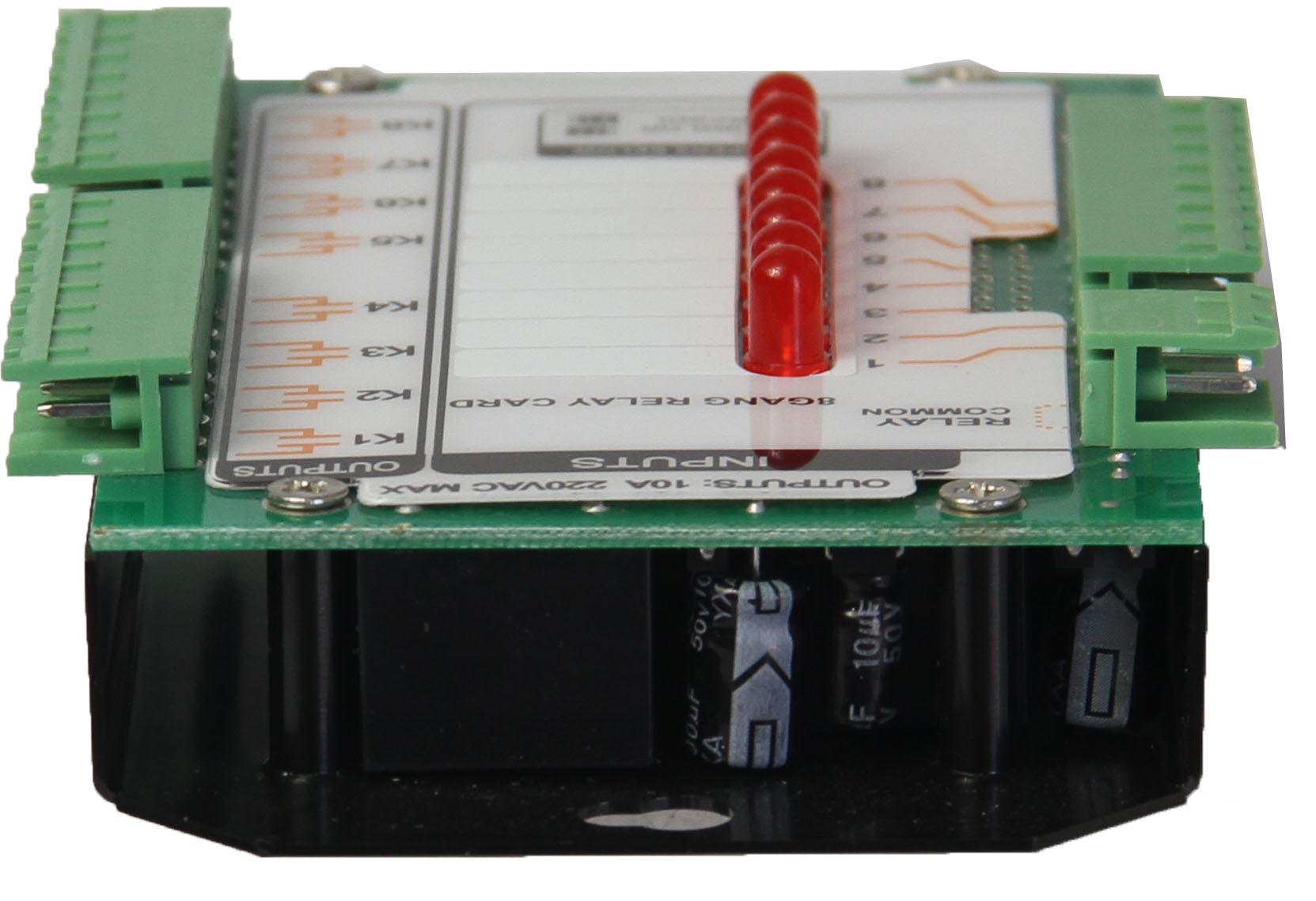

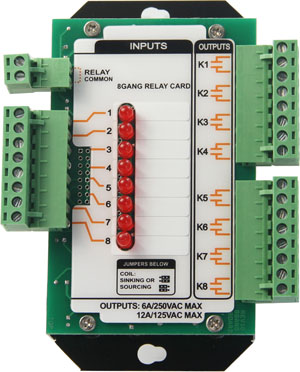

Mechanical Relay Board: 8 gang relay

    The coils are low power, requiring 20ma at 24VAC (30ma at 12VDC). The SPST relay is rated at 12A/125VAC, 6A/250VAC. The relay board comes pre-configured as either 12VDC or 24VAC but you can move some jumpers on the lower side of the PCB which allow you to switch from 12VDC to 24VAC or vice versa in the field.

Part Number Scheme:

MRB-8 Dimension:

mrb-8dim-drawing

MRB-4-8 quick wiring

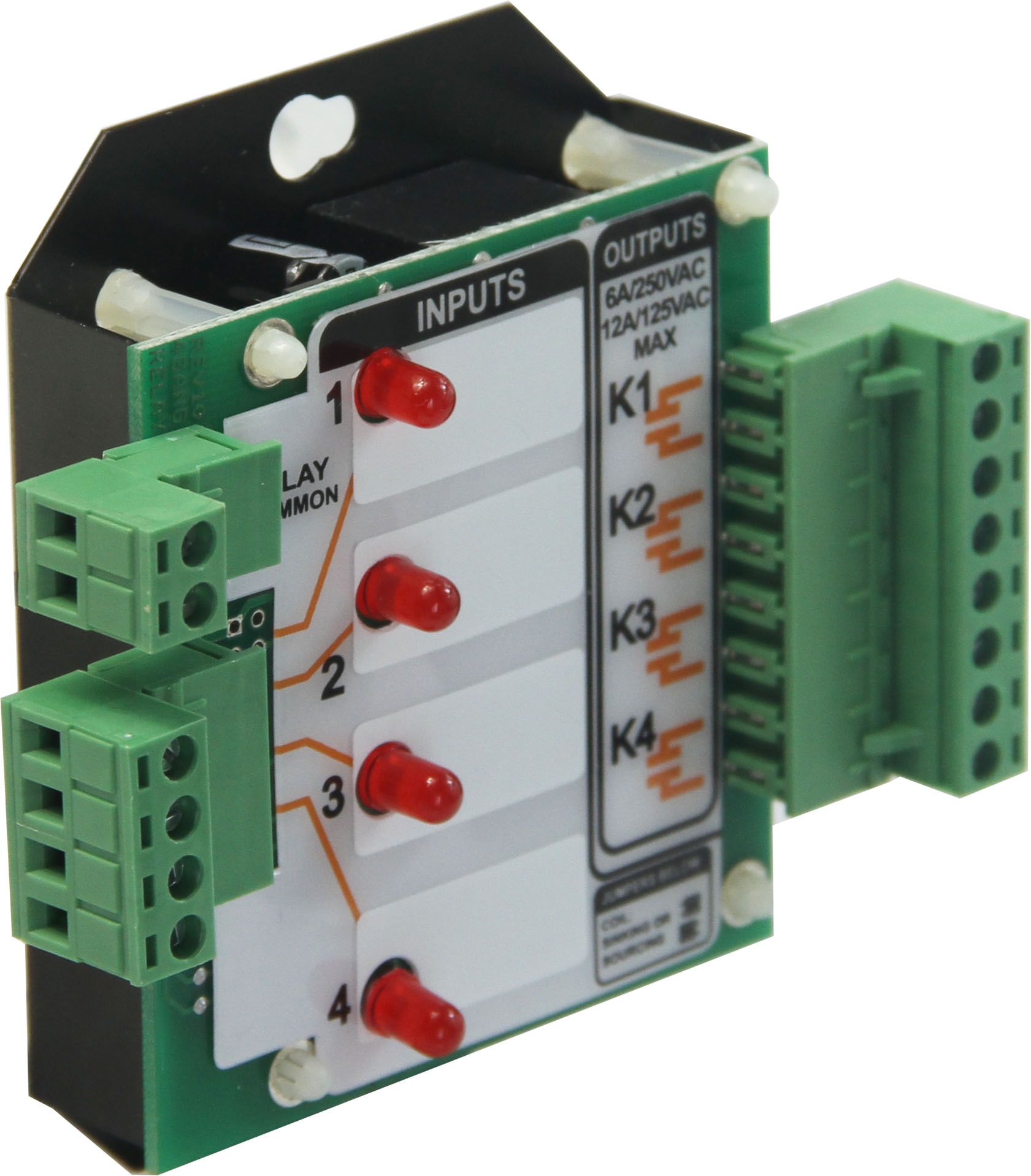

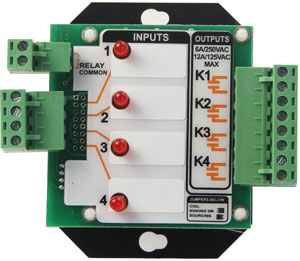

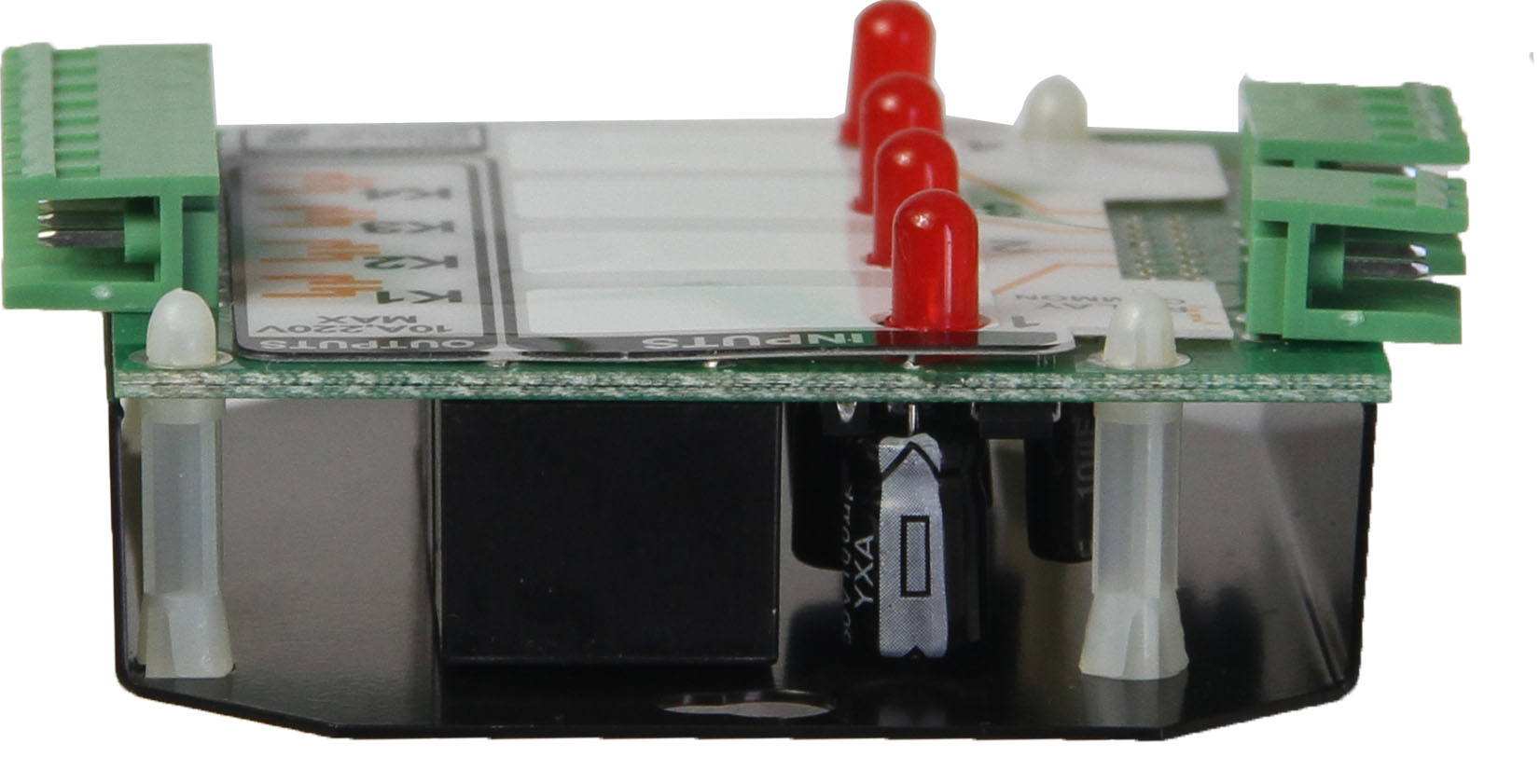

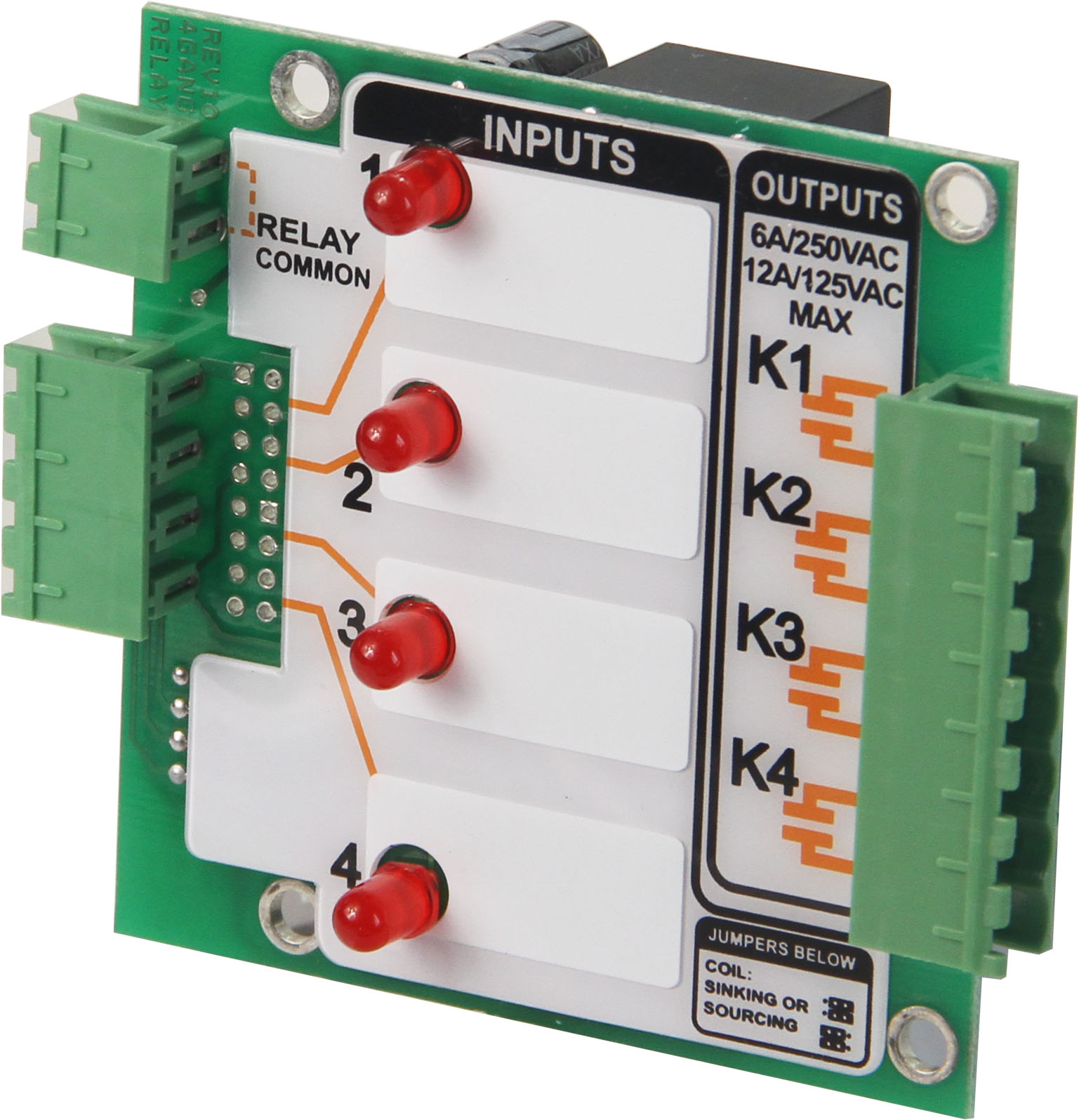

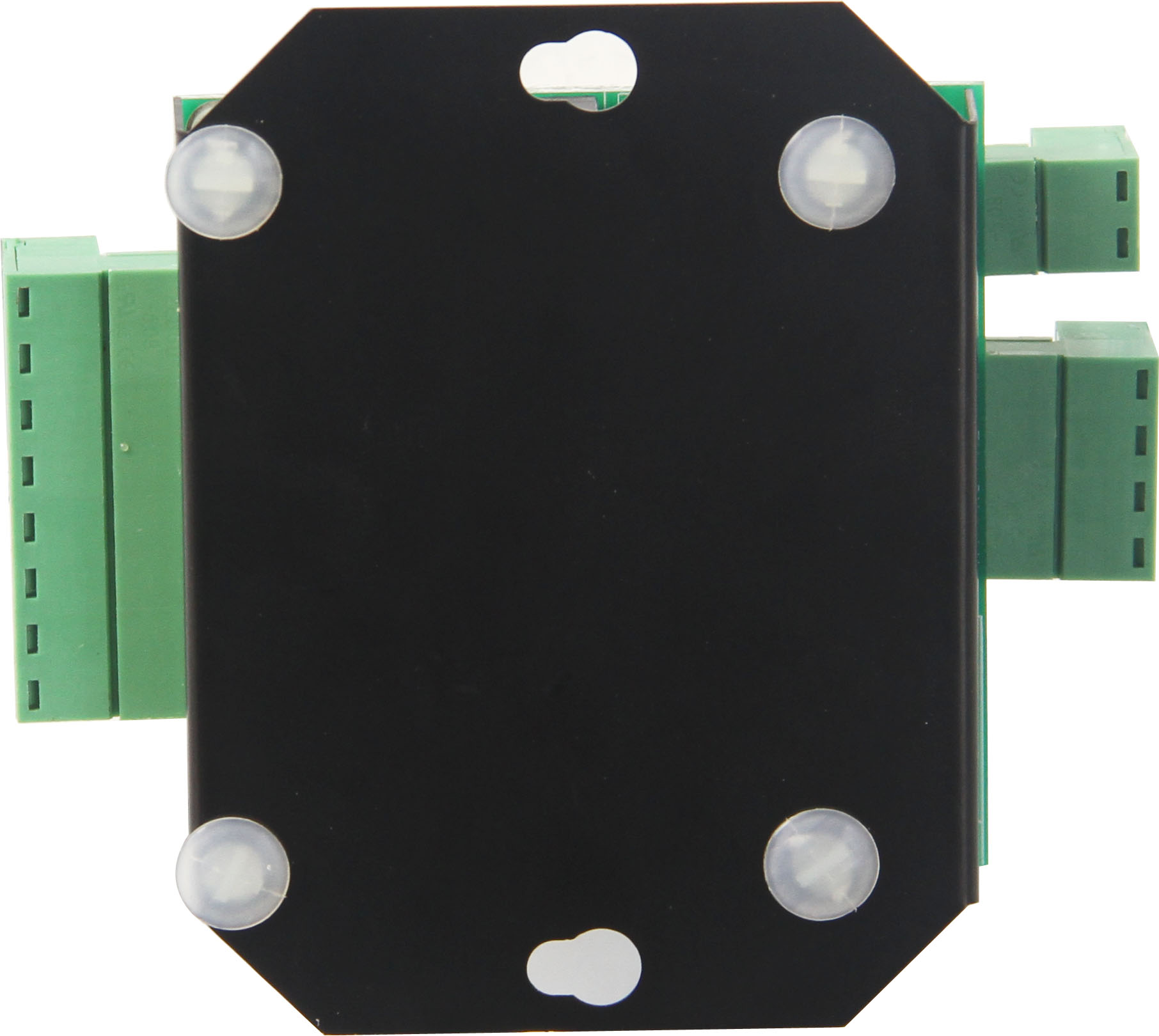

Mechanical Relay Board: 4 gang relay

    The coils are low power, requiring 20ma at 24VAC (30ma at 12VDC). The SPST relay is rated at 12A/125VAC, 6A/250VAC. The relay board comes pre-configured as either 12VDC or 24VAC but you can move some jumpers on the lower side of the PCB which allow you to switch from 12VDC to 24VAC or vice versa in the field.



Sourcing/Sinking Coil Option

The coils are normally configured as sourcing with a common ground but they can also be factory configured to sinking operation, please write us if you would like the sinking version.

MRB-4 Dimenson:

mrb4-dim



Note to the NEST users in the U.S.:

There is usually inventory in the US of A. If the shipping method shows as ‘Fedex’ on checkout then some items in your order are coming from the Shanghai warehouse. Try ordering just the relays alone and shipping will usually show USPS which means the items are in stock in the states.

Additional information

Weight N/A
Relay number

4 gang, 8 gang

Coil voltage

12VDC, 24VAC

NC version

Normally Closed
