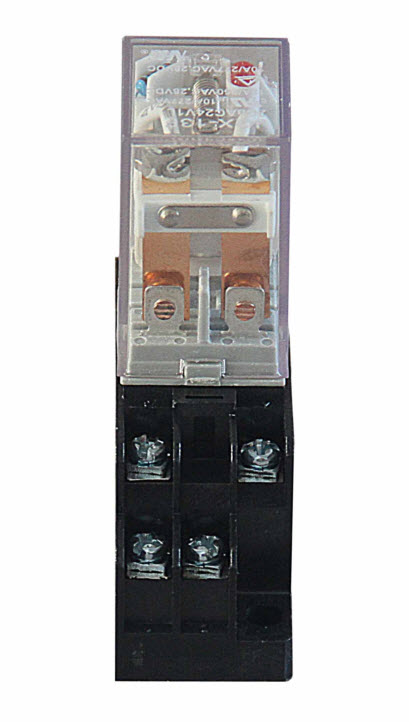

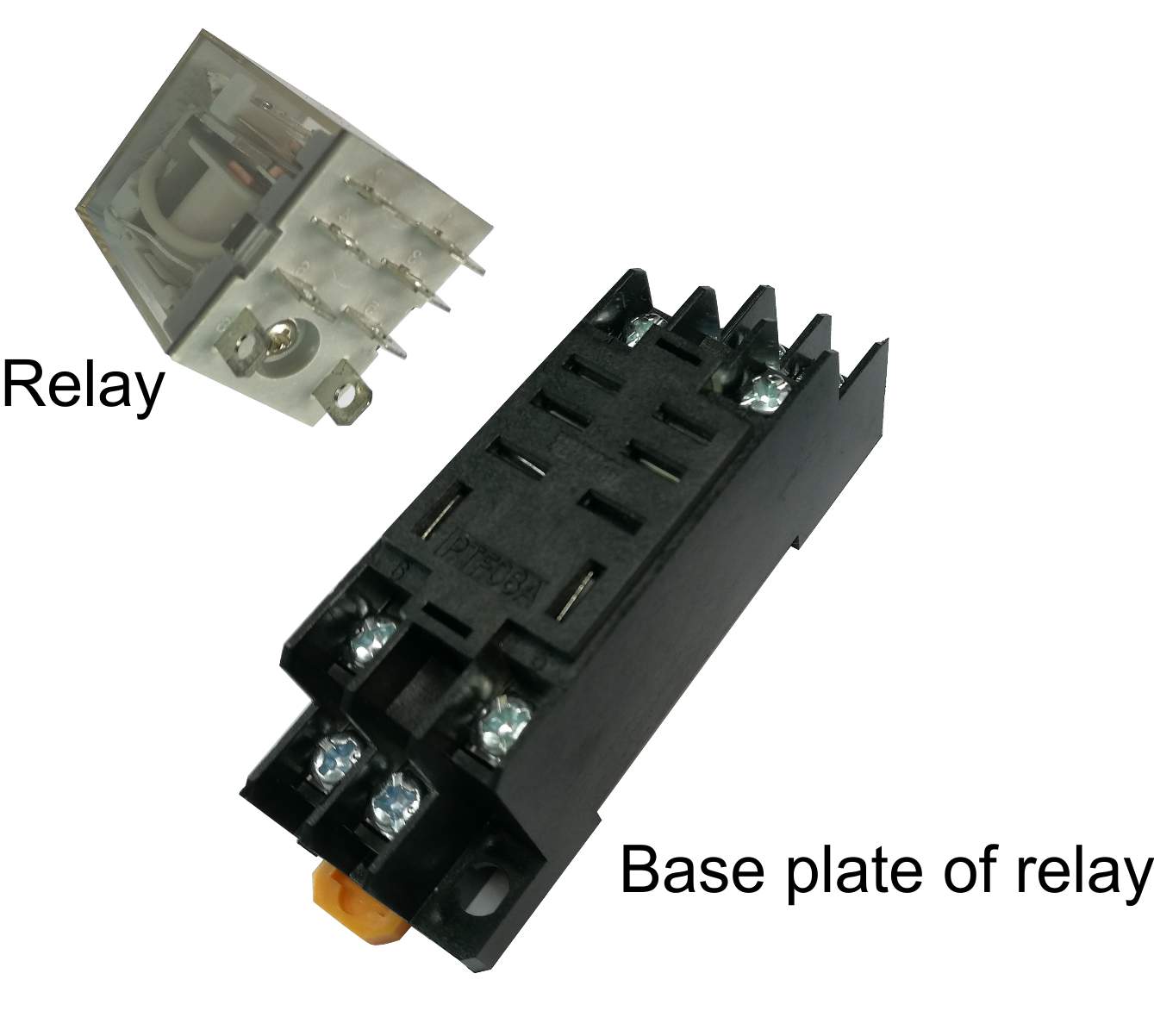

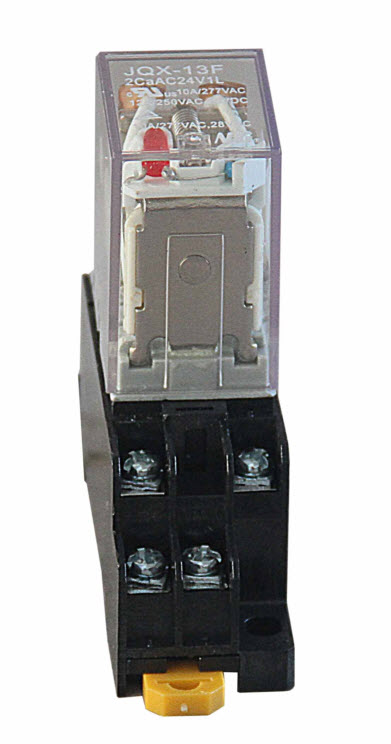

Mechanical Relay with LED and base

The MR Mechanical Relay is a general purpose relay suitable for both low voltage and power switching. It features a low power coil, the 12VDC version requires only 100ma to energize. The DPDT relay is rated at 10A, 120VAC. Each relay has an LED showing the low voltage status.

Product Highlights:

  • Mechanical lifetime of 10^8 operations
  • Switch low and high level loads from 100 mA to 7 A

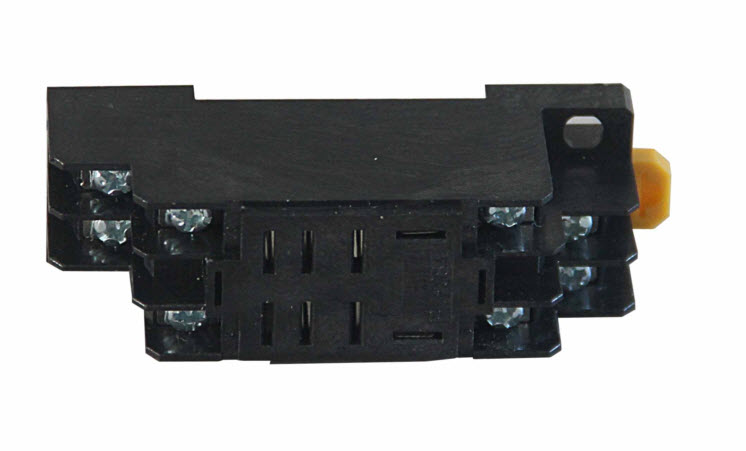

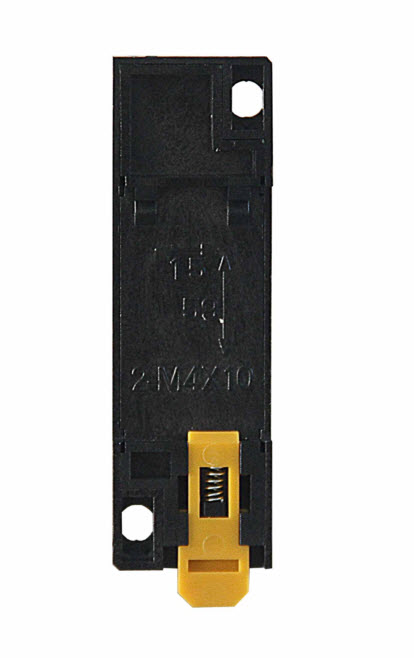

  • Pluggable base is panel mount or din rail
  • Handy status LED shows the coil status
  • UL recognized, file No.: E169380

Share this product

$4.00 - $4.50

Part number: MR Category:

Available Options:


Mechanical Relay with LED and base

  mr3 mr1



Additional information

Weight 0.20 kg
Coil voltage

120VAC, 12VDC, 220VAC, 24VAC
