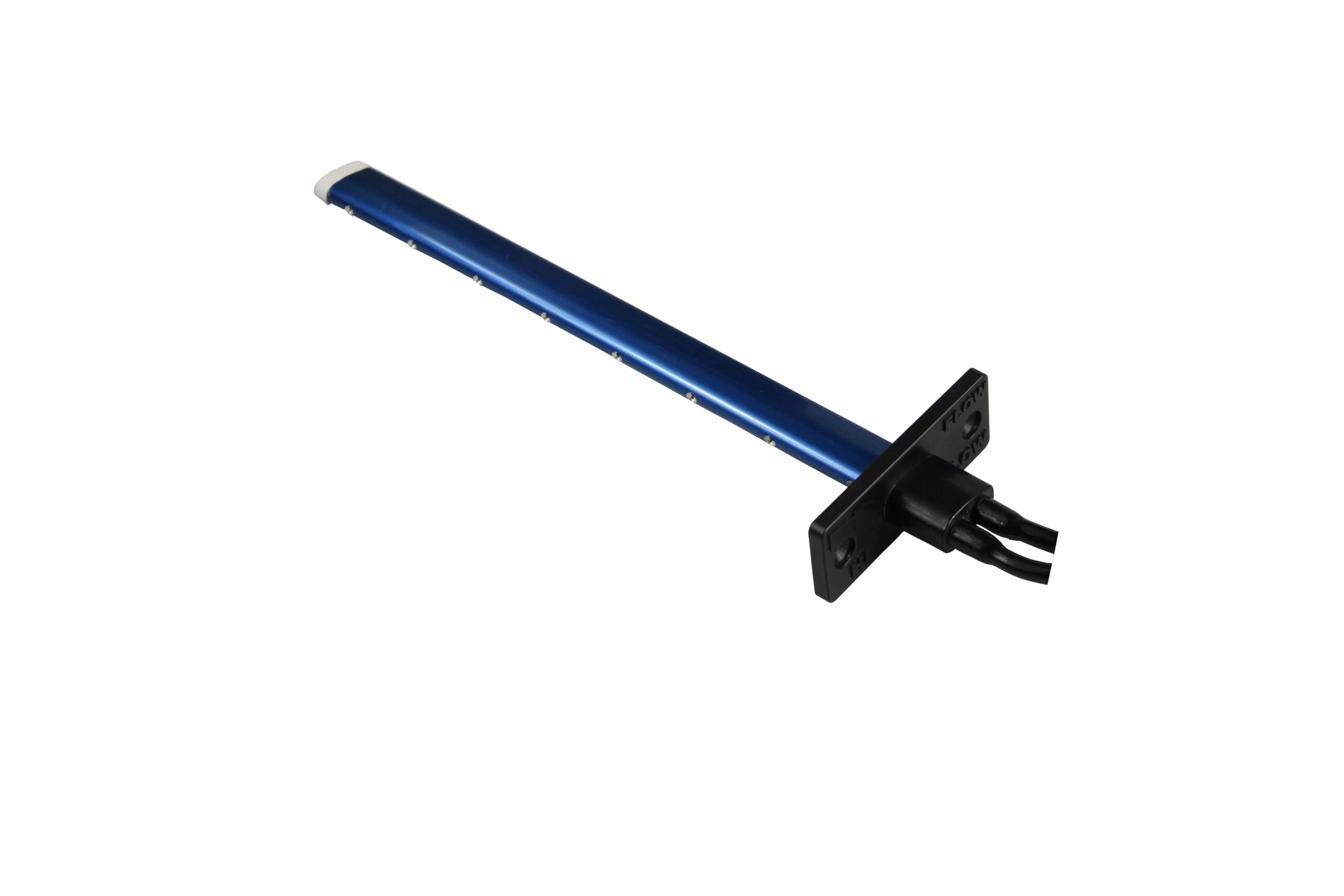

Pitot Tube

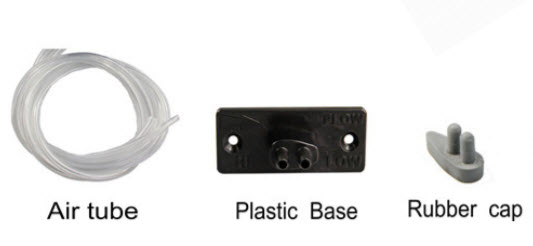

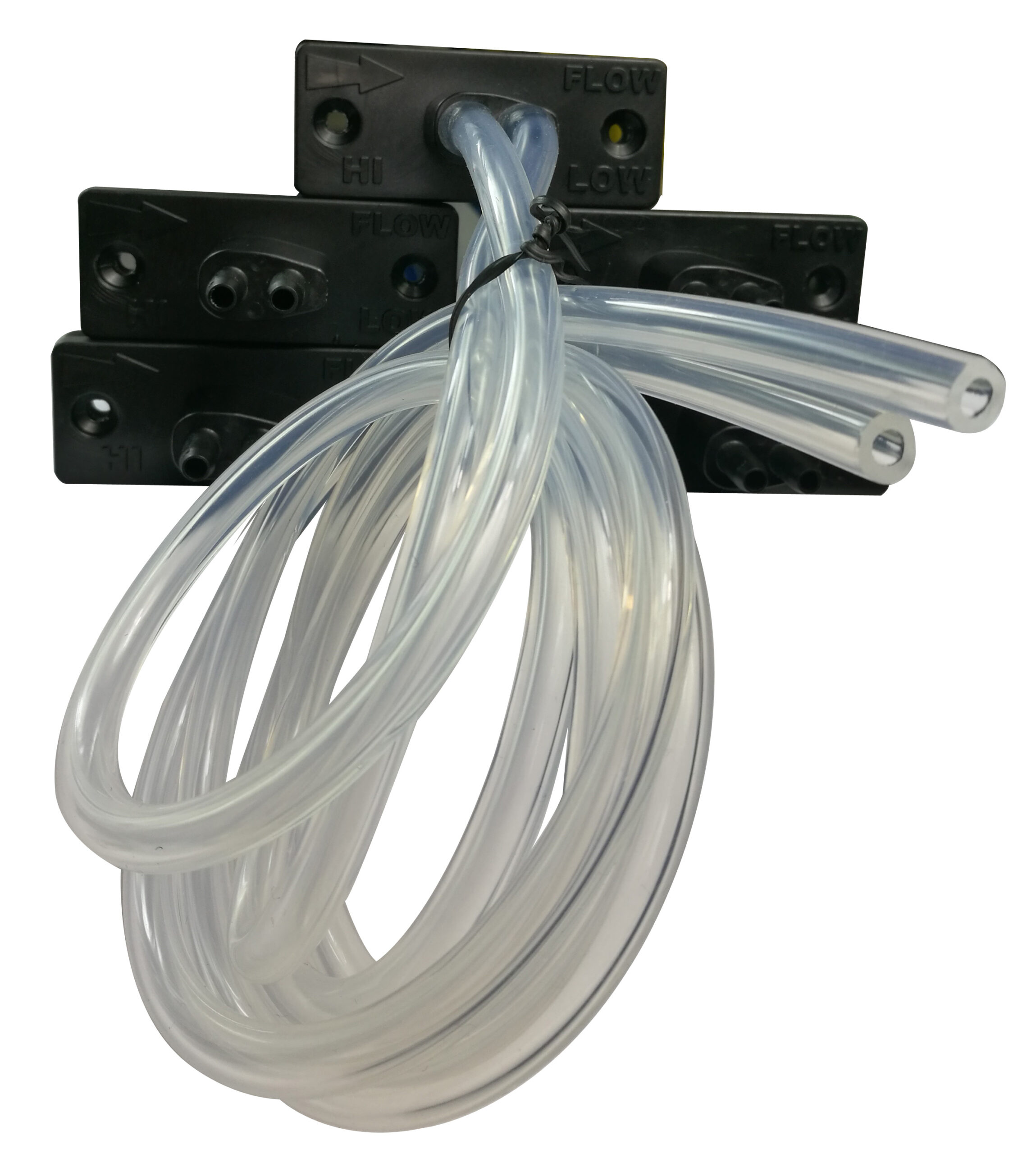

The Pitot Tube is a differential pressure producer suitable for air flow measurement.It includes multiple sensing points to measure total and static pressures. It is easy to install and cost effective.  It offers simple, low cost installation into pipes and ducts, and high energy savings due to its low unrecovered pressure loss. There are no moving parts or sharp edges to wear, so long term accuracy can be maintained.  It contains a lid,connector and two 1 meter length pipes.All Extrusion pipe could be cut on site with a hacksaw,no need a special tool.For example:Buy a 12″ long pipe,and cut to 8″,buy 1m long pipe and cut to the length needed.

Product Highlights:

  • Air Flow Measurement
  • Low Installation Costs
  • Long Term Accuracy
  • Minimal Unrecovered Pressure Loss
  • Mass Flow Measurement

Share this product

$8.50 - $29.50

Part number: N/A Category:

Available Options:

Description

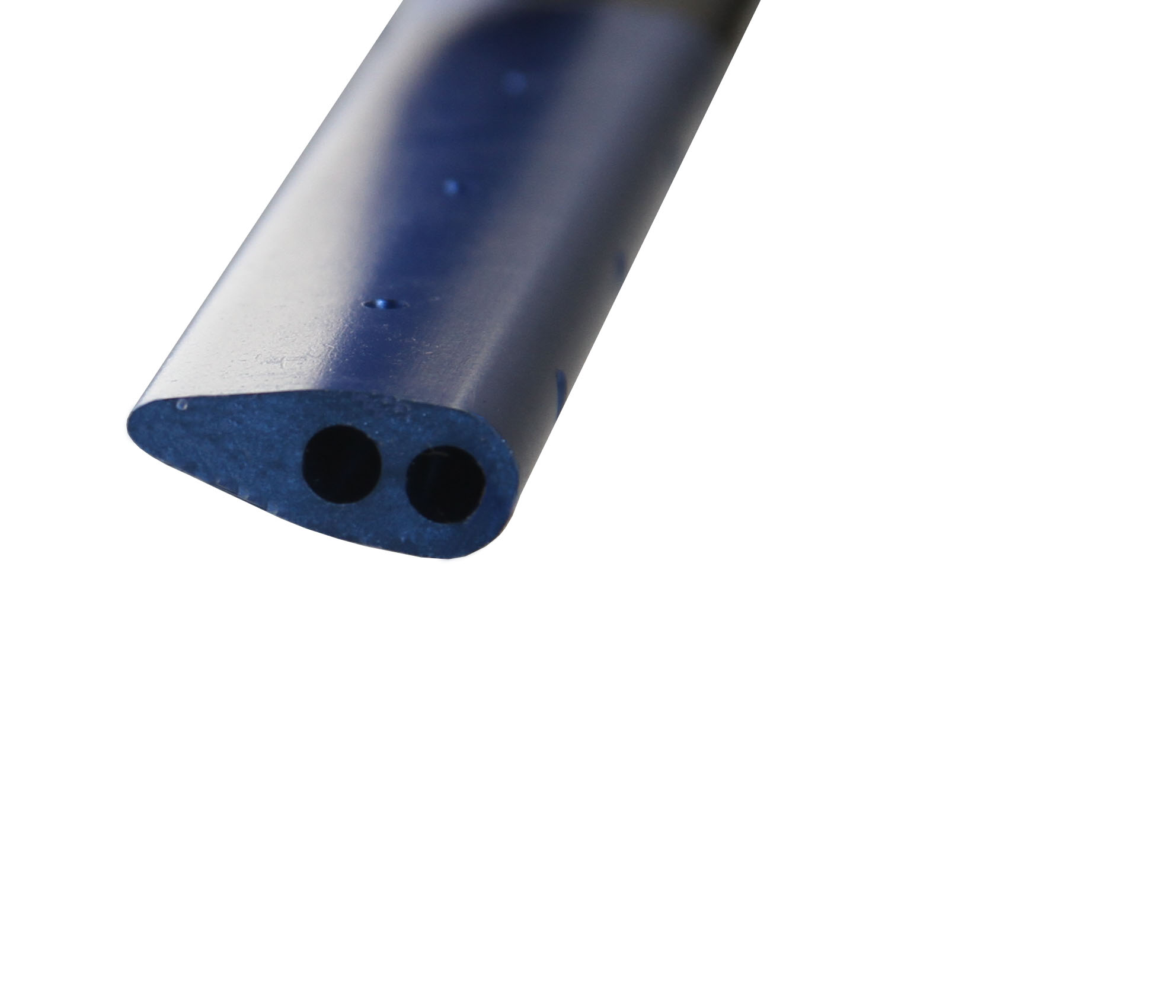

The pitot tube is used for measuring air flow in ducts. It produces a small differential pressure which varies with the velocity of the air. This pitot tube has multiple ports along the length of the pitot which produce an average of the air speed in the duct.

Pitot Tube

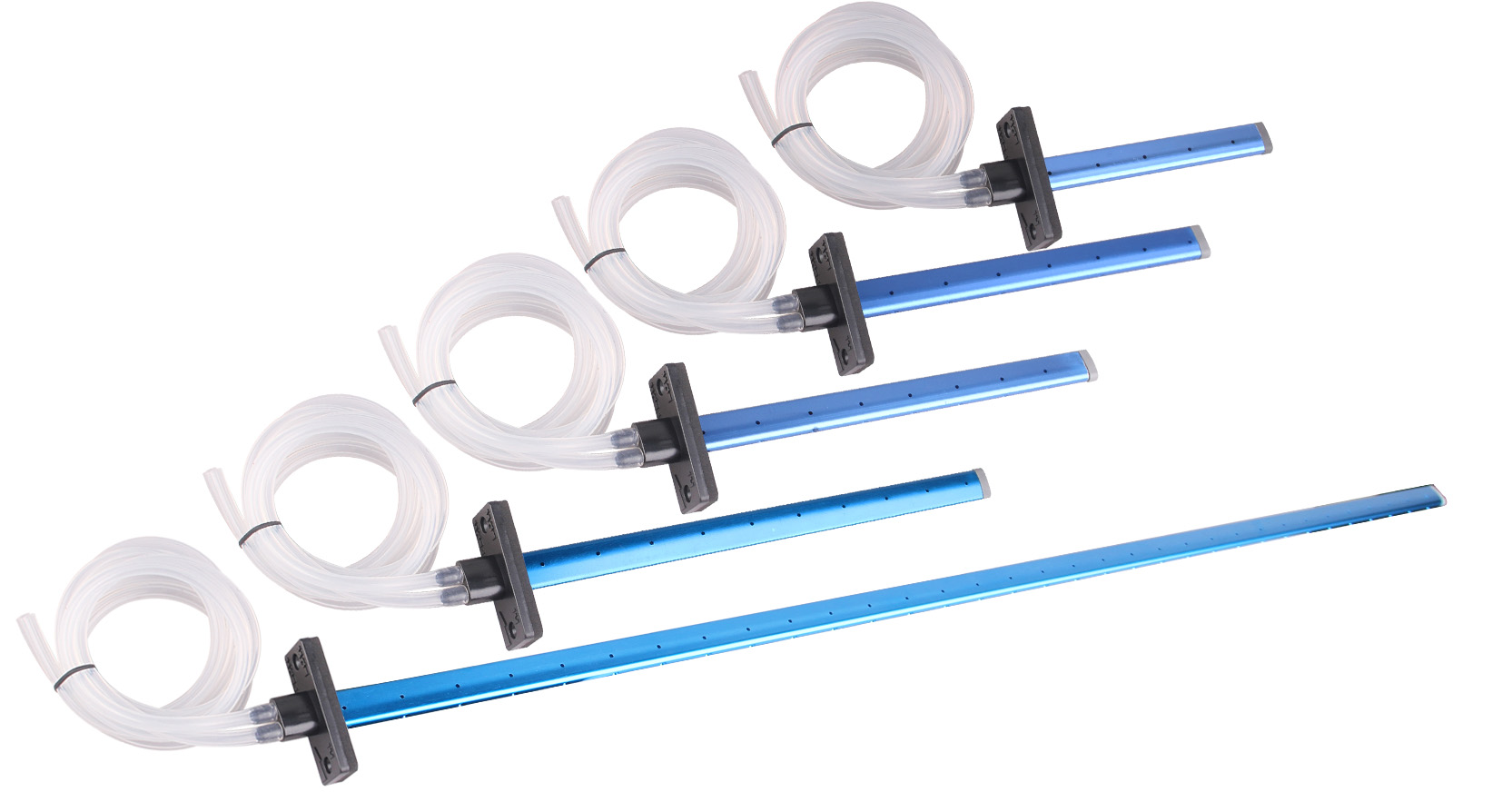

Here is a photo showing 10 units of the long 1 meter length for an OEM client. We can do customizing with these pitot tubes for longer lengths and work up designs for large size averaging air flow stations. Send us an email to discuss

Additional information

Weight N/A
Pitot Insertion length

100mm, 1000mm, 150mm, 200mm, 250mm, 300mm
