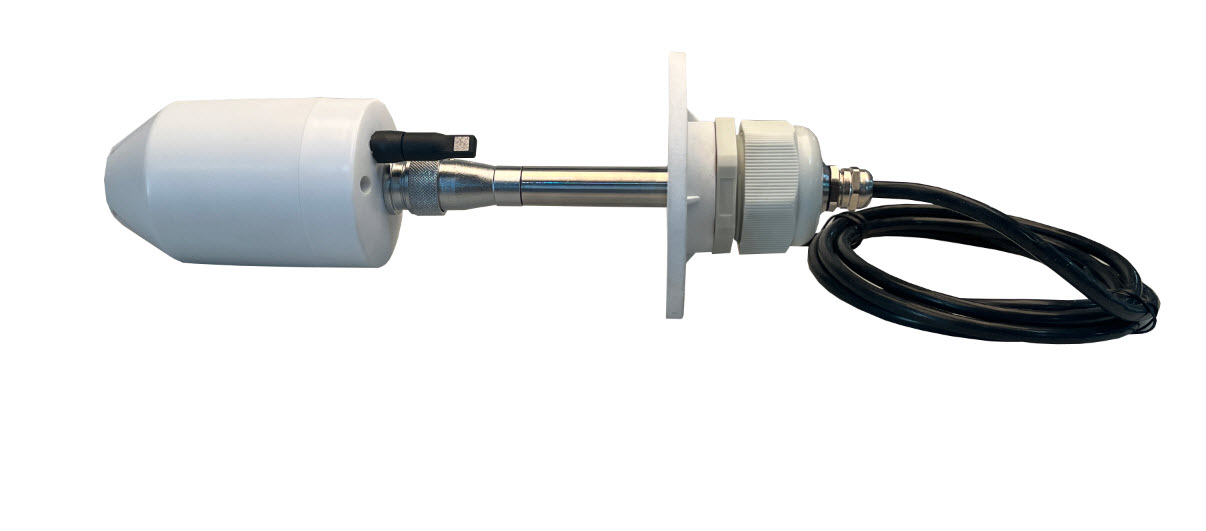

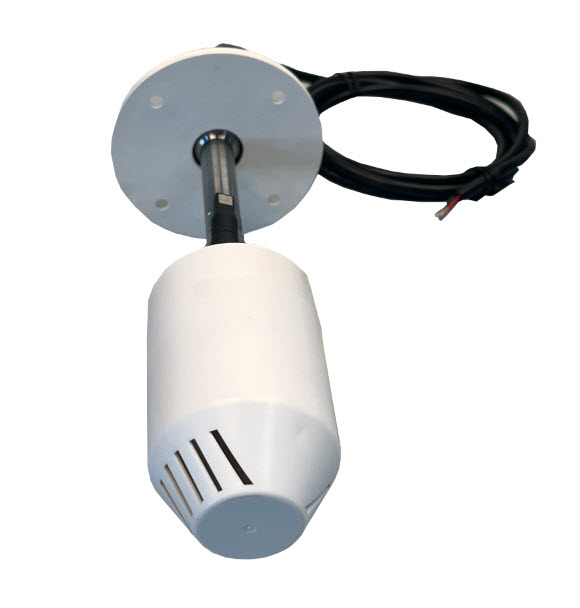

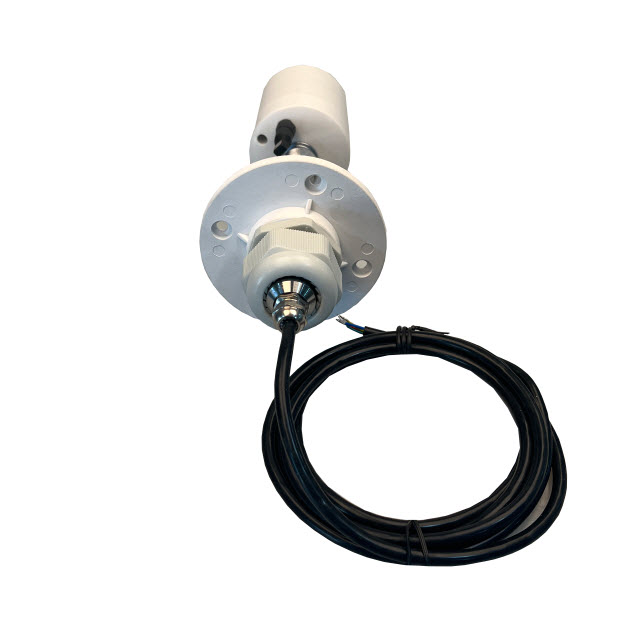

Duct Mount AirLab Air Particle Sensor

Duct Mount Air Lab Sensor with humidity,temperature,CO2,TVOC,PM2.5 and light level sensors

Product Highlights:

  • sensor has a long life fan rated for > 10 years maintenance free.
  • Fast Response : response time less than 10 seconds.
  • Supports ModBus TCP/IP & BACnet IP protocol over WIFI.
  • Supports ModBus RTU & BACnet MSTP protocol over RS485
  • TVOC sensor can detect Glycerin (Vape smoke).
  • The SPS30 dust sensor in the AirLab is MCERTS certified to DIN EN 15267 air quality standard.
  • Advanced Measurement Principle: Utilizes laser scattering and innovativeconfamination-resistance technology for precise and reliable measurements
  • Long-Term Stability: Designed to provide accurate readings throughout its lifetime ofmore than ten years
  • Wide Particle Size Range: Capable of measuring PM1.0, PM2.5, PM4, and PM10particles, making it versatile for various applications
  • High-Quality Components: Built with high-quality and long-lasting components toensure consistent performance

Share this product

$161.00 - $218.00

Part number: DUCTAIR-TVOC Category:

Available Options:

Description

Wiring Diagram

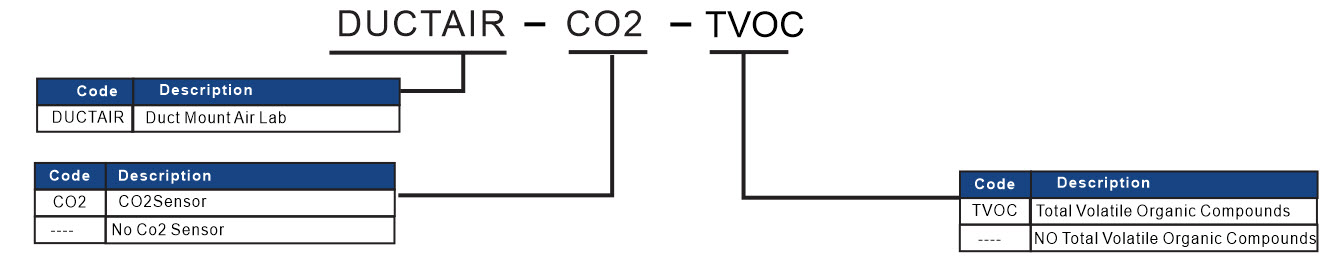

Part Number Scheme

Additional information

Weight 0.5 kg
C02

C02, No CO2

TVOC

No TVOC, TVOC

Wifi

RS485 + wifi, RS485 only
