AirLab, the All-in-one Indoor Air Quality Laboratory

The AirLab sensor measures air particles, CO₂, temperature, humidity, TVOC, and occupancy to ensure clean, comfortable indoor environments. It integrates easily with building automation systems and supports both WiFi (BACnet IP/Modbus TCP) and RS485 (BACnet MSTP/Modbus RTU) communication.

Product Highlights:

Particle Sensor uses the laser scatter method to accurately measure both particle density and count in five bin sizes from 0.3um to 10um.
Dust sensor has a long life fan rated for > 10 years maintenance free
Fast Response : response time less than 10 seconds.

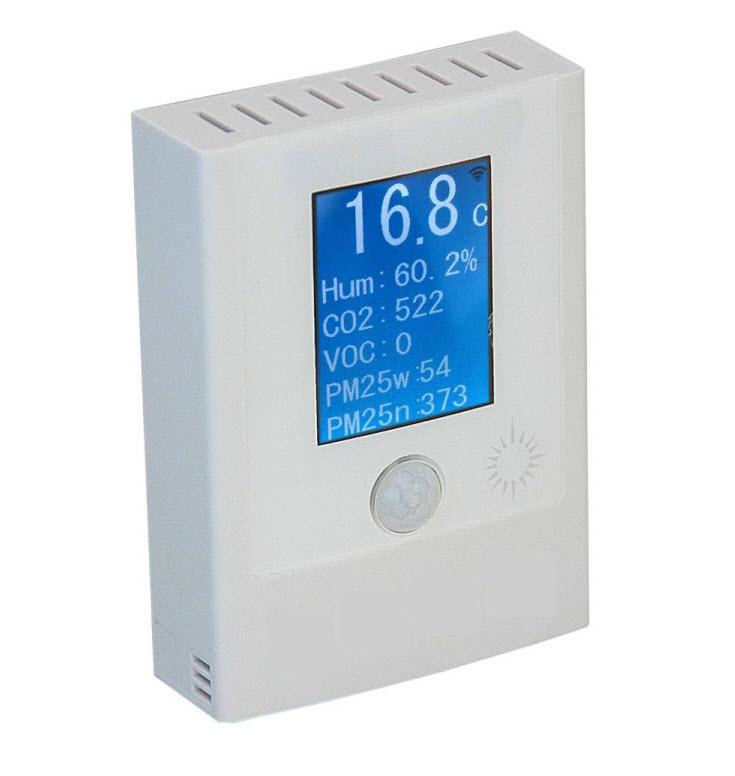

Color LCD display shows air quality index and other parameters, configurable.
Supports ModBus TCP/IP & BACnet IP protocol over WIFI.
Supports ModBus RTU & BACnet MSTP protocol over RS485
TVOC sensor can detect Glycerin (Vape smoke).
The SPS30 dust sensor in the AirLab is MCERTS certified to DIN EN 15267 air quality standard.
components toensure consistent performance
High resolution: Particle Sensor detects both weight and count of particles in five bin sizes: 0.5, 1.0, 2.5, 4 and 10 um
Air Quality Index for USA, China and custom user adjusted tables are built in.
RS485 Baudrate:9600,19200,38400,57600,115200,76800

Brochure PDF Software Certs Software Manual Technical doc

$64.00 - $166.00

Add to Wishlist

Part number: N/A Category: C02, Hum, AQ

Description

Indoor Air Quality Laboratory: Advanced Monitoring with Air lab Sensors

The Air lab, Indoor Air Quality Laboratory sensor is an all in one solution for monitoring the indoor air quality and many other parameters of the indoor environment. Additionally, they are widely used in commercial buildings, airports, and schools.

Moreover, the clearly explained BACnet MS/TP and Modbus RTU communications make it easy for system users to connect to existing building systems. Furthermore, the device includes RS485 by default, which can be set up for BACnet MSTP or Modbus RTU communication.

There is also the Air lab WIFI model which supports communication over the Wife Lan using both BACnet IP or Modbus IP protocols.

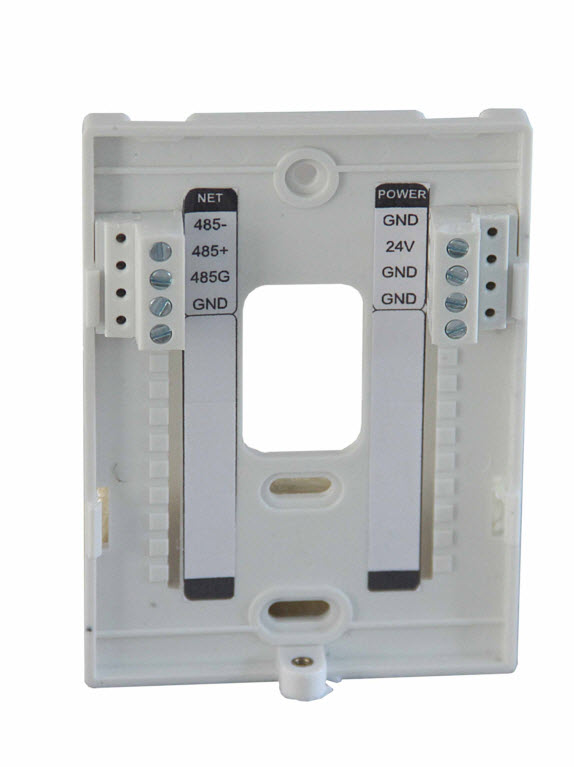

Wiring Diagram

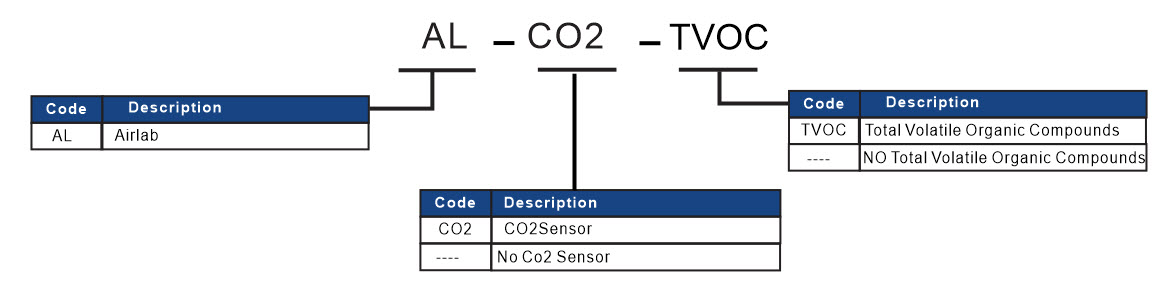

Part Number Scheme

T3000 Connection

Blank LCD Feature:

Otherwise, you can set the display to a blank white screen to prevent people from seeing air quality data.

In conclusion, the Air lab sensor delivers a reliable and comprehensive solution for indoor air quality monitoring across diverse environments. With flexible communication options and easy integration, Air Lab delivers accurate and reliable indoor air data. As a result, it enhances comfort and helps maintain a cleaner, better indoor environment.

Additional information

Weight	N/A
C02	C02, No CO2
TVOC	No TVOC, TVOC
Wifi	RS485 + wifi, RS485 + Zigbee, RS485 only, Wifi
