Description

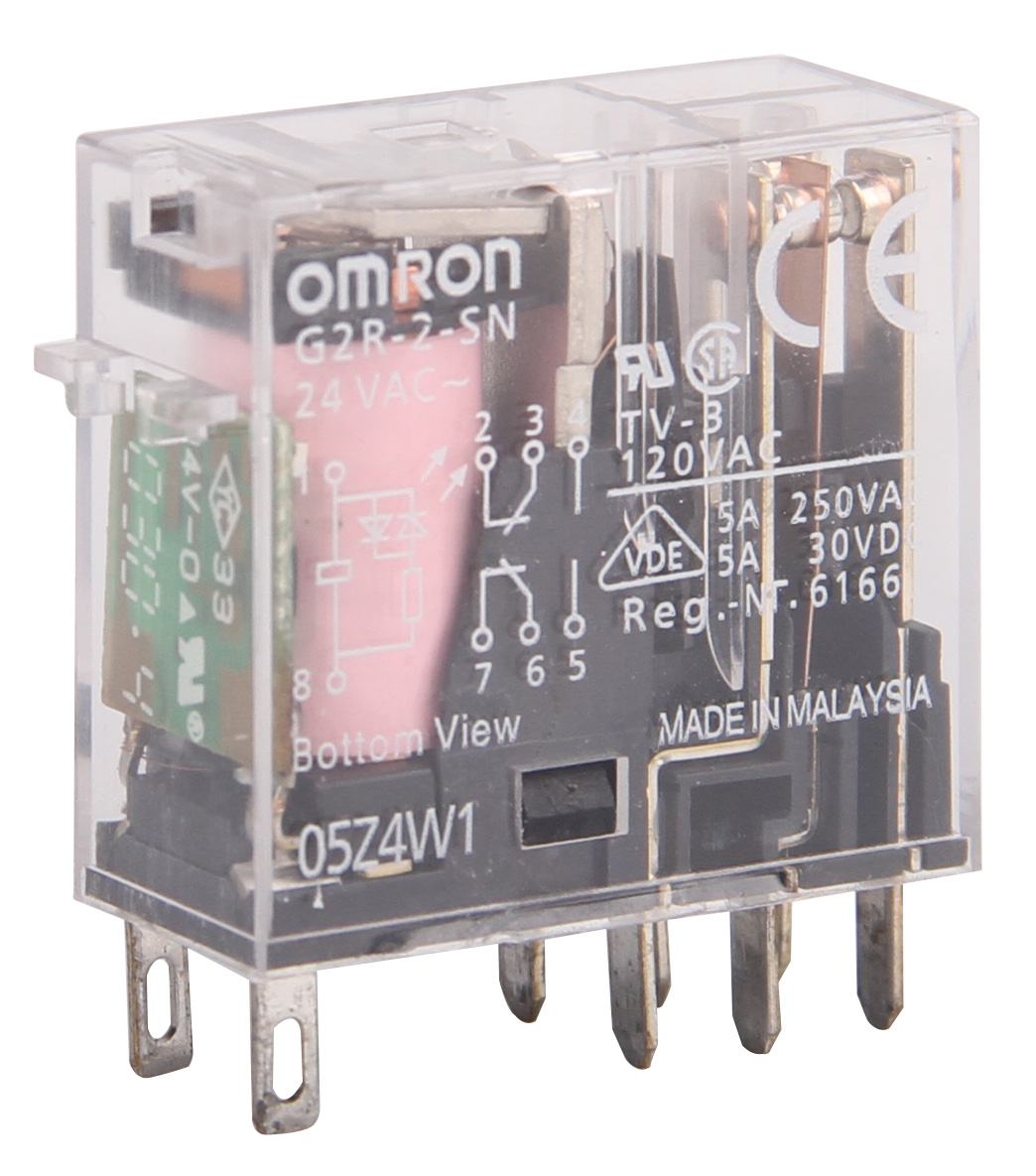

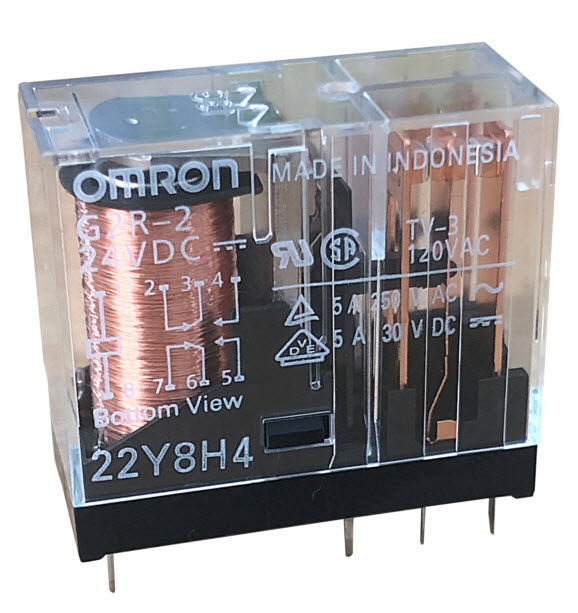

Omron G2R Relay
Dimension：
unit：mm
Part Number Scheme：

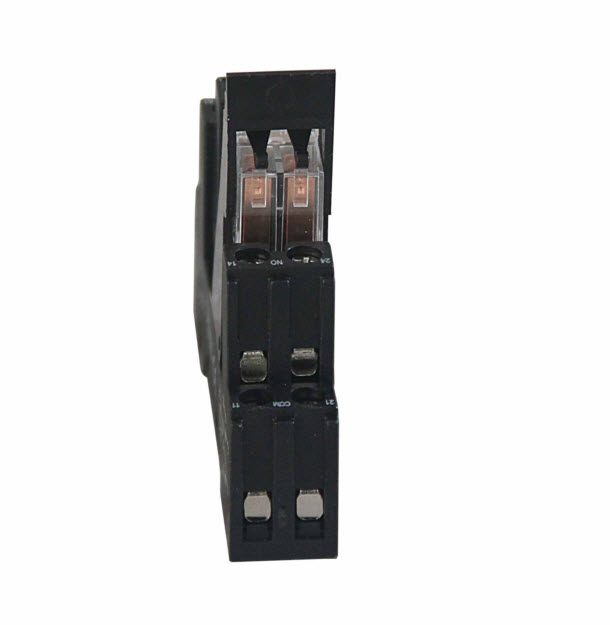

Omron G2R Relay

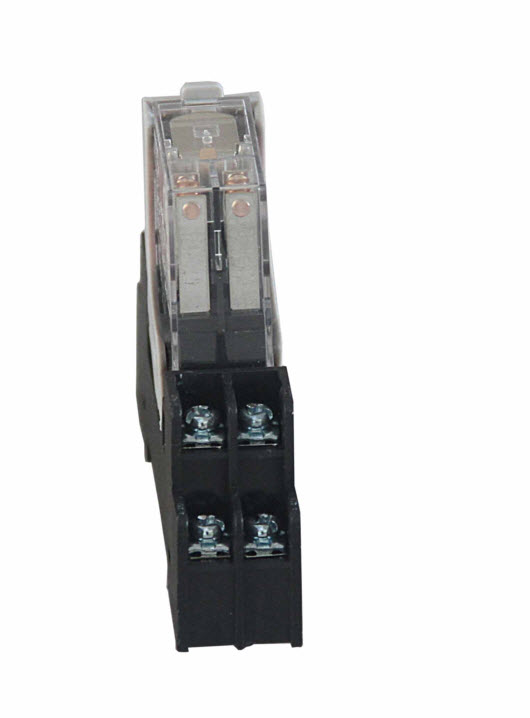

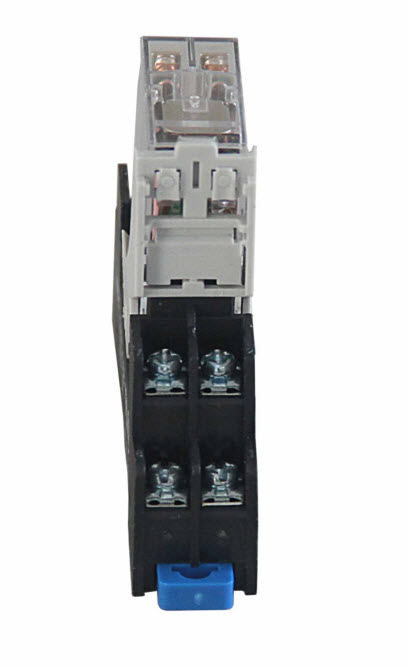

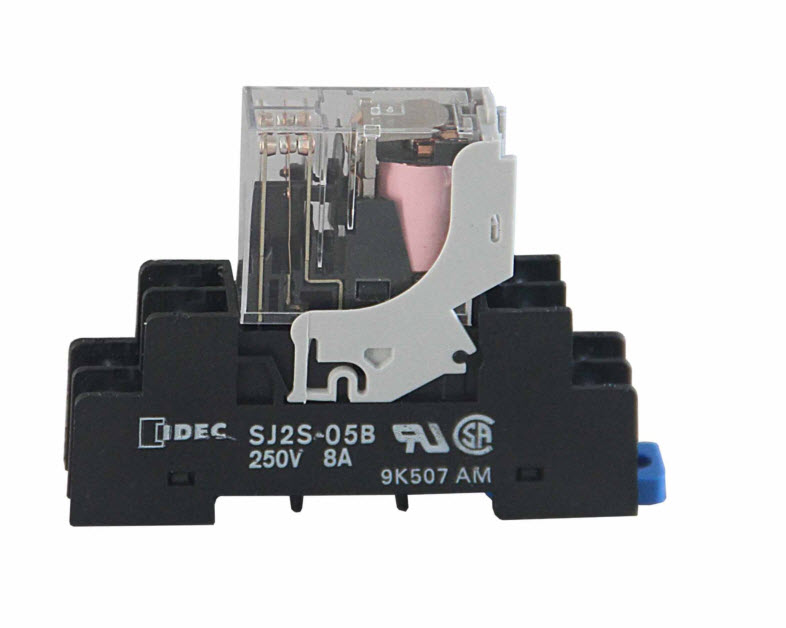

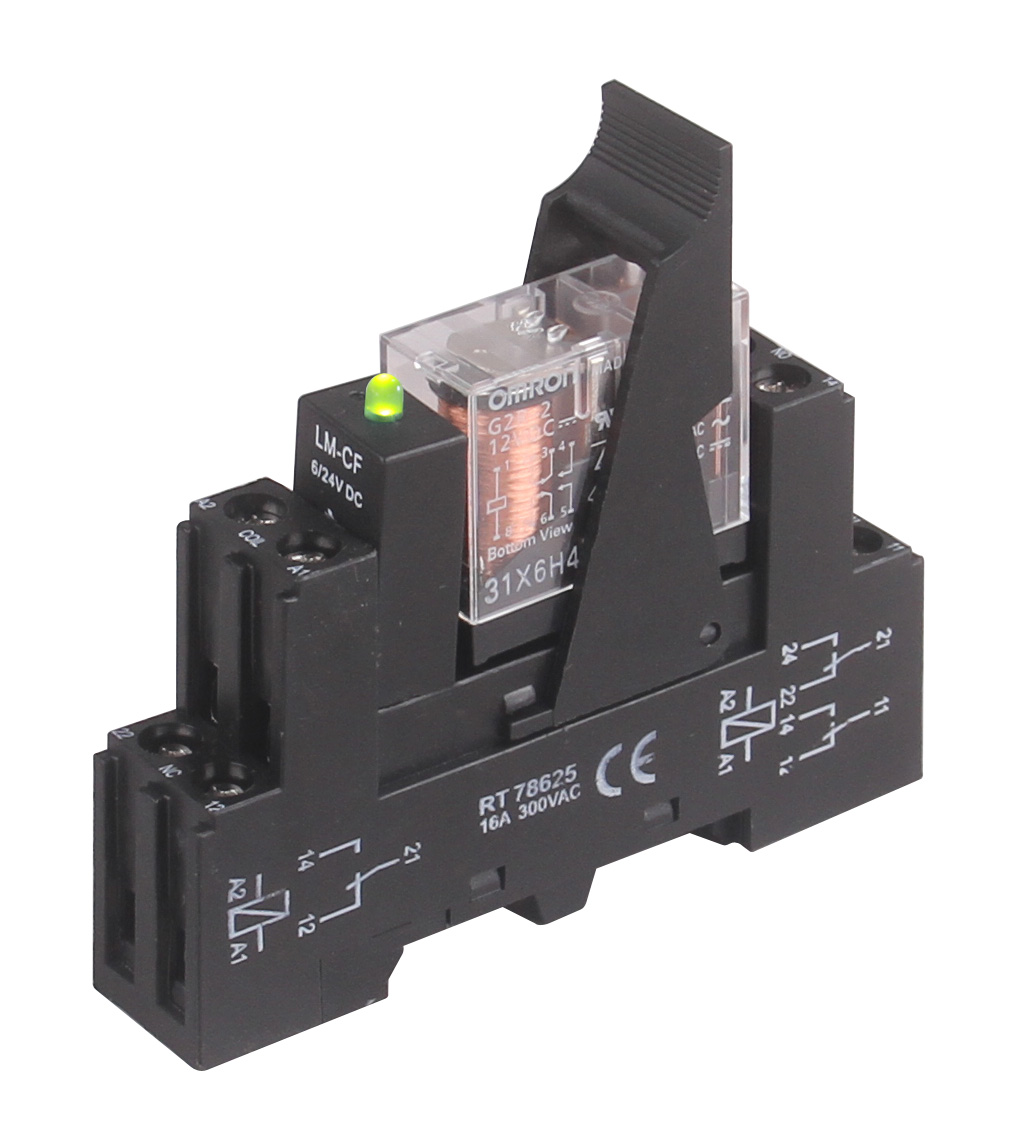

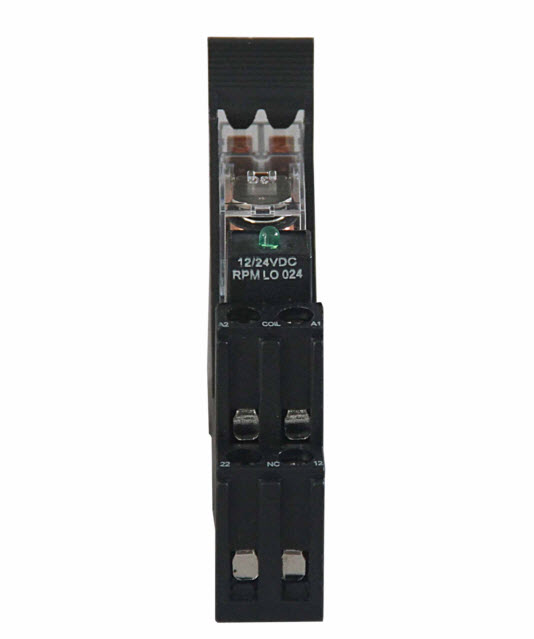

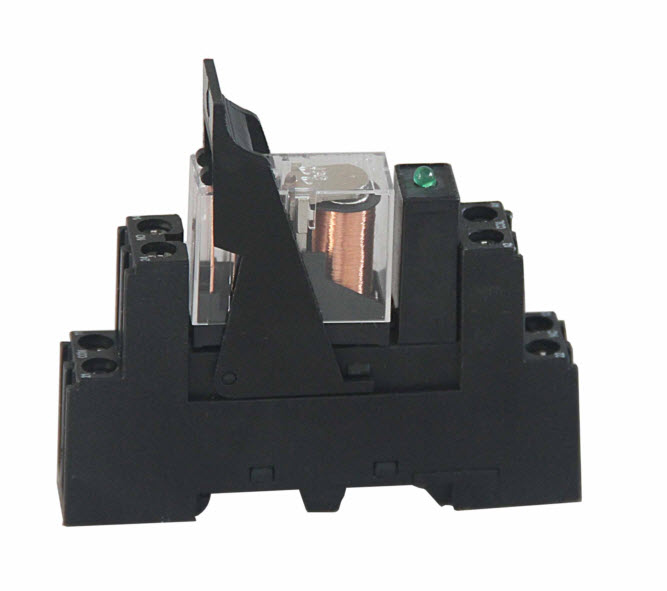

Omron General-Purpose Relay available in SPDT and DPDT with either AC or DC coils. It comes with a pluggable base for easy din rail mounting and fast swapping of relays in the field. The narrow width allows for high density i/o in controls cabinets. The LED indicator on the low voltage coil provides handy indication of the relay status.All of the prices below are for the relay with LED option and the din rail base included.
Product Highlights:
- Energy efficient coil, only 0.36 W power required
- High surge resistance: 10,000 V min. between coil and contacts
- UL File No.E41643; CSA File No.LR31928,CE listing
- Pluggable socket included in the pricing
- Vibration and shock resistant
- LED status indicator
- Current draw:31.6ma@12V DC;71.4ma@24V AC
- Current Rating, G2R Relay 1-pole 12VDC/10A 24VAC/10A; G2R Relay 2-pole 12VDC/5A 24VAC/5A 24VDC/10A
$3.30 - $3.50
Available Options:
Part Number Scheme：
Additional information
| Weight | 0.06 kg |
|---|---|
| Coil voltage | 12VDC, 24VAC, 24VDC |
| Contacts | 1-pole, 2-pole |
