WTS6-E: Strap-On External Temperature Sensor

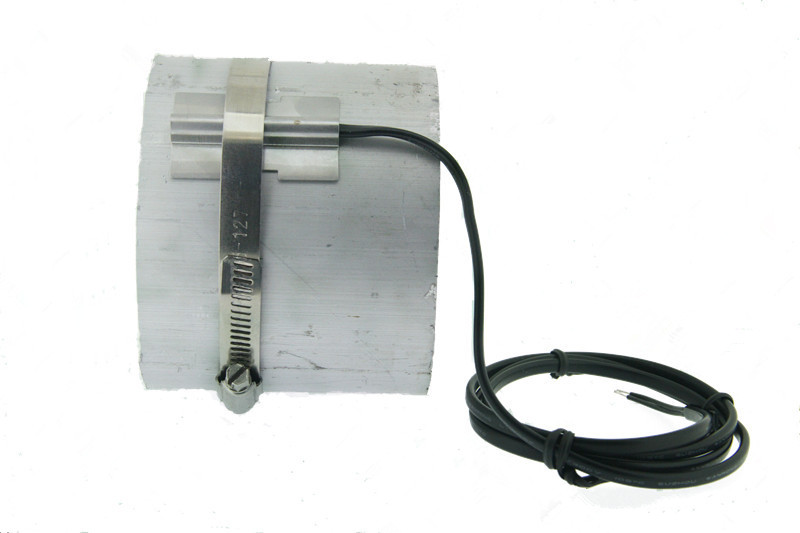

The strap-on temperature sensor is used for sensing the temperature of pipework in heating, ventilation and air conditioning systems.

Product Highlights:

•Thermistors and RTDs in all industry standard ranges.

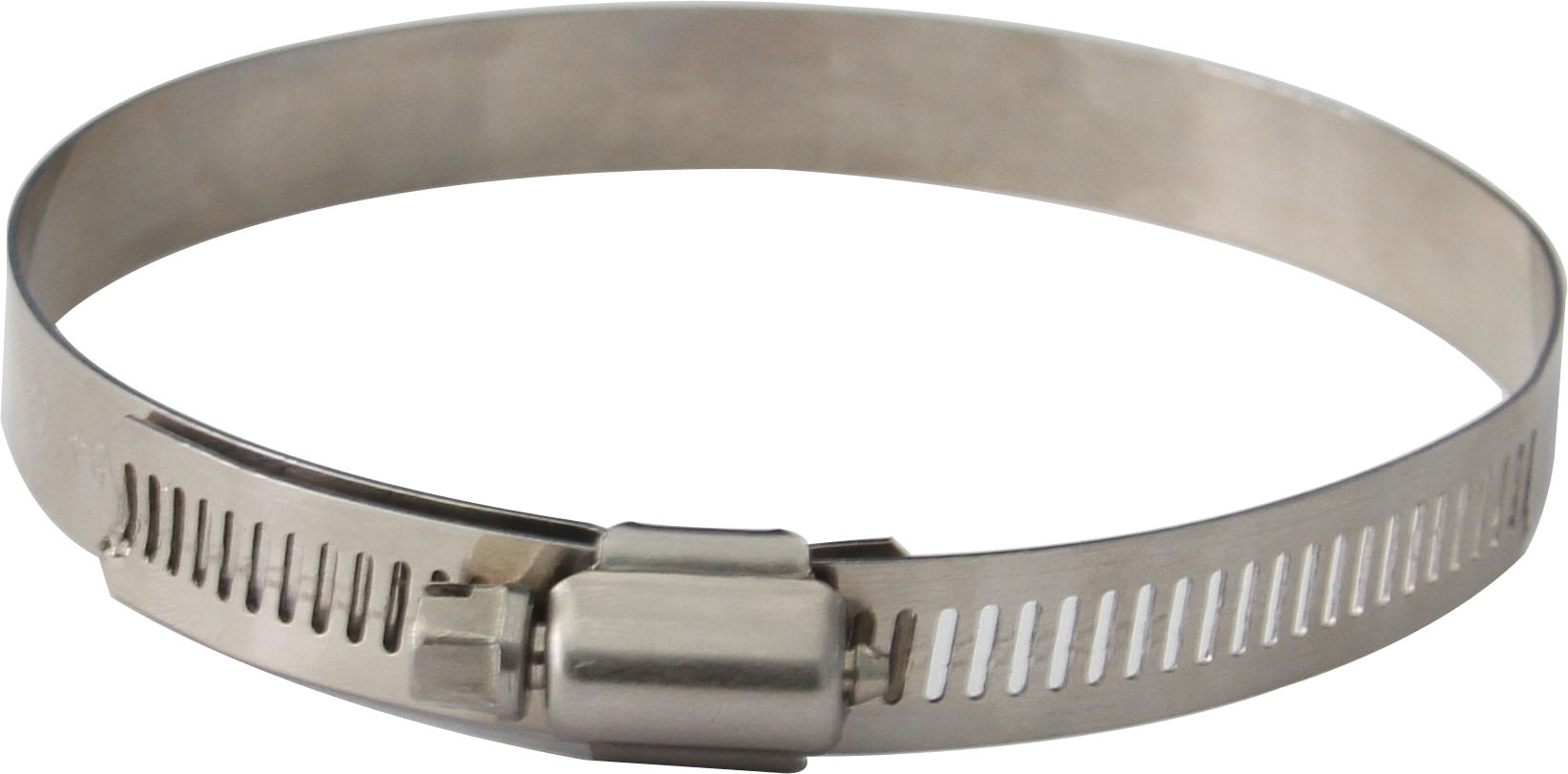

• Included 300 mm adjustable strap-on band,for pipe diameter 90to114mm(3.5”to5″),105to127mm(4″to5″)
• IP 54 protection
• Simple two wire connection
• Economical and simple to install

Share this product

$5.00 - $6.00

Part number: N/A Category:

Available Options:

Thumbnail SKU Description Stock Price Quantity
WTS6-40-M-S2-12 WTS6-40-M-S2-12

Strap On temp sensor, ID 7.95mm X 21.00mm probe,40”Lengh Cable , Pipe Diameter 105 to 127mm(4”to 5”),1k platinum RTD.

268 in stock

$6.00
WTS6-40-M-S2-24 WTS6-40-M-S2-24

Strap On temp sensor, ID 7.95mm X 21.00mm probe,40”Lengh Cable , Pipe Diameter 105 to 127mm(4”to 5”),10k type3 thermistor.

245 in stock

$5.00
WTS6-40-M-S2-7 WTS6-40-M-S2-7

Strap On temp sensor, ID 7.95mm X 21.00mm probe,40”Lengh Cable , Pipe Diameter 105 to 127mm(4”to 5”),10k type2 thermistor.

170 in stock

$5.00
WTS6-40-M-S1-7 WTS6-40-M-S1-7

Strap On temp sensor, ID 7.95mm X 21.00mm probe,40”Lengh Cable , Pipe Diameter 90 to 114mm(3.5”to 5”),10k type2 thermistor.

94 in stock

$5.00
WTS6-40-M-S1-12 WTS6-40-M-S1-12

Strap On temp sensor, ID 7.95mm X 21.00mm probe,40”Lengh Cable,  Pipe Diameter 90 to 114mm(3.5”to 5”),1k platinum RTD.

469 in stock

$6.00
WTS6-40-M-S1-24 WTS6-40-M-S1-24

Strap On temp sensor, ID 7.95mm X 21.00mm probe,40”Lengh Cable , Pipe Diameter 90 to 114mm(3.5”to 5”),10k type3 thermistor.

374 in stock

$5.00

Description

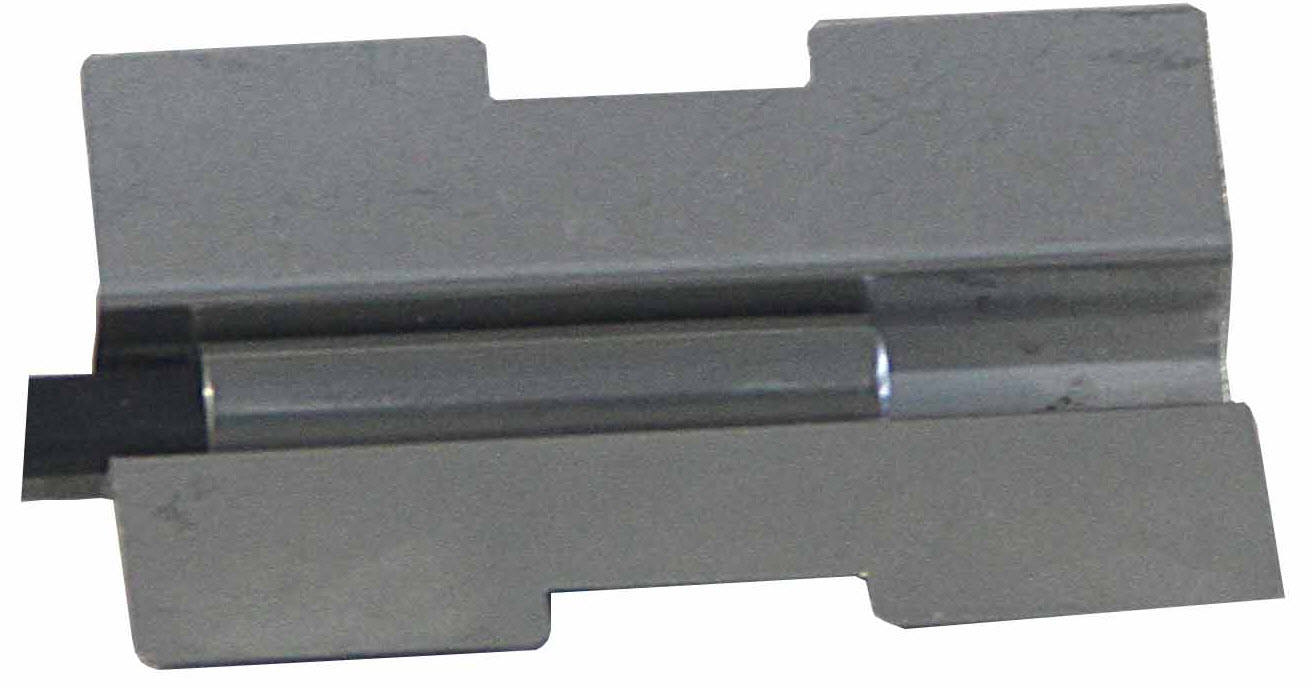

The strap on sensor is available with RTD and PT type passive sensor elements. The sensing element is housed in a 50 mm long probe and is secured to the pipe with an adjustable 300 mm strap-on band, other strap-on lengths on request.ID 5.59mm X 29.97mm probe, 10k type 2 thermistor,Including 300 mm adjustable strap-on band.Dimension:

dimensionPart Number Scheme:
