Description
Structure Graphic：
PS-100/250
PS-1
PS-8
Wiring Diagram：
Part Number Scheme:

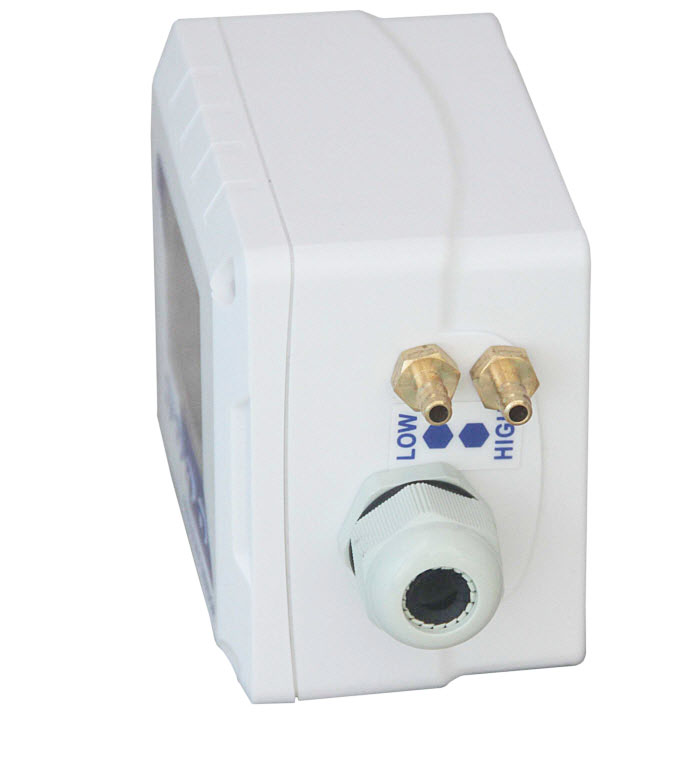

Pressure Sensor
The Pressure Monitor is used to measure differential pressure in the range of +/-1″ wc full scale, +/-8″ wc, 0 ~100 PSI,0~250 PSI.It combines precision, high sensitivity silicon sensing capabilities and the latest ASIC technology to substantially reduce offset errors due to changes in temperature, stability to warm up, long term instability and position sensitivity. BACnet MS/TP and Modbus RTU protocols over RS485,with an ethernet port.
Product Highlights:
- LCD to display the pressure value
- Field-selectable output signal types
- On-board auto-zero function
- Two optional output : PID control type and transducer type
- Analog outputs can be set to 0-5V, 0-10V or 4-20ma
- BACnet MS/TP and Modbus RTU protocols over RS485,with an ethernet port.
- Burst Pressure from 5-250 PSI
- 8 units available: inWC, inHg, mmHg, PSI, atm, Bar, Pa, & kg/cm2
- 2.5% Typical Error over +10°C to +60°C with Auto Zero
- 6.25% Maxmum Error over +10°C to +60°C without Auto Zero
- Jumper selectable outputs
- Baudrates of 9.6k,19.2k, 38.4k, 57.6k, 76.8k and 115.2k
$98.00 - $98.00
Available Options:
PS-100/250
PS-1
PS-8
Wiring Diagram：
Additional information
| Weight | 0.50 kg |
|---|---|
| Pressure range | +/-1" inWC full scale, +/-8" inWC, 0 ~100 PSI, 0~250 PSI |
| Medium | Air or water, Dry air |
| Fitting type | 1/4in Barbed, 1/8NPT |
