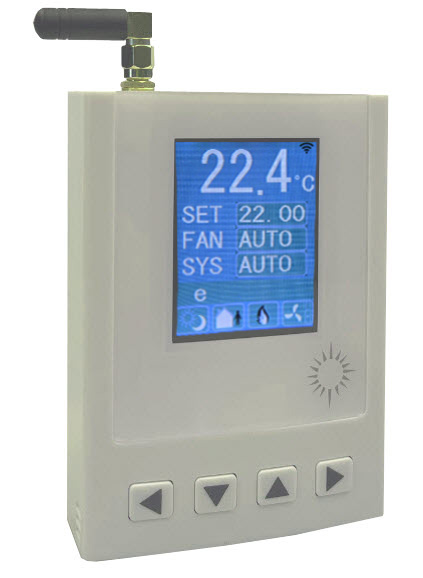

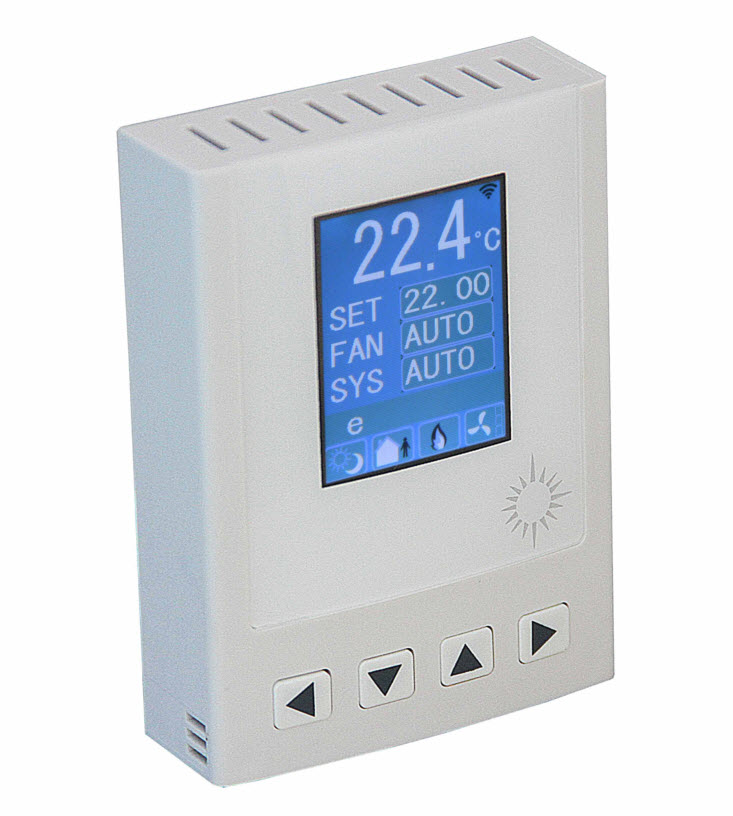

Tstat10 Fully Programmable Thermostat

Product Highlights:

• Software configure the I/O ranges with the free T3000 software or by writing to the registers
with your own software
• Universal I/O can be configured for nearly any sensor, no jumper settings required
• Well documented register list for easy integration with other systems.
• 8 universal inputs for external temperature sensors, contacts, etc.

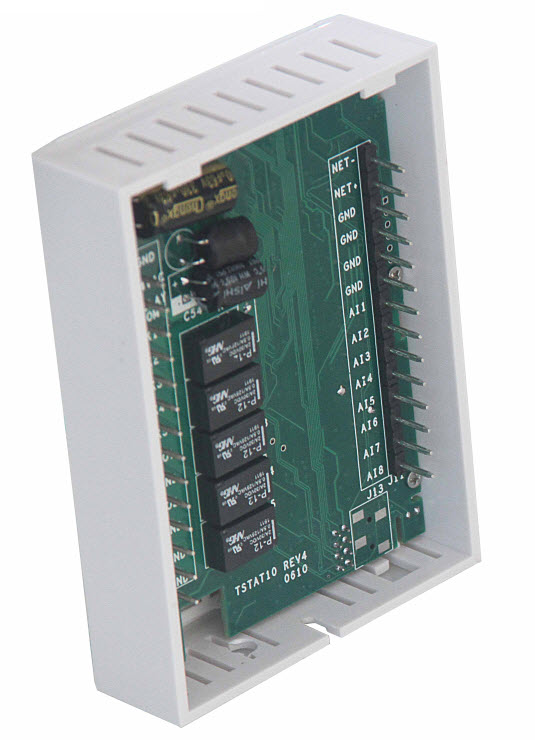

• 5 relay outputs, each rated at 12~24vac, 2 amps
• 2 analog outputs, 0-10V @ 100ma.
• Color LCD display with scroll bar.

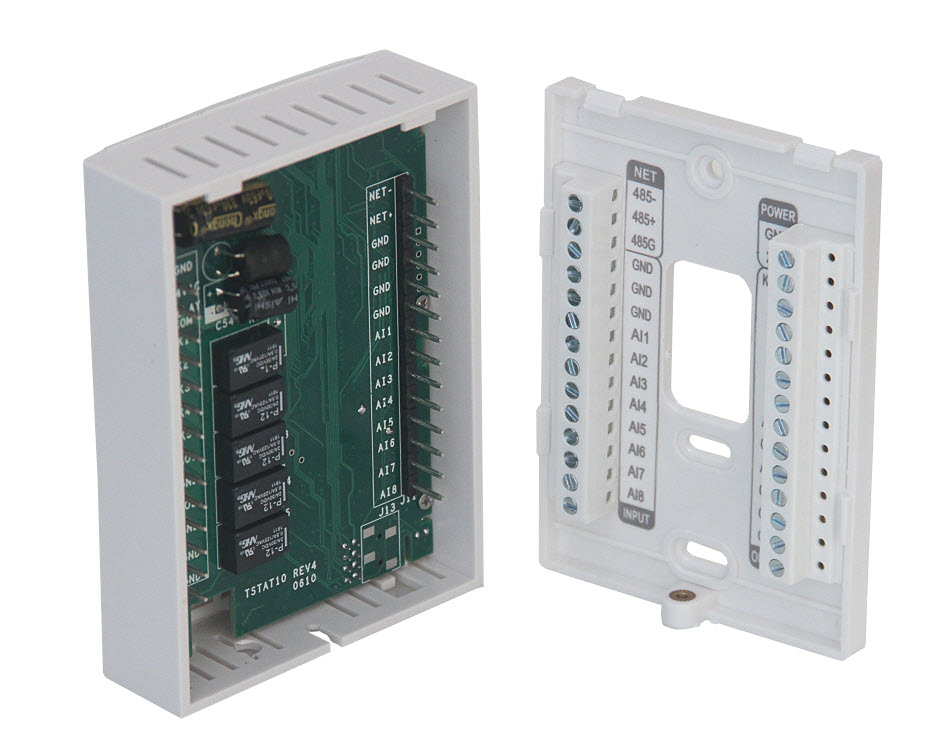

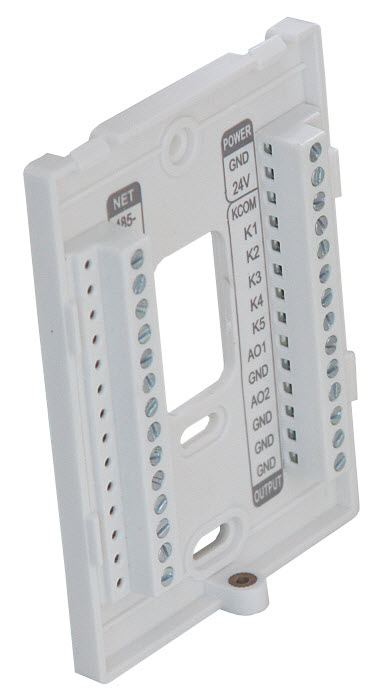

• Each I/O as well as the RS485 connections have a separate screw terminal
• Clock with infinite life supercap battery backup.

• TVOC sensor can detect Glycerin (Vape smoke).

• Supports Modbus RTU and Bacnet protocols simultaneously.

Share this product

$53.00$73.00

Part number: N/A Category:

Available Options:

Description

This full-featured thermostat is designed for cooling and heating systems in residential and commercial buildings. The thermostat can be programmed for use with air handlers, fan coils,VAV, modulating valves and practically any HVAC application. All models support bacnet and modbus protocols which allows easy integration with the big name control systems like Niagara, Siemens, Honeywell, Johnson Controls, Delta, Reliable and Kreuter to name a few. There are five relays and two analog outputs as well as 8 universal inputs. The Tstat10 controllers can be configured and programmed using our free T3000 software. Once the unit is programmed you can save the program file and load it to other controllers. The device will perform its job as part of a networked system or can act as a standalone controller. There is no need for a master controller or connection to any cloud services to function hands free for the  life of the building.

Options are available for occupancy sensor, Wifi, and humidity / enthalpy. Supports Bacnet MSTP and Modbus RTU for the RS485 model. The Wifi version supports Bacnet IP and Modbus IP.

WiringDiagram

Part Num Scheme

Additional information

Weight N/A
C02

C02, No CO2

OCC

NO OCC, OCC

TVOC

No TVOC, TVOC

Wifi

,
